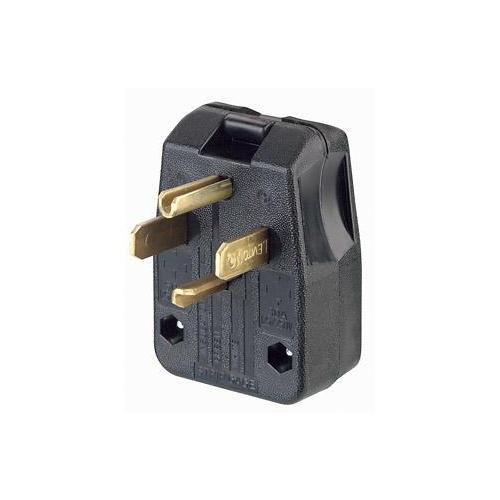

Leviton® 275-T Angled Cable Mount Dual Power Grounding Straight Blade Plug, 125/250 VAC, 30 A, 50 A, 3 Poles, 4 Wires, Black
Leviton® offers a large selection of 15, 20, 30 and 50 A commercial grade straight blade plugs and connectors, available in a wide variety of features. These rugged performers are moisture, chemical and abuse resistant and they are ideal for indoor and outdoor use. Our EPTR rubber backed plugs and connectors stand up to rough use, protecting against dirt and moisture. The deep slotted, backed out terminal screws draw back wire clamps securely over stripped leads for maximum conductivity.
-
BrandLeviton®
-
UPC078477771402
-
Manufacturer Part Number275-T
-
CountryUSA
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeBacked-Out/Deep Slotted
-
MaterialThermoplastic
-
ColorBlack
-
TypeAngled Cable Mount Dual Power Grounding
-
GradeCommercial
-
NEMA RatingNEMA 14-30P/14-50P
-
Voltage Rating125/250 V AC
-
Cord Diameter0.687 to 1.5 in
-
Amperage Rating30 A/50 A
-
Number of Poles3
-
Dimensions3.49 in H x 2.56 in W x 1.44 in D
-
Number of Wires4
-
EnclosureNEMA WD-6
- Tough thermoplastic shell for long life
- Shell and bottom are hinged in front for ease of assembly
- Solid brass blades with color coded terminals simplify wiring
- Each dual combination plug supplied with 30 A blades and flat 50 A blade
- Interchangeable blades eliminate need for stocking different devices
- Built-in rejection feature prevents closure if blades are incorrectly positioned
- Wiring stripping gauge molded into plug cover
- Zinc plated steel assembly screws and solid brass blade and contacts
- 14 to 6 AWG terminal accommodation
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 25MY76 |
| 508489 |
-
Alternative Part Number7321135
-
UNSPSC39121402
-
IDEA Index ID7321135
-
Package DescriptionEACH
-
Standards/ApprovalsANSI C73|NOM 057|NEMA WD6|CSA C22.2 No. 42 File No. LR406|UL 498 File No. E13393|UL94 V-2 Flammability Rating
-
Warranty10 Years Limited
-
Specification Sheet
