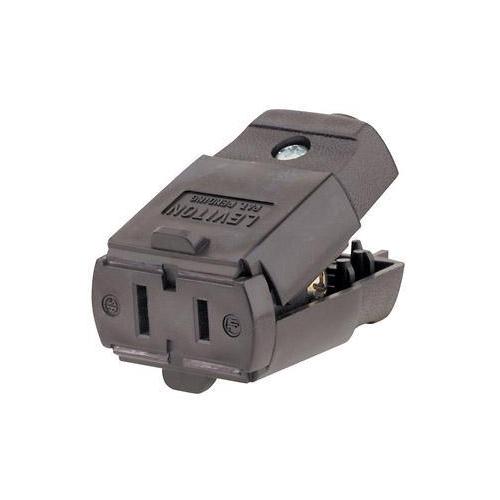

Leviton® 102-P Light Duty Non-Grounding Polarized Straight Blade Connector, 125 V AC, 15 A, 2 Poles, 2 Wires, Brown
Leviton® offers a large selection of 15 and 20 A residential grade straight blade plugs and connectors, available in a wide variety of features. These rugged performers are moisture, chemical and abuse resistant. Our EPTR rubber backed plugs and connectors stand up to rough use, protecting against dirt and moisture. The deep slotted, backed out terminal screws draw back wire clamps securely over stripped leads for maximum conductivity.
-
BrandLeviton®
-
UPC078477031629
-
Manufacturer Part Number102-P
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeScrew
-
MaterialThermoplastic
-
ColorBrown
-
TypeLight Duty Non-Grounding Polarized
-
GradeResidential
-
NEMA RatingNEMA 1-15R/1-15P
-
Voltage Rating125 V AC
-
Cord Diameter1/4 in
-
Amperage Rating15 A
-
Number of Poles2
-
Dimensions2.22 in H x 1.38 in W x 0.81 in D
-
Number of Wires2
- Triple drive head screws standard, Philips® and Robertson
- NEMA configuration number and rating molded on face of device for easy identification
- Rubber body is dirt and moisture resistant
- Husk and module keyed for easy alignment during wiring
- Built-in cord grip adjusts automatically for use with 18/3 AWG through 12/3 AWG cords
- Motor base inlet accepts 10 AWG maximum copper or copper clad wire
- Brass plug blades and connector contacts for maximum conductivity
- Zinc plated steel assembly screws
- 20 to 16 AWG terminal accommodation
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 25MK36 |
-
Alternative Part Number7324166
-
UNSPSC39121402
-
IDEA Index ID7324166
-
Package DescriptionEACH
-
Standards/ApprovalsNOM 057|UL File No. E13393|CSA Certified|UL94 V-2 Flammability Rating
-
Warranty2 years Limited
-
Specification Sheet
-
Owners/User Manual
