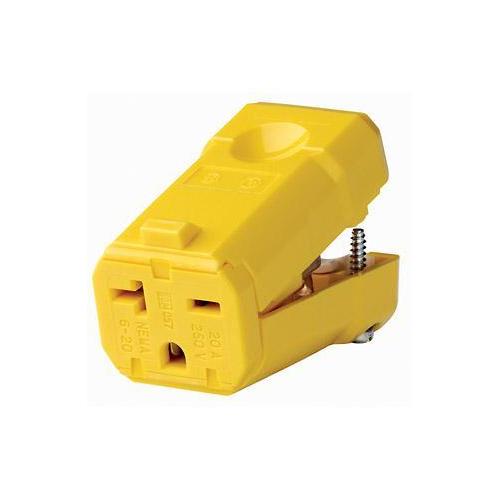

Leviton® 5459-VY Grounding Hinged Straight Blade Connector, 250 V AC, 20 A, 2 Poles, 3 Wires, Yellow
When it comes to the demanding nature of todays commercial and industrial electrical environments, ruggedness and ease of installation are the features you look for first in any line of plugs and connectors. Leviton® Python® straight blade plugs and connectors hold up under the most exacting requirements, the toughest conditions, the roughest handling. Python® exceptional design features meet your needs for a quick, easy-to-wire plug and connector system, a must in todays faced paced world where lost minutes on a job can translate into lost profits.
-
BrandLeviton®
-
UPC078477055137
-
Manufacturer Part Number5459-VY
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeThreaded
-
MaterialNylon
-
ColorYellow
-
TypeGrounding Hinged
-
GradeIndustrial
-
NEMA RatingNEMA 6-20R
-
Voltage Rating250 V AC
-
Cord Diameter0.245 to 0.7 in
-
Amperage Rating20 A
-
Number of Poles2
-
Dimensions1.41 in L x 1.23 in W x 2.5 in H
-
Number of Wires3
- Tough high impact body
- Hinged design delivers fast, easy installation and assembly
- Triple drive screws for easy wiring standard, Philips® and Robertson
- 18-3 SVT to 10-3 ST (0.245 to 0.7 in) wide cord clamp range
- 2000 VAC dielectric strength
- Certified for current interrupting at full rated current
- Thermoplastic back cover
- Nylon cord clamp, wire module and clamp insert
- Solid brass blades/contacts
- Brass screws
- Zinc plated steel assembly screws
- 18 to 10 AWG terminal accommodation
- Features hinged design for fast, easy, installation and assembly
- Wide cord clamp range, 18-3 SVT-10-3 ST (0.245 to 0.7 in)
- Clear thermoplastic back cover for easy visual inspection of wiring
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 25KV85 |
-
Alternative Part Number7333138
-
UNSPSC39121421
-
IDEA Index ID7333138
-
Package DescriptionEACH
-
Standards/ApprovalsANSI C-73|NOM 057|NEMA WD-1/WD-6|CSA C22.2 No. 42 File No. LR406|UL 498 File No. E13399|UL94 V-2 Flammability Rating
-
WarrantyLifetime
-
RoHS
