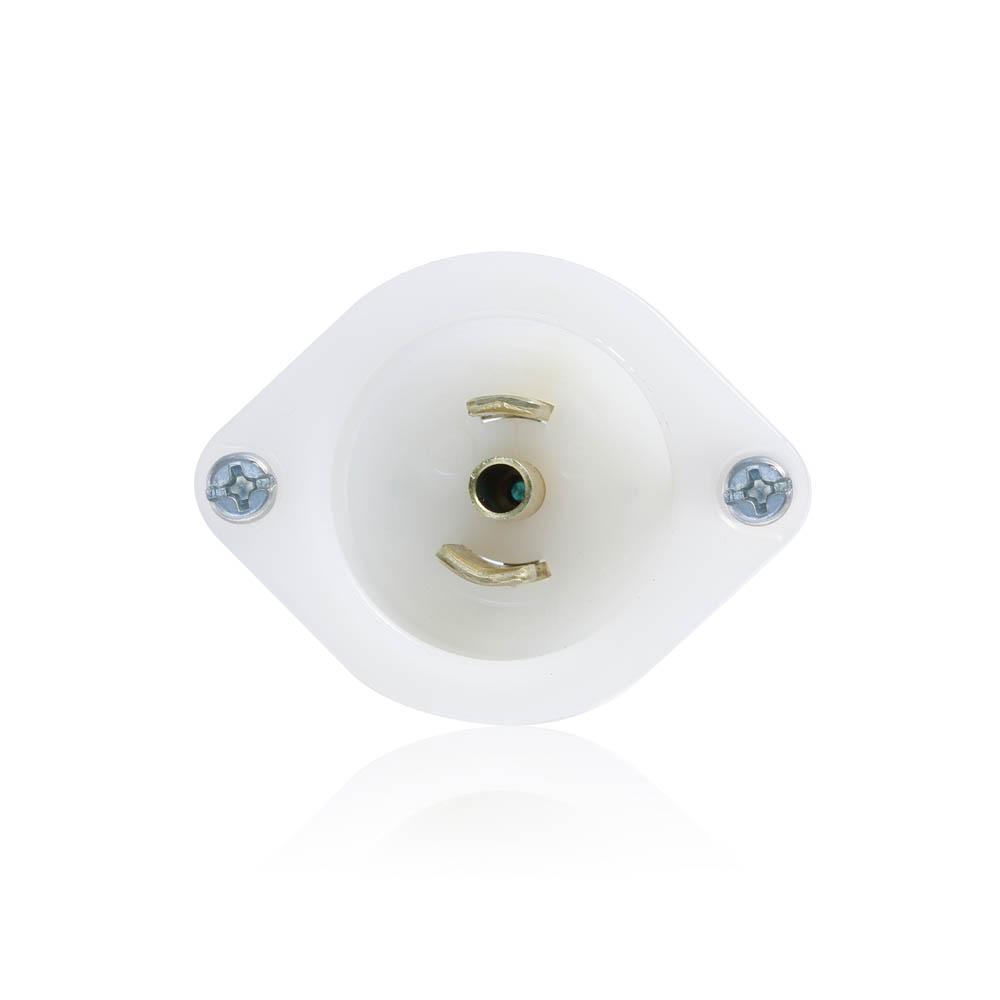

LEVITON 15-AMP MIDGET LOCKING FLANGE INLET LEV ML-2-PB
Leviton® black and white midget line of industrial grade locking blade plugs and connectors are feature rugged construction that resists impact, sunlight, chemicals and rough use. All contacts are solid one piece construction for superior conductivity. The ergonomic, fluted body design with radial gripping edge is ideal for gripping and pulling. The unique cord clamp accepts a wide range of cord sizes, providing a secure grip without damaging the cord. And, they are backed by a limited lifetime warranty.
-
BrandLeviton®
-
UPC078477987209
-
Manufacturer Part NumberML2-PB
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeScrew
-
MaterialNylon
-
ColorWhite
-
TypeGrounding Receptacle
-
GradeIndustrial
-
NEMA RatingNEMA ML1P
-
Voltage Rating125 V AC
-
Cord Diameter0.218 to 0.43 in
-
Amperage Rating15 A
-
Number of Poles2
-
Dimensions1.625 in H x 1.765 in W x 1.203 in D
-
Number of Wires3
- 18 to 14 AWG terminal accommodation
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 1PKG7 |
-
Alternative Part Number7366073
-
UNSPSC39121402
-
IDEA Index ID7366073
-
Package DescriptionEACH
-
Standards/ApprovalsNEMA WD1/WD6|ANSI C73|NOM 057|CSA C22.2 No.42 File No. LR406|UL 498 File No. E13393|Federal Specification WC596|UL94 V-2 Flammability Rating
-
WarrantyLifetime
-
Specification Sheet
