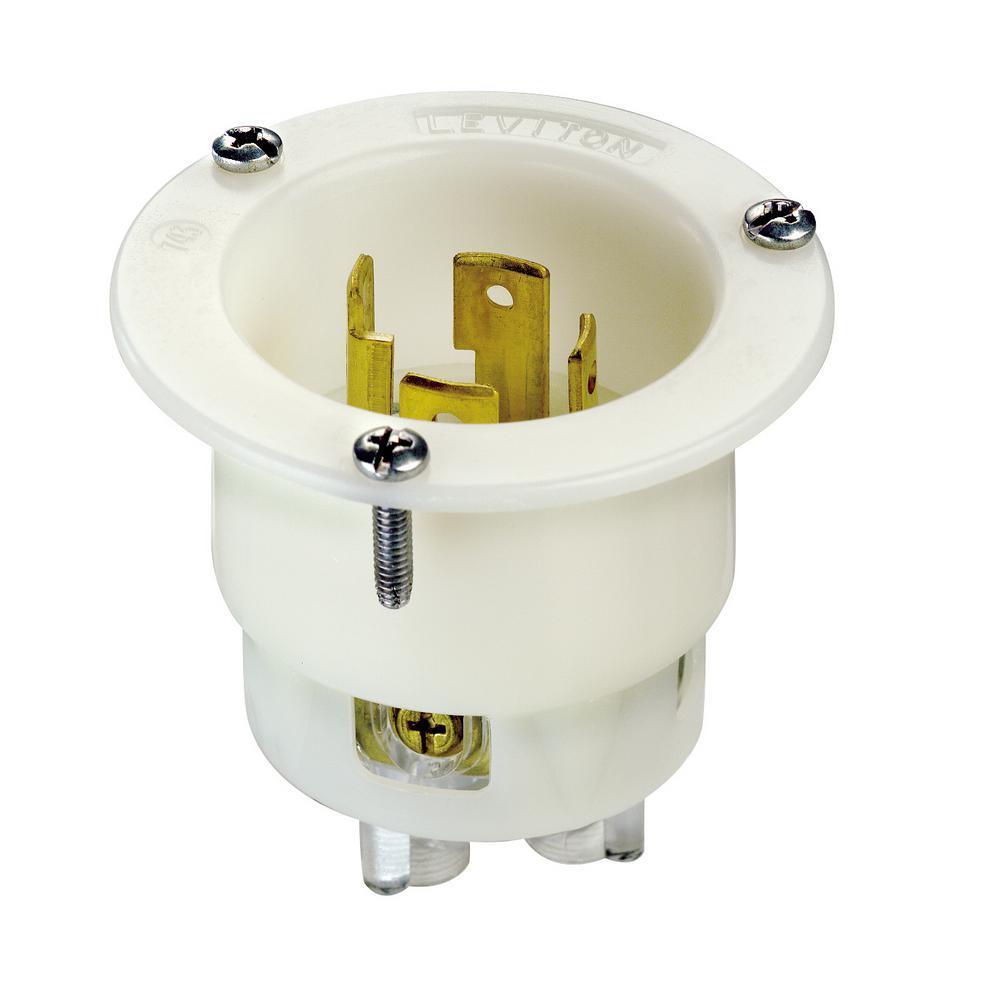

LEVITON 30-A 125/250-V LOCK FLANGED INLET LEV 2715
Leviton® industry leading locking devices, such as our Black & White® line of industrial grade plugs and connectors and our V-0-Max™ line of industrial grade flush receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty.
-
BrandLeviton®
-
UPC078477806388
-
Manufacturer Part Number2715
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeBack Wire
-
MaterialNylon
-
ColorWhite
-
TypeGrounding Receptacle
-
GradeIndustrial
-
NEMA RatingNEMA L14-30P
-
Voltage Rating125/250 V AC
-
Amperage Rating30 A
-
Horsepower2 hp
-
Number of Poles3
-
Dimensions33 in Dia
-
Number of Wires4
-
EnclosureNEMA WD-6
- Withstands 2000 VAC per UL498 dielectric voltage
- Full-rated current
- Flammability rated V-2 per UL94
- 2 hp L-L, 2 hp L-N rated voltage
- Nylon strap and face
- Solid brass line contacts, brass 10 to 32 terminal screws, brass 8 to 32 grounding screws
- NO 18 to NO 10 AWG wire size
- 14 to 8 AWG terminal accommodation, grounding
- 2000 VAC minimum dielectric strength
- Maximum 30 deg C after 250 cycles OL at 200% rated current temperature rise
- Nylon face material, solid brass line contacts
- #10-32 brass terminal screws
- #8-32 brass grounding screws
- Thermoplastic nylon strap
- Brass-hot, green ground, white-neutral terminal ID
- Ratings are permanently marked on device product ID
- Rugged nylon flange fits flush and wont crack in high abuse applications
- Individual deep-funneled chamfered wire wells guide each wire into rectangular chambers
- Wire clamps bundle stranded wire without cutting wire strands
- 2 hp L-L/2 hp L-N power ratings
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 25ME15 |
-
Alternative Part Number7327845
-
UNSPSC39121406
-
IDEA Index ID7327845
-
Package DescriptionEACH
-
Standards/ApprovalsANSI C73|NOM 057|NEMA WD1/WD6|CSA C22.2 No.42 File No. LR406|Federal Specification WC596|UL 498 File No. E13393|UL94 V-2 Flammability Rating
-
WarrantyLifetime
-
RoHS
-
Instruction/Installation Manual
