LEVITON EB PLG.MIDGET LK 3-PO 3-W 125/250 LEV ML-3-C

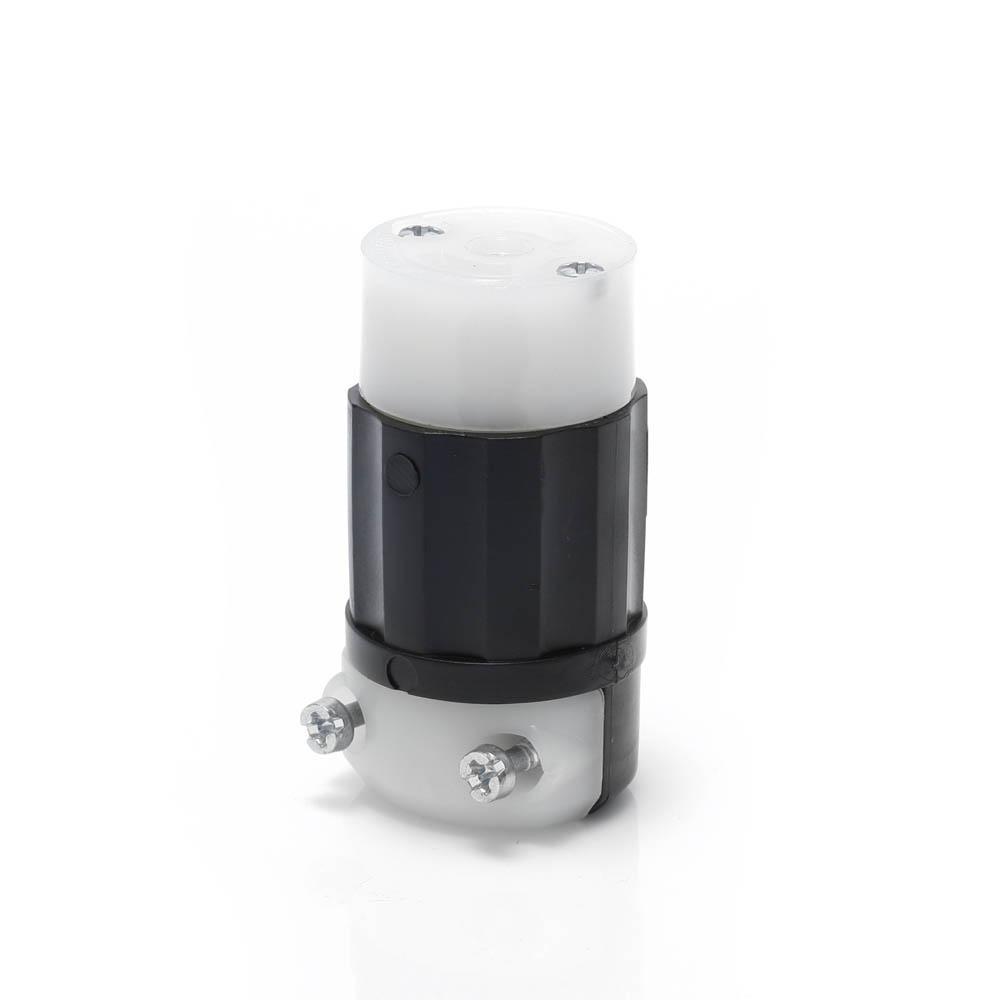

Leviton® ML3-C Cable Mount Non-Grounding Locking Connector, 125/250 VAC, 15 A, 3 Poles, 3 Wires, Black/White
-
BrandLeviton®
-
UPC078477987346
-
Manufacturer Part NumberML3-C
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeScrew
-
MaterialNylon
-
ColorBlack/White
-
TypeCable Mount Non-Grounding
-
GradeIndustrial
-
NEMA RatingNEMA ML1R
-
Voltage Rating125/250 V AC
-
Cord Diameter0.218 to 0.43 in
-
Amperage Rating15 A
-
Number of Poles3
-
Dimensions106 in Dia x 2.156 in H
-
Number of Wires3
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 1PKH1 |
-
Alternative Part Number7366176
-
UNSPSC39121402
-
IDEA Index ID7366176
-
Package DescriptionEACH
-
Standards/ApprovalsNEMA WD1/WD6|ANSI C73|NOM 057|CSA C22.2 No. 42 File No. LR406|UL 498 File No. E13393|Federal Specification WC596|UL94 HB Flammability Rating
-
Catalog
-
Specification Sheet
-
Owners/User Manual
