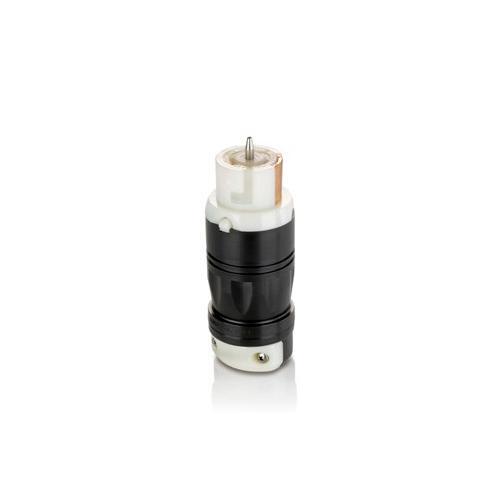

Leviton® Black & White® CS6364C Fluted Body Grounding Locking Connector, 125/250 V AC, 50 A, 3 Poles, 4 Wires, Black/White
Leviton® Black & White® 50 A non-NEMA line of industrial grade locking blade devices feature rugged construction that resists impact, sunlight, chemicals and rough use. All contacts and blades are solid 1-piece construction for superior conductivity. Corrosion resistant versions feature nickel plated contacts and blades, plus stainless steel shrouds and screws. The ergonomic, fluted-body design with radial gripping edge is ideal for gripping and pulling. The unique cord clamp accepts a wide range of cord sizes, providing a secure grip without damaging the cord. And, they are backed by a limited lifetime warranty.
-
BrandLeviton®
-
UPC078477326213
-
Manufacturer Part NumberCS6364C
-
CountryUSA
-
Temperature Rating-40 to 75 deg C
-
Terminal TypeScrew
-
MaterialNylon
-
ColorBlack/White
-
TypeFluted Body Grounding
-
GradeIndustrial
-
Voltage Rating125/250 V AC
-
Cord Diameter0.68 to 1.125 in
-
Amperage Rating50 A
-
Number of Poles3
-
Dimensions2.59 in Dia x 7.23 in L
-
Number of Wires4
- For use in all 50 A branch circuits of 125, 250, 480 VAC, 250 VDC/600VAC or 125/250 VAC industrial installations where UL 498 standards of mechanical and electrical life are specified
-
Alternative Part Number9865230
-
UNSPSC39121413
-
IDEA Index ID9865230
-
Package DescriptionEACH
-
Standards/ApprovalsRoHS Compliant|NOM 057|CSA C22.2 No. 42 File No. 152105|UL 498 File No. E13399|UL94 V-0 Flammability Rating
-
WarrantyLifetime Limited
-
Specification Sheet
-
Owners/User Manual
