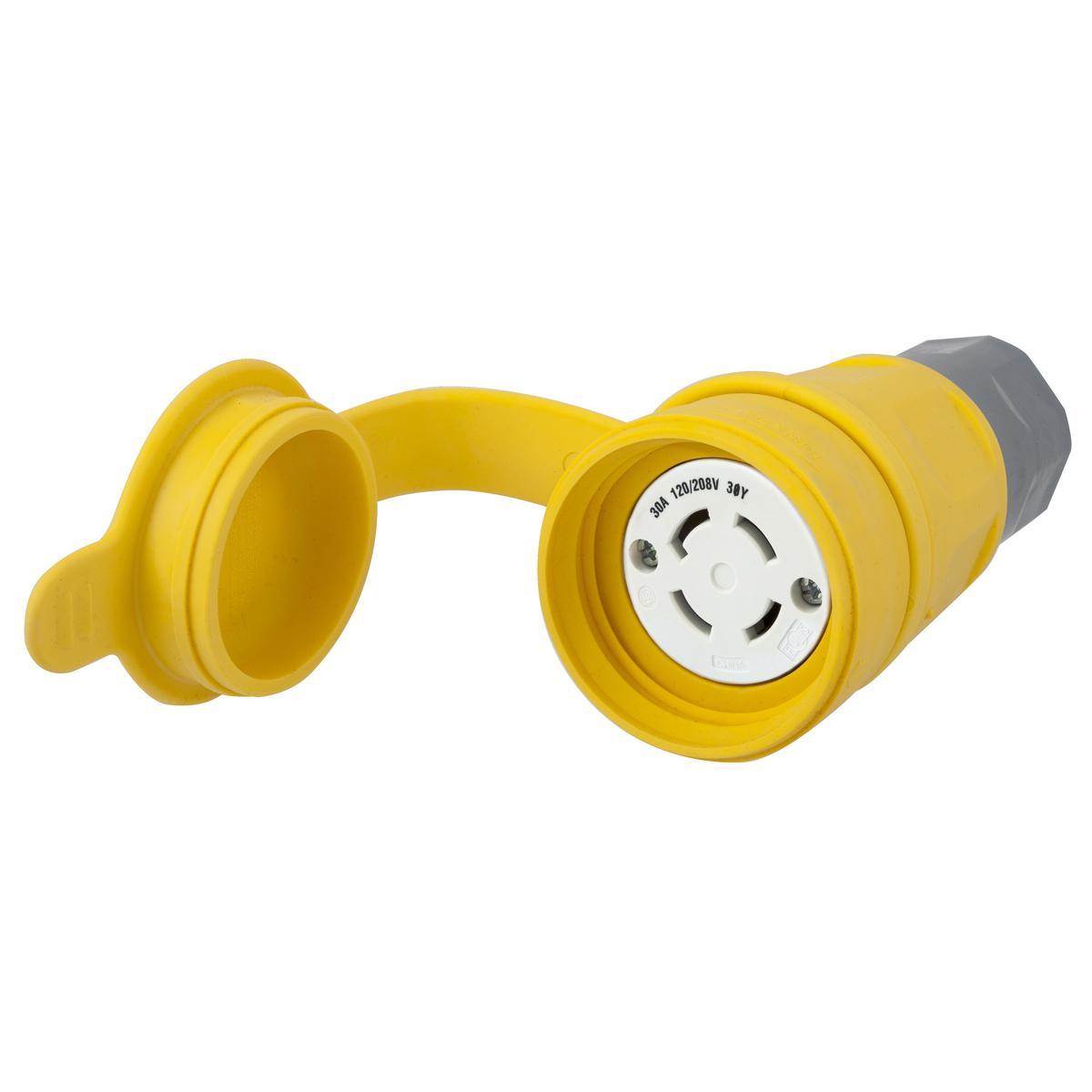

Hubbell Wiring Device-Kellems Twist-Lock® Elastogrip® HBL29W09 3-Phase Isolated Non-Grounding Standard Sized Water/Dust-Tight Cord Mount Watertight Female Connector, 120Y/208 V AC, 30 A, 4 Poles, 3 Wires, Yellow
Hubbell Wiring Device-Kellems Twist-Lock® Elastogrip® HBL29W09 3-Phase Isolated Non-Grounding Standard Sized Water/Dust-Tight Cord Mount Watertight Female Connector, 120Y/208 VAC, 30 A, 4 Poles, 3 Wires, Yellow
-
BrandHubbell Wiring Device-Kellems
-
UPC783585456454
-
Manufacturer Part NumberHBL29W09
-
CountryUSA|Canada
-
Temperature Rating-40 to 75 deg C
-
Terminal TypeScrew
-
MaterialComposite
-
ColorYellow
-
Type3-Phase Isolated Non-Grounding Standard Sized Water/Dust-Tight Cord Mount Watertight
-
GradeCommercial/Industrial
-
Voltage Rating120Y/208 V AC
-
Cord Diameter3/8 to 1 in
-
Amperage Rating30 A
-
Number of Poles4
-
Dimensions2.77 x 2.77 x 5.67 in
-
Number of Wires3
-
EnclosureNEMA 4/4X/6/6P/12/IP65/IP66/IP67
- Stainless steel hardware and corrosion-resistant connection points
- Smooth body design minimizes collection points simplifying the wash down process
- Strain relief nut always seals on the body, minimizing debris collection
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 39AW82 |
-
Alternative Part Number13106378|13490934
-
UNSPSC39121421
-
IDEA Index ID13106378
-
Package DescriptionEACH
-
Standards/ApprovalsNEMA WD1/WD6|NSF Certified|UL94 V-2 Flammability Rating|RoHS Compliant|UL 498|CSA C22.2 No. 42|ANSI Approved
-
Specification Sheet
-
Line Drawing
-
Instruction/Installation Manual
-
Line Drawing
