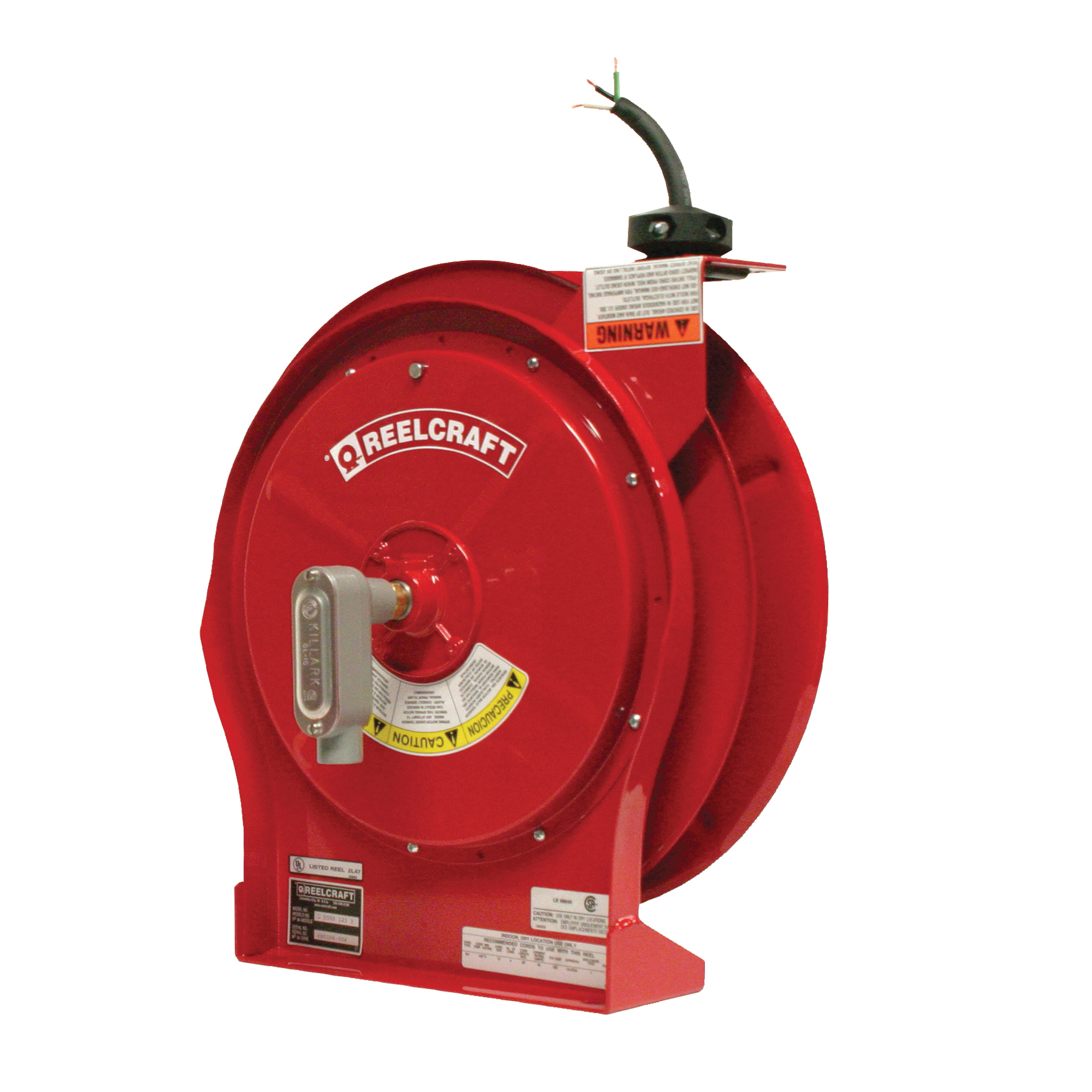

Reelcraft® L 5550 124 X L 5000 Light Cord Reel With SEOOW Cord, 600 V AC, 16 A, 50 ft L Cord, 12 AWG Conductor
The heavy duty series 5000 cord reels are all steel construction and compact for a wide range of applications with critical space requirements. A robust collector ring assures maximum conductivity current flow. Guide arm adjusts to 2 positions.
-
BrandReelcraft®
-
UPC699567007395
-
Manufacturer Part NumberL 5550 124 X
-
CountryUSA
-
Reel MaterialReinforced Steel
-
Conductor Size12 AWG
-
Voltage Rating600 V AC
-
Cord Length50 ft
-
Amperage Rating16 A
-
SeriesL 5000
-
Dimensions16-1/2 in L x 12-1/2 in W x 17-1/2 in H
- Reinforced steel the robotically steel base offers maximum strength and consistent quality
- Long life drive spring - declutching arbor virtually eliminates possibility of spring damage due to reverse winding
- Only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life
- Quality finish and corrosion-resistant - individually powder coated components offer the maximum protection from premature corrosion
-
UNSPSC26121635
-
Package Description1/PK
-
Standards/ApprovalsPROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
