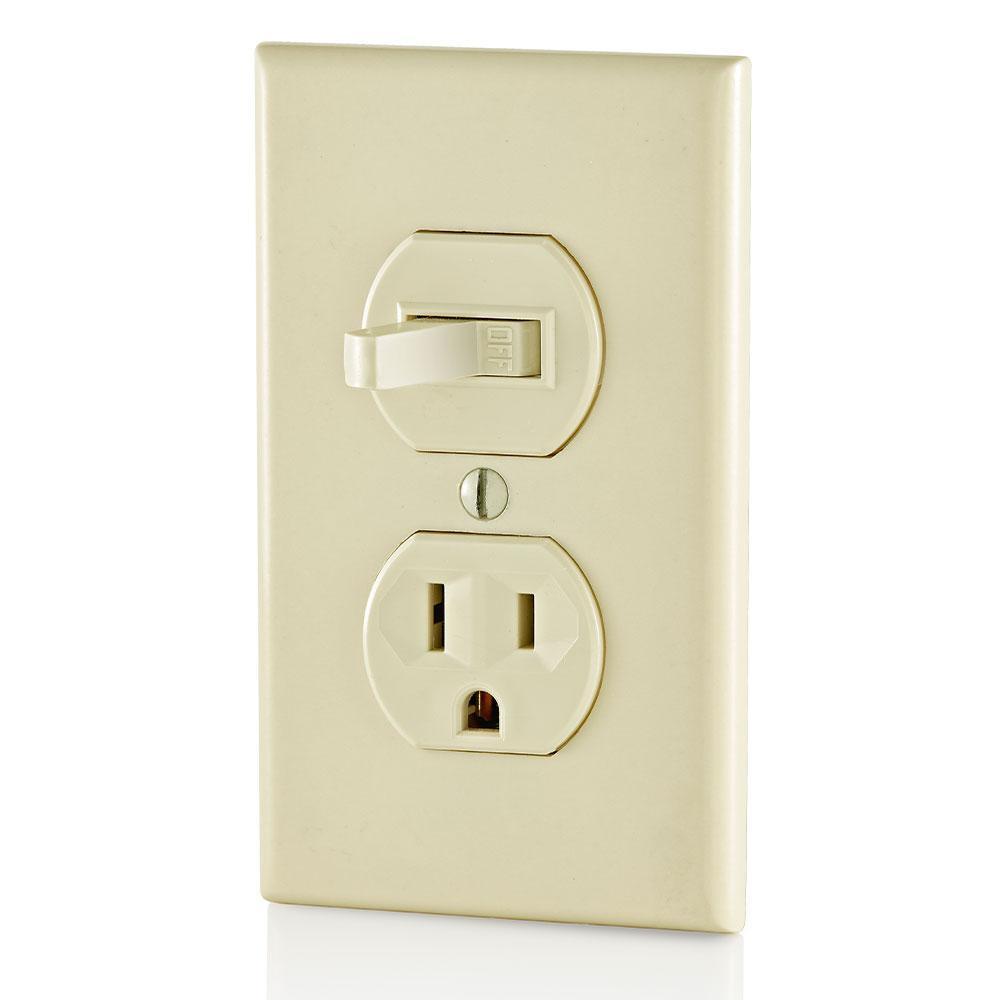

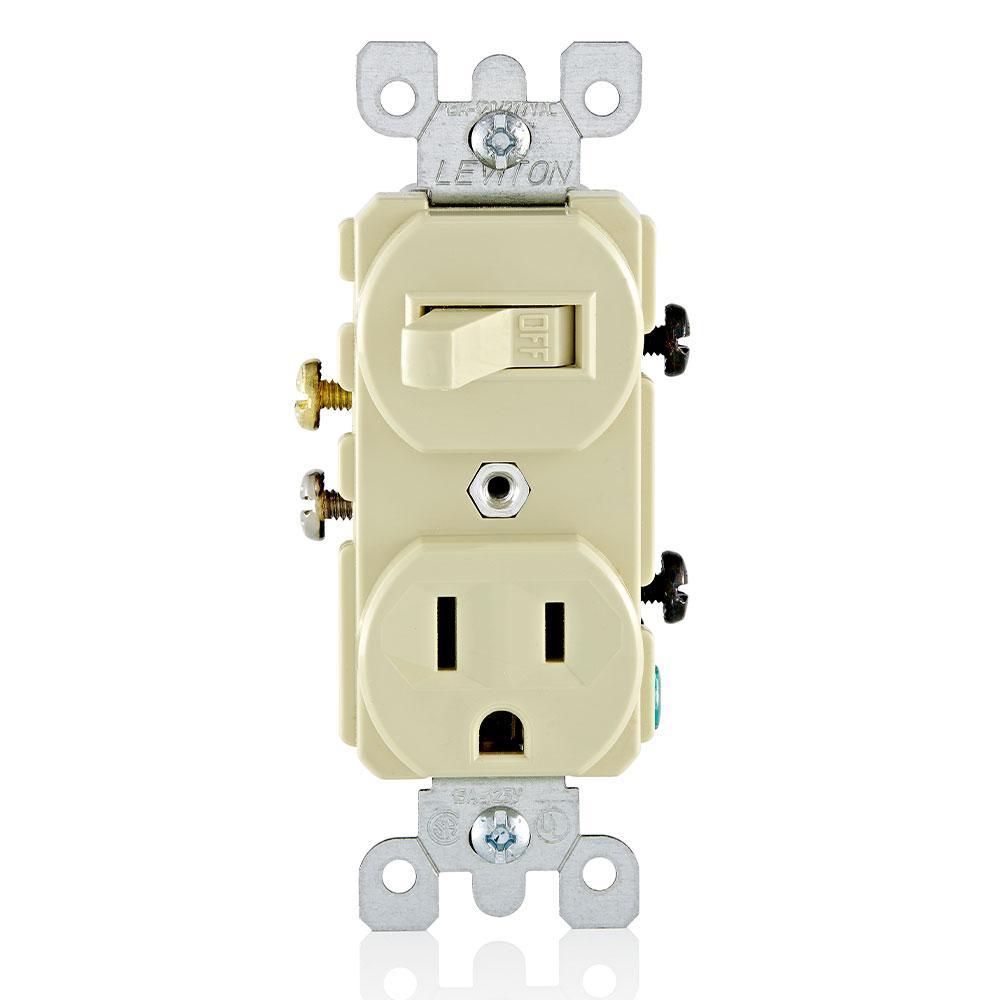

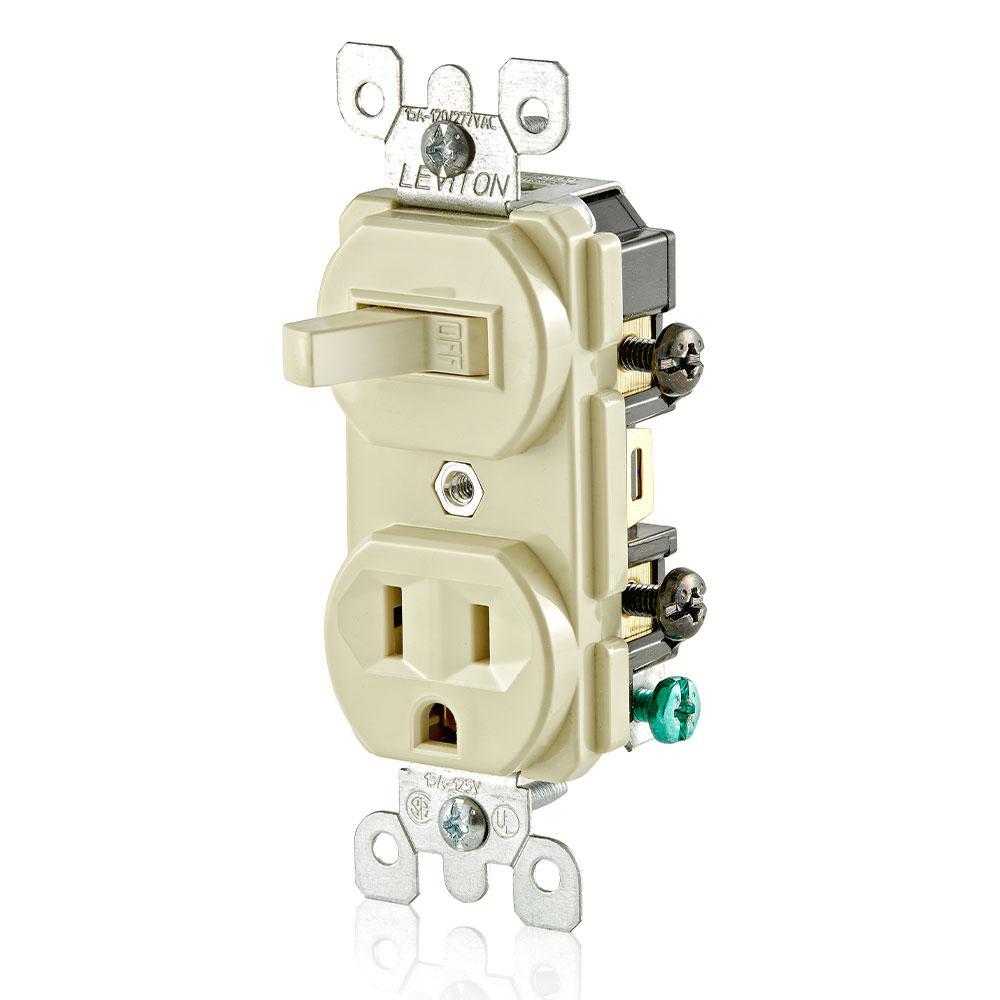

Leviton® 5225-I 1-Way Duplex Outlet Combination Switch, 15 A, 120/125 VAC, 1 Poles, 14 to 12 AWG Wire
With Leviton® extensive assortment of combination devices, you can fill a 1-gang space with 2-switches, a switch and receptacle, even a switch and GFCI. From sensor guide lights to multi-purpose styles and tamper-resistant receptacles, we accommodate your every need. These devices come in a range of colors and are backed by a limited 2 years warranty. Built to last and designed to save space, these attractively styled devices are at home in any setting.
-
BrandLeviton®
-
UPC068679161194
-
Manufacturer Part Number5225-I
-
CountryCanada
-
Terminal TypeSide Wire/Screw
-
MaterialSteel/Thermoplastic
-
ColorIvory
-
Type1-Way Duplex Outlet
-
GradeCommercial
-
Grounding StyleGrounded
-
MountingWall/Surface
-
Wire Size14 to 12 AWG
-
Number of Poles1
-
Dielectric Strength1.5 kV
-
Dimensions4.2 in H x 1.62 in W x 16 in D
-
Electrical Ratings15 A, 120/125 VAC
-
EnclosureNEMA 5-15R
- AC quiet switches have silver cadmium oxide contacts and receptacles have double wire contacts for maximum conductivity
- Terminal screws accepts up to 12 AWG copper or copper clad wire
- Fits standard wallboxes
- Break-off tabs on devices with switches permit conversion to separate feeds
-
Alternative Part Number12168386
-
UNSPSC39122231
-
IDEA Index ID12168386
-
Package DescriptionEACH
-
Standards/ApprovalsPROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
-
Warranty2 Years
-
Instruction/Installation Manual
