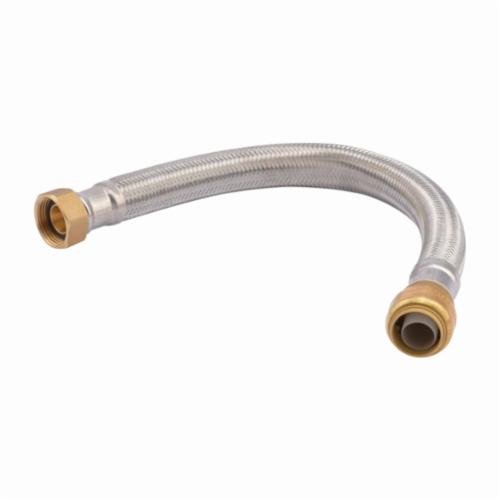

Sharkbite® U3088FLEX15LF Flexible Braided Water Heater Connector, 3/4 in, Push-Fit x FNPT, 15 in L, 200 psi, Stainless Steel, Import
SharkBite's Braided Flexible Water Heater Connectors are great for easily connecting your hot and cold water supply lines to your water heater. Simply apply pipe thread to the MIP nipples on the water heater and then thread the female connection on the connector to the nipple and tighten with channel locks or a similar tool. These hoses are also available in Corrugated Stainless Steel and are also available with an integrated Ball Valve.
-
BrandSharkbite®
-
UPC697285956551
-
Manufacturer Part NumberU3088FLEX15LF
-
CountryUSA
-
MaterialStainless Steel
-
TypeFlexible Braided
-
Nominal Size3/4 in
-
Working Pressure200 psi
-
Domestic/ImportImport
-
Length15 in
-
End StylePush-Fit x FNPT
- SharkBite connection: eliminates the need for additional transition fittings
- Ease of use: No soldering or glue
- Available in 12, 15, 18, 24 in lengths: No cutting pipe
- Design certified and agency listed: Inspector friendly, peace of mind
- Hoses are EPDM knitted with braided stainless steel
- DZR lead free brass 3/4 in FIP nut
- 3/4 in FIP EPDM washer
| Cross-Reference Number |
|---|
| 464406 |
-
UNSPSC40101800
-
Package Description12/BG
-
Standards/ApprovalsASME A112.18.6-2009|CSA B125.6-200|ANSI/NSF 372-2010
-
Warranty2 Years Limited
-
Catalog
-
Specification Sheet
-
Warranty Information
-
Instruction/Installation Manual
