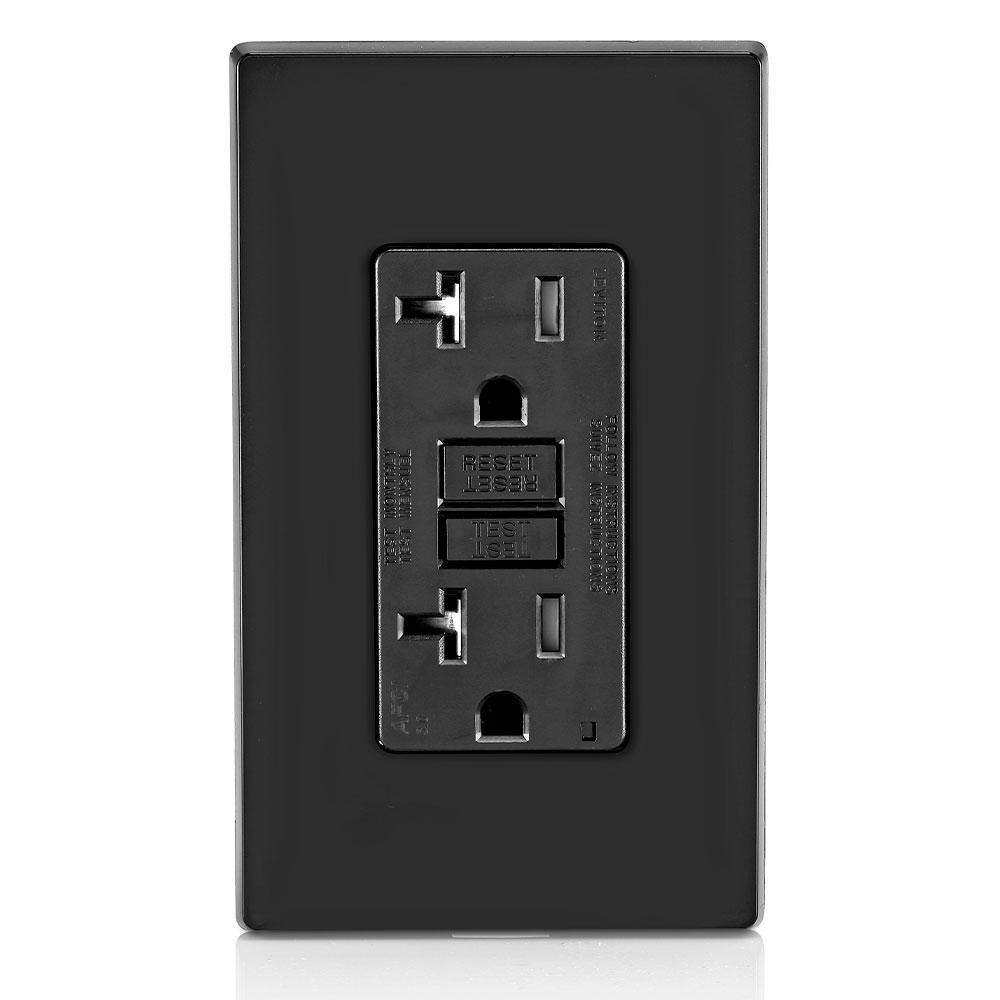

LEVITON 20-A BRN ARCFAULT REC. NEMA 5-20-R LEV AFTR-2
The SmartlockPro® outlet branch circuit (OBC) AFCI receptacle offers advanced technology to help protect against electrical fires resulting from arc-faults. Designed to detect a wide range of potentially hazardous arc-faults resulting from damage in branch circuit wiring as well as extensions to branches such as appliances and cord sets, the OBC AFCI responds by interrupting power. This helps reduce the likelihood of the homes electrical system being an ignition source of a fire. Often unseen, arc-faults can occur anywhere in the homes electrical system including within walls, at loose electrical connections or within electrical cords accidently damaged by impinging furniture. AFCIs are now required by the National Electrical Code in many areas of the home.
-
BrandLeviton®
-
UPC078477574973
-
Manufacturer Part NumberAFTR2-E
-
CountryUSA
-
Temperature Rating-35 to 66 deg C
-
Terminal TypeScrew
-
MaterialPolycarbonate/Thermoplastic
-
Frequency Rating60 Hz
-
ColorBlack
-
TypeDuplex Outlet Self-Grounding
-
NEMA RatingNEMA 5-20R
-
Voltage Rating125 V AC
-
Amperage Rating20 A
-
SeriesAFTR2
-
Horsepower1 hp
-
Number of Poles2
-
Dimensions4.21 in H x 1.68 in W x 1.27 in D
-
Number of Wires3
- Device design reduces nuisance tripping
- Compatible with all Decora® devices and wallplates
- Automatically tests the AFCI every time the RESET button is depressed, the AFCI will not reset if the AFCI circuit is not functioning properly
- By blocking reset of the AFCI if protection has been compromised, the SmartlockPro® OBC AFCI reduces the possibility of end users incorrectly assuming that a reset AFCI is providing protection when its functionality has been compromised
- A line load reversal diagnostic feature is provided which prevents the AFCI from being reset and stops power from being fed to the AFCI receptacle face or through to downstream devices
- A green LED indicator on the AFCI's face also illuminates to alert the installer to a line load wiring reversal when the device is in the tripped state
- TR symbol indicates the devices compliance with the latest NEC® requirements for tamper resistant receptacles in residences and childcare facilities
- Impact resistant thermoplastic cover and body
- Use of TEST and RESET buttons is similar to traditional GFCI receptacles of which consumers have become familiar with, this translates into greater acceptance of the technology and a more user friendly platform
- Terminals allow for easy wiring options - back and side wire capable
- Superior resistance to electrical surges and over voltages
- Double wipe brass contact material
-
Alternative Part Number12002739
-
UNSPSC39121637
-
IDEA Index ID12002739
-
Package DescriptionEACH
-
Standards/ApprovalsUL 498/1699A File No. E342815|Federal Specification WC-596|CSA C22.2 No. 42 File No. M-02A|NOM 057|NEMA WD6|ANSI C-73|UL94 V-2 Flammability Rating
-
Warranty2 Years Limited
-
