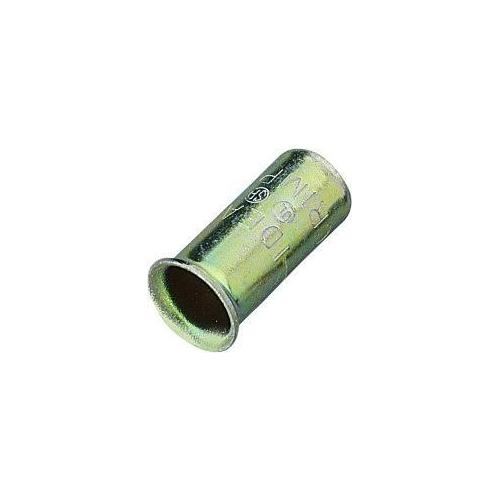

IDEAL 18 TO 4 AWG STEEL CRIMP CONNECTOR IDL 30-412
Crimp connectors from IDEAL are designed for making fast, permanent, pressure-type connections. Whether there is a connection in a high vibration environment or installations at an OEM, there is a solution available. The steel and copper crimp connectors cover a wide range of combinations and have available insulating caps to protect against dangerous electrical shock.
-
BrandIDEAL®
-
UPC783250304127
-
Manufacturer Part Number30-412
-
CountryUSA
-
Temperature Rating221 deg F
-
FinishZinc Plated
-
MaterialCopper/Steel
-
Voltage Rating600 V AC
-
Series412®
-
Wire Size18 to 4 AWG
-
Dimensions51/64 in L x 19/64 in W
-
Specifications(1) 14 AWG with (1) 16 AWG Minimum, (2) 8 AWG with (1) 6 AWG Max Conductor Range
- Whether there is a connection in a high vibration environment or installations at an OEM, there is a solution available
- The steel and copper crimp connectors cover a wide range of combinations and have available insulating caps to protect against dangerous electrical shock
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 25A123 |
-
Alternative Part Number8316259
-
UNSPSC39121448
-
IDEA Index ID8316259
-
Package DescriptionEACH
-
Standards/ApprovalsRoHS Compliant|CSA C22.2 No. 188 Certified|UL 486C|W-S-610E Federal Specification
-
RoHS
-
