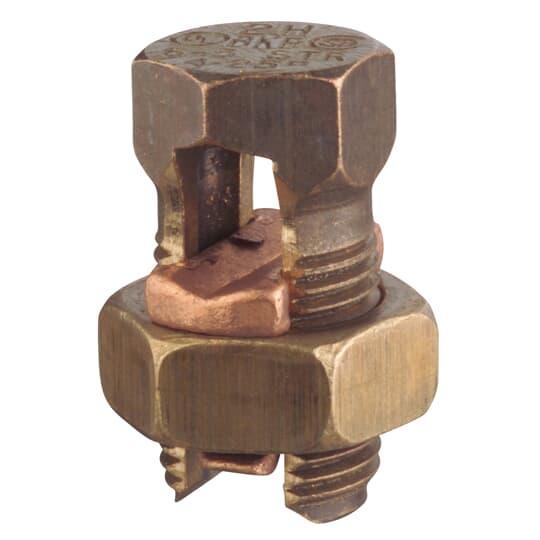

Blackburn® 30H Type H High Strength Split Bolt Connector, 2 to 4/0 AWG Solid/Stranded Copper Conductor, 1 x 2-5/32 in Bolt, Bronze Alloy
Blackburn® 30H Type H High Strength Split Bolt Connector, 2 to 4/0 AWG Solid/Stranded Copper Conductor, 1 x 2-5/32 in Bolt, Bronze Alloy
-
BrandBlackburn®
-
UPC783786200160
-
Manufacturer Part Number30H
-
CountryUSA
-
MaterialBronze Alloy
-
ColorMetallic
-
TypeType H High Strength
-
Conductor Size2 to 4/0 AWG
-
Conductor TypeSolid/Stranded Copper
-
Specifications0.58 in Split, 1-5/16 in Hex Nut
-
Bolt Size1 x 2-5/32 in
- Bolt and nut of high-strength corrosion resistant bronze alloy
- Pressure bar is copper through 40H, copper alloy for 350 kcmil and above
- Bolt and nut of hex design up to 350 kcmil
- Split-bolt connector made of metallic bronze alloy for use on copper conductors
- 6 AWG solid conductor range min tap with one max main
- 4/0 AWG stranded to 2 AWG solid conductor range for equal main and tap
- 25 Pieces/Pack
-
Alternative Part Number7TAH006100R0009|13213083
-
UNSPSC39121408
-
IDEA Index ID10733814
-
Package DescriptionEACH
-
Standards/ApprovalsUL E9809
-
Specification Sheet
