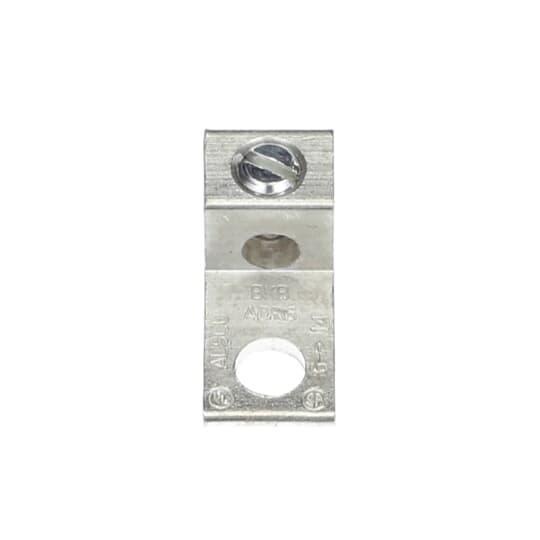

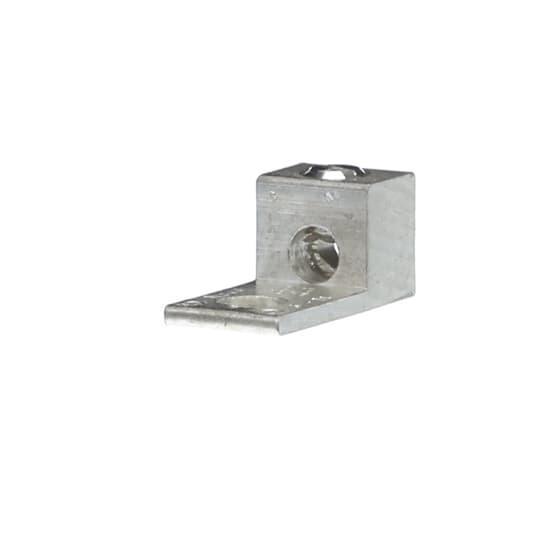

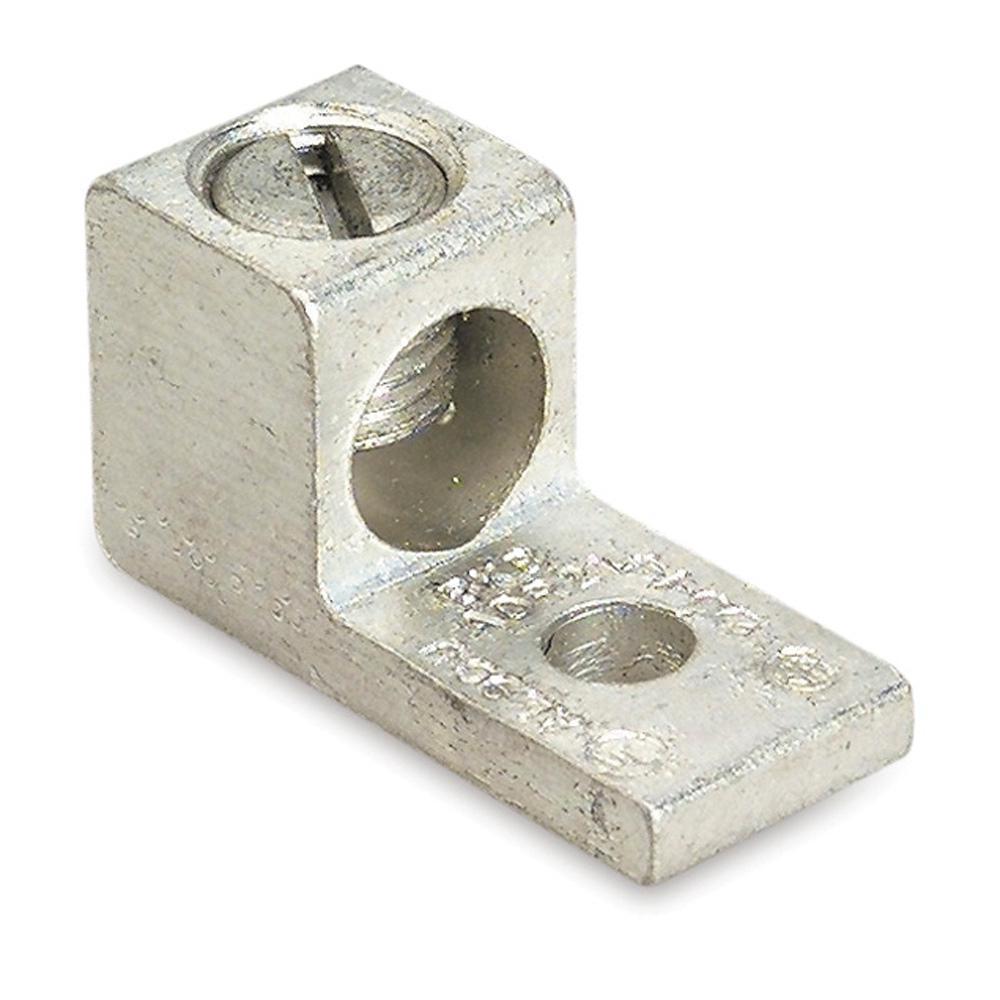

Blackburn® ADR6 Type ADR-ALCUL Dual-Rated Mechanical Lugs, 14 to 6 AWG Conductor Aluminum/Stranded Copper Conductor, 1/4 in Stud, 1 Bolt Holes
Blackburn® cast, forged or formed mechanical connections, produced in economical copper and dual-rated aluminum, provide unequaled variety with a large variety of UL and CSA certified solutions for your electrical interface needs.
-
BrandBlackburn®
-
UPC783786610013
-
Manufacturer Part NumberADR6
-
CountryUSA
-
FinishTin Plated
-
MaterialAluminum
-
TypeType ADR-ALCUL Dual-Rated
-
Conductor Size14 to 6 AWG
-
Conductor TypeAluminum/Stranded Copper
-
Voltage Rating600 V AC
-
Number of Bolt Holes1
-
Dimensions1-3/64 in L x 1/2 in W x 31/64 in H
-
Specifications1-Conductor, Slotted Screw
-
Stud Size1/4 in
- Easy installation no special tools required
- Tin plated for low contact resistance
- Extra aluminum lug
- Slotted screw on lugs up through 2/0 stranded
- 1 stud of 1/4 in
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 3LN44 |
-
Alternative Part Number10764754|7TAH006600R0232
-
UNSPSC39121408
-
IDEA Index ID10764754
-
Package DescriptionEACH
-
Standards/ApprovalsUL E9809
-
Specification Sheet
-
Instruction/Installation Manual
