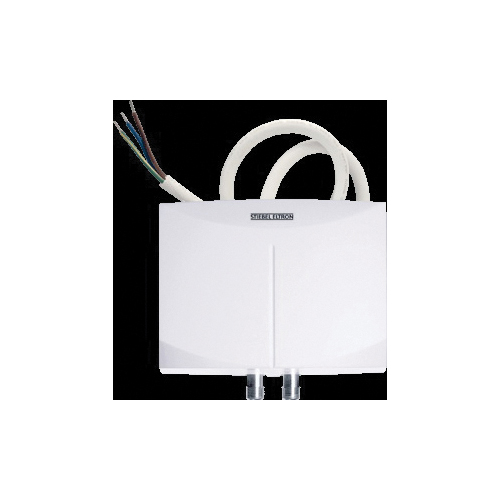

STIEBEL ELTRON 220816 Mini™ Single Handwashing Sink Electric Tankless Water Heater, 120 V AC, 3000 W, 1 ph, 3/8 in Water, 25 A, Commercial/Residential/Dual: Commercial

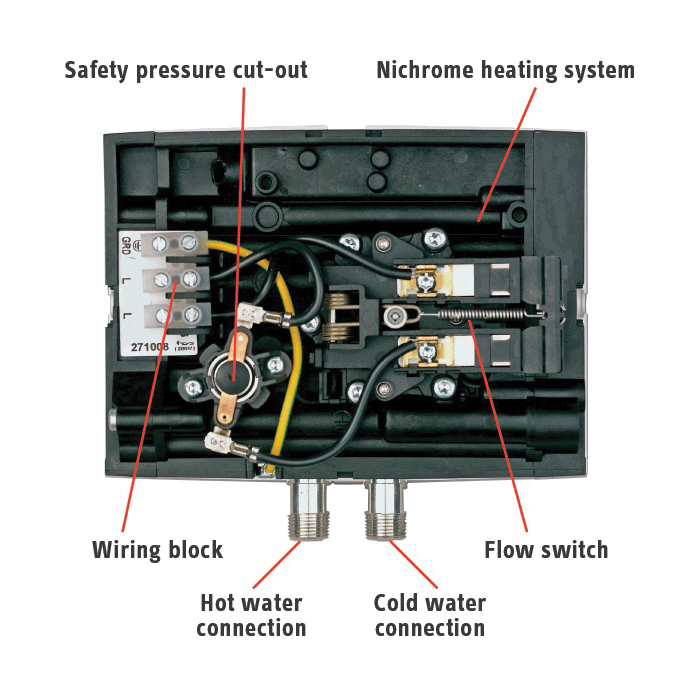

The tankless electric water heater shall be equipped with a bare wire nickel chrome type heating element housed in fiberglass reinforced high temperature plastic containment. The housing of the unit shall be made of high impact polycarbonate plastic. The flow switch that operates the heating element shall be of the mechanical pressure differential type. The unit shall be equipped with a safety high-limit switch with manual reset. The water connections shall be designed for standard 3/8 in O.D. flexible braided stainless steel hose type connectors. The unit shall be mounted with water connections facing either top or bottom only. The units shall ship with a AWG #12 wire harness with a length of 2 ft. The unit shall conform to ANSI /UL. 499 and be certified to CAN/CSA E335-1 and E335-2-35.
-
BrandSTIEBEL ELTRON
-
UPC094922058478
-
Manufacturer Part Number220816
-
CountryUSA
-
Temperature Rating86 to 122 deg F
-
Power Rating3000 W
-
Pressure Rating150 psi
-
Flow Rate0.4 gpm
-
TypeSingle Handwashing Sink
-
Voltage Rating120 V AC
-
Amperage Rating25 A
-
SeriesMini™
-
Wire Size10 AWG
-
Dimensions7-1/2 in W x 3-1/4 in D x 6-1/2 in H
-
Domestic/ImportDomestic
-
Phase1
- Extremely compact design saves space
- Major energy savings
- Unlimited supply of hot water
- Proven reliability
- Sleek design is appealing and can be mounted in plain sight
- Can be mounted with fittings pointing up or down
- 3/8 in OD flexible braided stainless steel hose connectors
- The Stiebel Eltron Mini™ tankless water heaters are ideal for restrooms or kitchenettes in an office or commercial/industrial setting
- Suitable for inlet cold water supply only
| Cross-Reference Number |
|---|
| 403534 |
-
Alternative Part NumberMINI 3-1
-
UNSPSC40101826
-
Standards/ApprovalsANSI/UL Standard 499|CAN/CSAE335-1 and E335-2-35|NSF/ANSI 372 for Lead Free Compliance
-
Warranty3 Years
-
Warranty Information
-
Specification Sheet
-
Instruction/Installation Manual
-
Catalog
