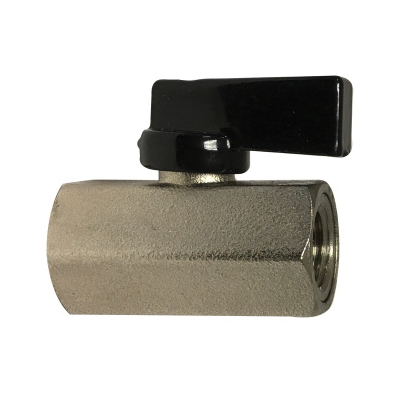

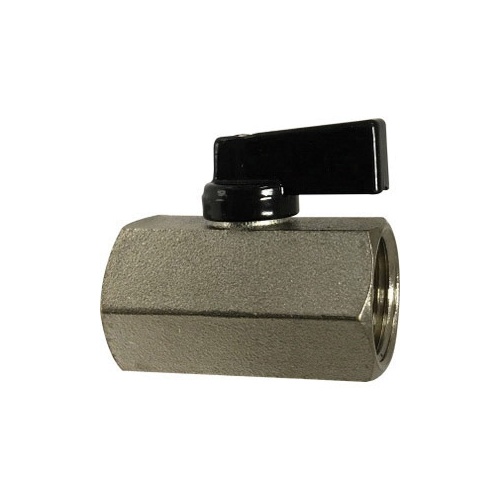

HCI Preferred Supplier 46936 Economy Miniature Ball Valve, 3/8 in Nominal, FIP End Style, Brass Body, FKM O-Ring/Stem/Seal Softgoods
HCI Preferred Supplier 46936 Economy Miniature Ball Valve, 3/8 in Nominal, FIP End Style, Brass Body, FKM O-Ring/Stem/Seal Softgoods
-
BrandGeneric
-
Manufacturer Part Number46936
-
CountryUSA
-
Temperature Rating356 deg F at 142 psi/212 deg F at 355 psi
-
Pressure Rating450 psi
-
MediaAir, Oil and Water
-
Trim MaterialHighly Inert PTFE Seat
-
TypeEconomy
-
Nominal Size3/8 in
-
Ball MaterialNickel Plated Brass
-
Softgoods MaterialFKM O-Ring/Stem/Seal
-
Domestic/ImportImport
-
Body MaterialBrass
-
End StyleFIP
- Blow-out proof stem for safety
- 1/4 turn instantaneous on-off operation
- Quarter-turn handle design
- Non-adjusting FKM o-ring stem seal design never needs tightening
- Good for propane, Gas and diesel
- Not good for steam
-
UNSPSC40141607
-
Package Description20/BX
-
