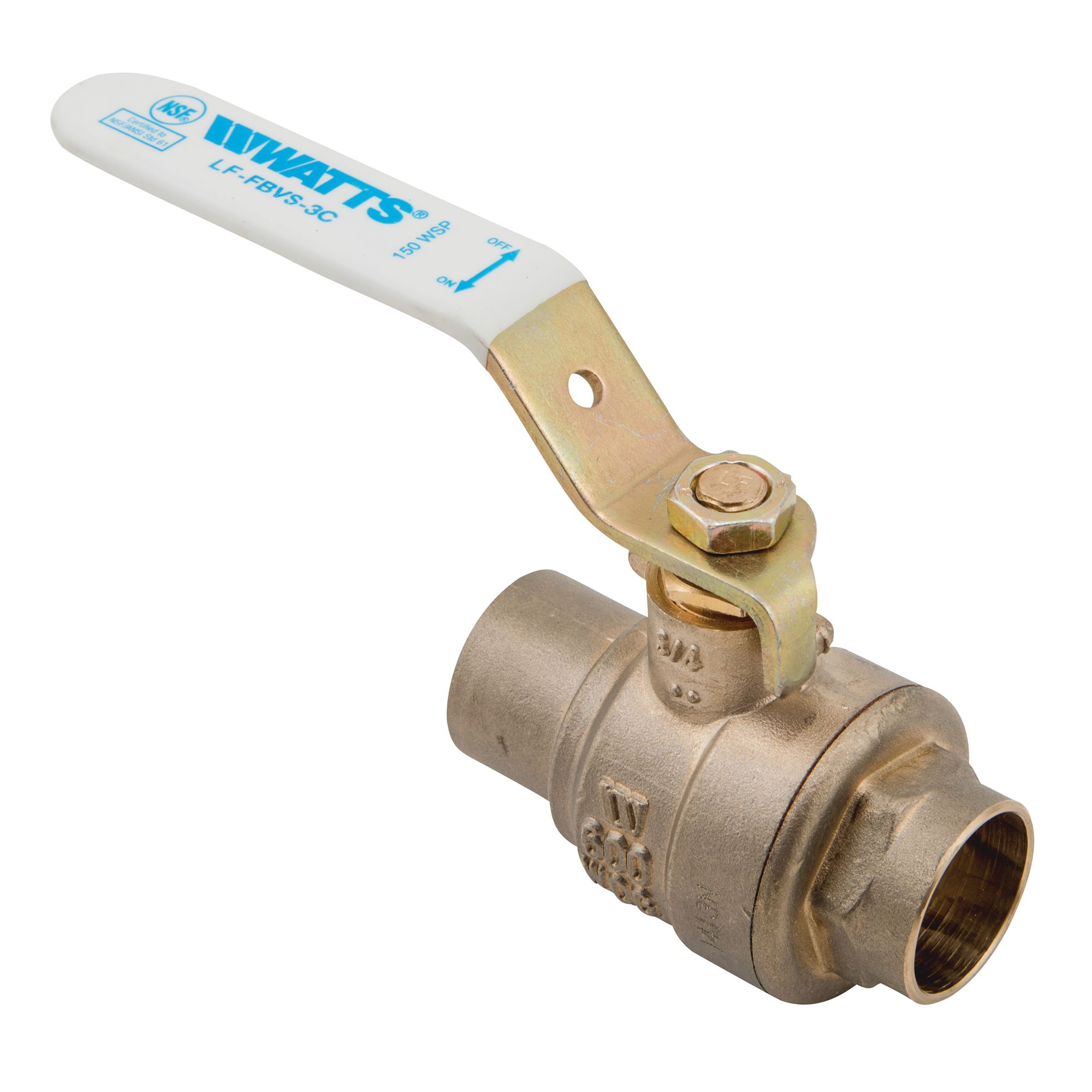

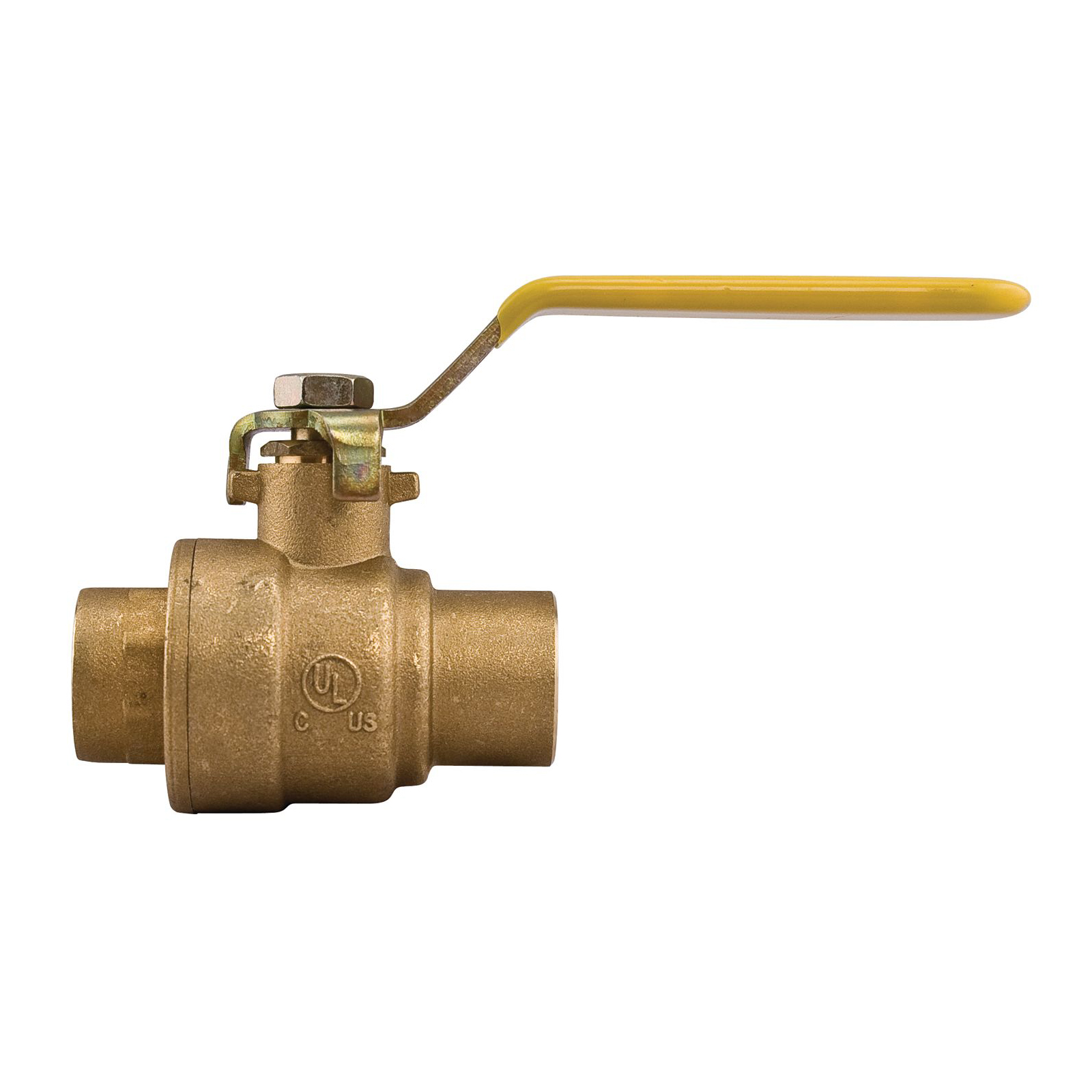

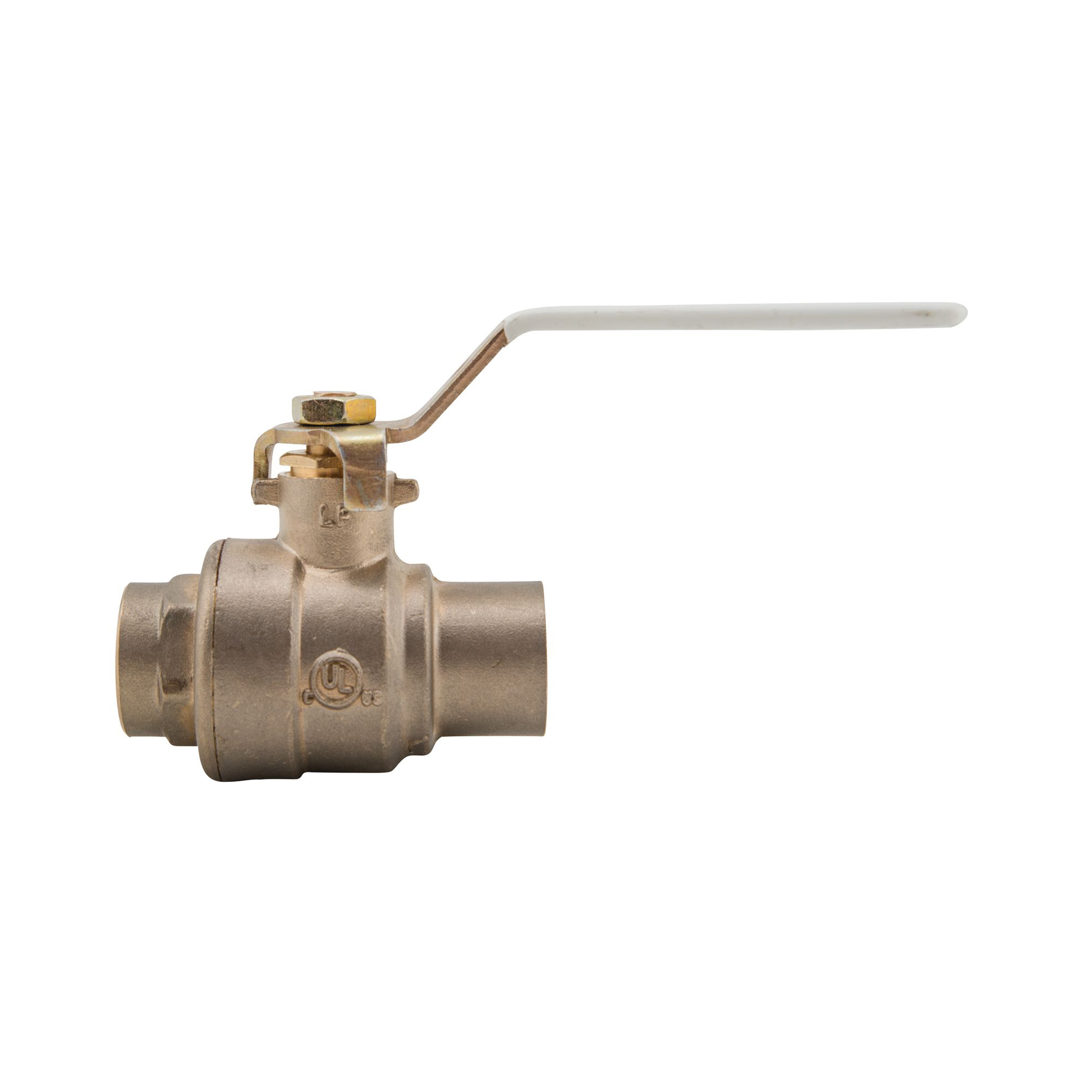

WATTS® 0555113 2-Piece Ball Valve, 1-1/4 in Nominal, Solder End Style, Silicon Alloy Body, Full Port, Fluorocarbon/PTFE Softgoods, Import
Series LFFBV-3C, LFFBVS-3C Lead Free 2-Piece, Full Port, Brass Ball Valves are used in commercial and industrial applications for a full range of liquids and gases. They feature a bottom-loaded blow-out proof stem, virgin PTFE seats, thrust washer, and adjustable stem packing gland, stem packing nut, chrome plated brass ball, copper silicon alloy brass adapter, and steel handle. Model LFFBV-3C has threaded end connections. Model LFFBVS-3C has solder end connections.
-
BrandWATTS®
-
UPC098268447828
-
Manufacturer Part Number0555113
-
CountryUSA|Canada
-
Temperature Rating-40 to 400 deg F
-
Port TypeFull
-
Pressure Rating600 psi
-
Top to Inlet Center2-13/16 in
-
MediaGas/Liquids
-
Trim MaterialBrass Stem and PTFE Seat
-
Type2-Piece
-
Nominal Size1-1/4 in
-
SeriesLFFBVS-3C
-
Ball MaterialChrome Plated Brass
-
Inlet to Outlet Length3-11/16 in
-
Softgoods MaterialFluorocarbon/PTFE
-
Domestic/ImportImport
-
Body MaterialSilicon Alloy
-
End StyleSolder
- Lead free forged copper silicon alloy body and adapter
- Adjustable stem packing gland nut
- Bottom loaded, blow-out proof stem
- 150 psi steam working pressure
- Excessive heat can harm the seats
- After soldering, the packing nut may have to be tightened
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- Fluorocarbon elastomer O-ring and PTFE stem packing seal/thrust washer
| Competitor Name | Competitor Part Number |
|---|---|
| Ferguson | WLFFBVS3CH |
-
Alternative Part NumberLFFBVS-3C 1 1/4
-
UNSPSC40141607
-
Package DescriptionEACH
-
Standards/ApprovalsCSA Certified|FM Approved|MSS-SP-110 Compliant|NSF/ANSI 61/8 Certified|UL Listed
-
Warranty1 year Limited
-
Specification Sheet
