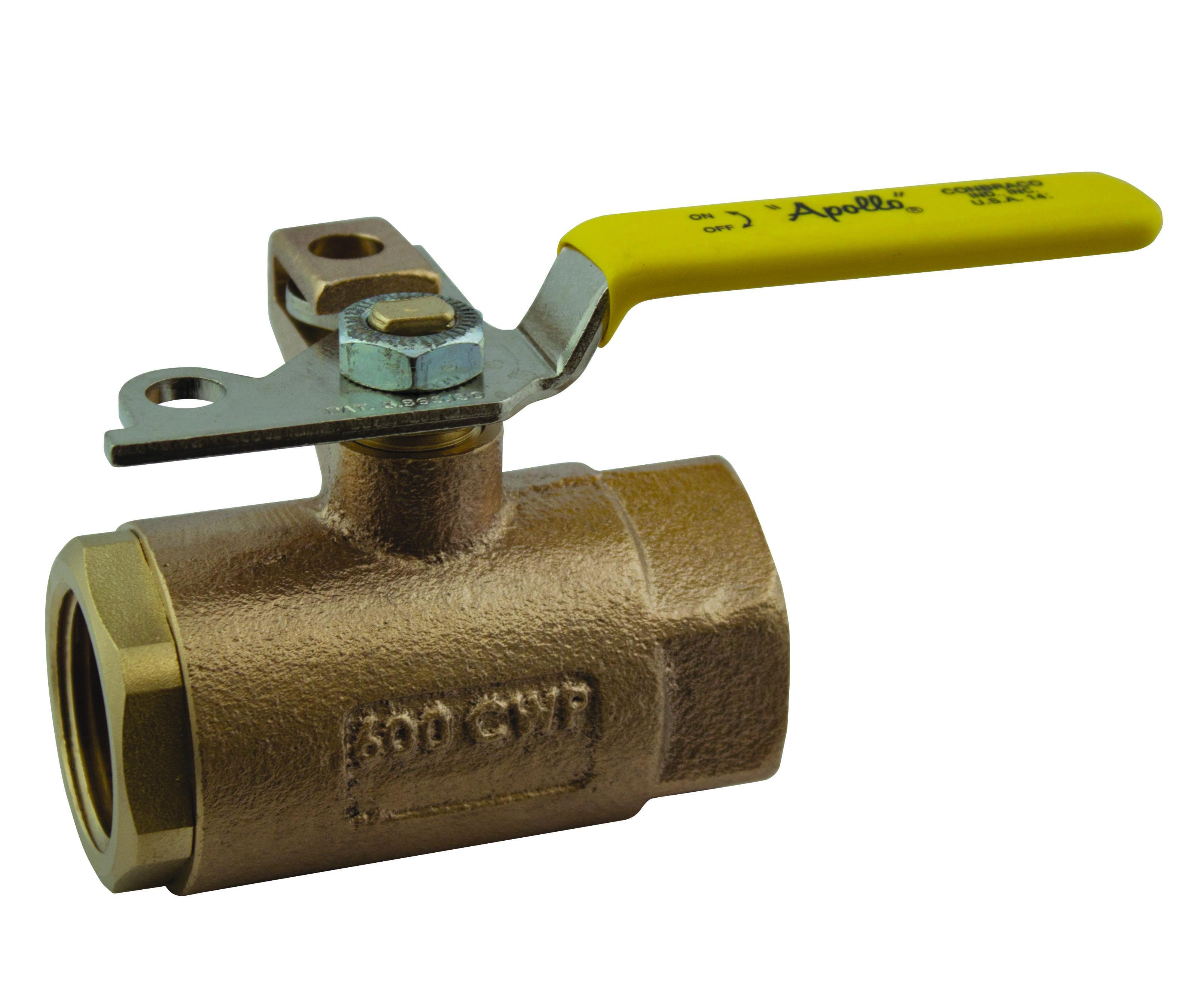

NIBCO 75-103-01 2-Piece Ball Valve, 1/2 in Nominal, FNPT End Style, Bronze Body, Standard Port, MPTFE Softgoods, Domestic
This Apollo™ Ball Valve meets OSHA standards and provides for easy, safe maintenance of pneumatic tools. Valve can be padlocked in the OPEN or CLOSED position with the same hardware.
-
BrandApollo™
-
UPC670750691102
-
Manufacturer Part Number7510301
-
CountryUSA
-
Temperature Rating50 to 200 deg F
-
Port TypeStandard
-
Pressure Rating600 psi CWP
-
Top to Inlet Center1.81 in
-
Trim MaterialBrass Stem/RPTFE Seat
-
Type2-Piece
-
Actuator TypeLever Operated
-
Nominal Size1/2 in
-
Series75-100
-
Ball MaterialChrome Plated Brass
-
Inlet to Outlet Length2-1/4 in
-
Softgoods MaterialMPTFE
-
Domestic/ImportDomestic
-
Body MaterialBronze
-
End StyleFNPT
- Blow-out proof stem design
- Hardened ball for wear resistance
- May be padlocked in open or closed position with no change of hardware
- Zinc plated with vinyl steel lever and grip
- Zinc plated steel lever nut
- 150 psi steam working pressure
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 6FXZ0 |
| Ferguson | A7510301 |
-
UNSPSC40141607
-
Package Description10/BX
-
Standards/ApprovalsCRN OC10908.5C|Federal Specifications WW-V-35C|Type II|Composition BZ|Style 3|MSS SP-110|OSHA Standard|PROP65: Cancer and Reproductive Harm
-
Warranty5 Years
-
Catalog
-

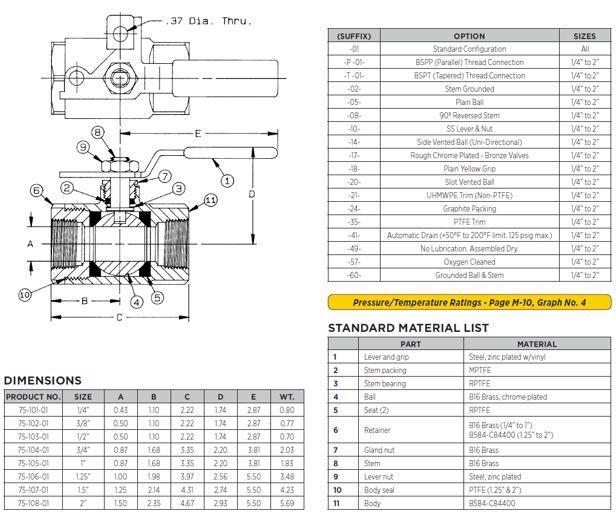

Specification Sheet
-
Owners/User Manual
