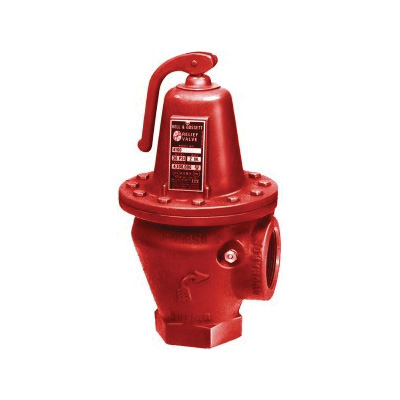

Bell & Gossett 110135 Safety Relief Valve With 1 in NPT Tapping, 1 in Nominal, NPT End Style, 125 psig Pressure, Brass Body
Bell & Gossett diaphragm operated cast iron and diaphragm-assist operated bronze ASME Safety Relief Valves are designed to protect fired and unfired hot water pressure vessels against over-pressure conditions. These valves feature a unique failsafe disc with sufficient area to permit the valves to maintain their safety relief function in the event of a diaphragm rupture. These valves are designed, manufactured, tested and labeled in accordance with the requirements of Section IV of the ASME Boiler and Pressure Vessel code. They are offered in a wide range of capacities to permit a close match with the boiler output rating.
-
BrandBell & Gossett
-
UPC683328101354
-
Manufacturer Part Number110135
-
CountryUSA
-
Temperature Rating250 deg F
-
Pressure Rating125 psig
-
Trim MaterialEPDM
-
Nominal Size1 in
-
Dimensions2-7/8 in L x 4-15/16 in H
-
Body MaterialBrass
-
End StyleNPT
- 125 psig relief setting
- EPDM seat
- 3735000 Btu/hr capacity
-
Alternative Part Number1170-125
-
UNSPSC40141600
-
Standards/ApprovalsASME Specified
-
Specification Sheet
-
Instruction/Installation Manual
-
Catalog
