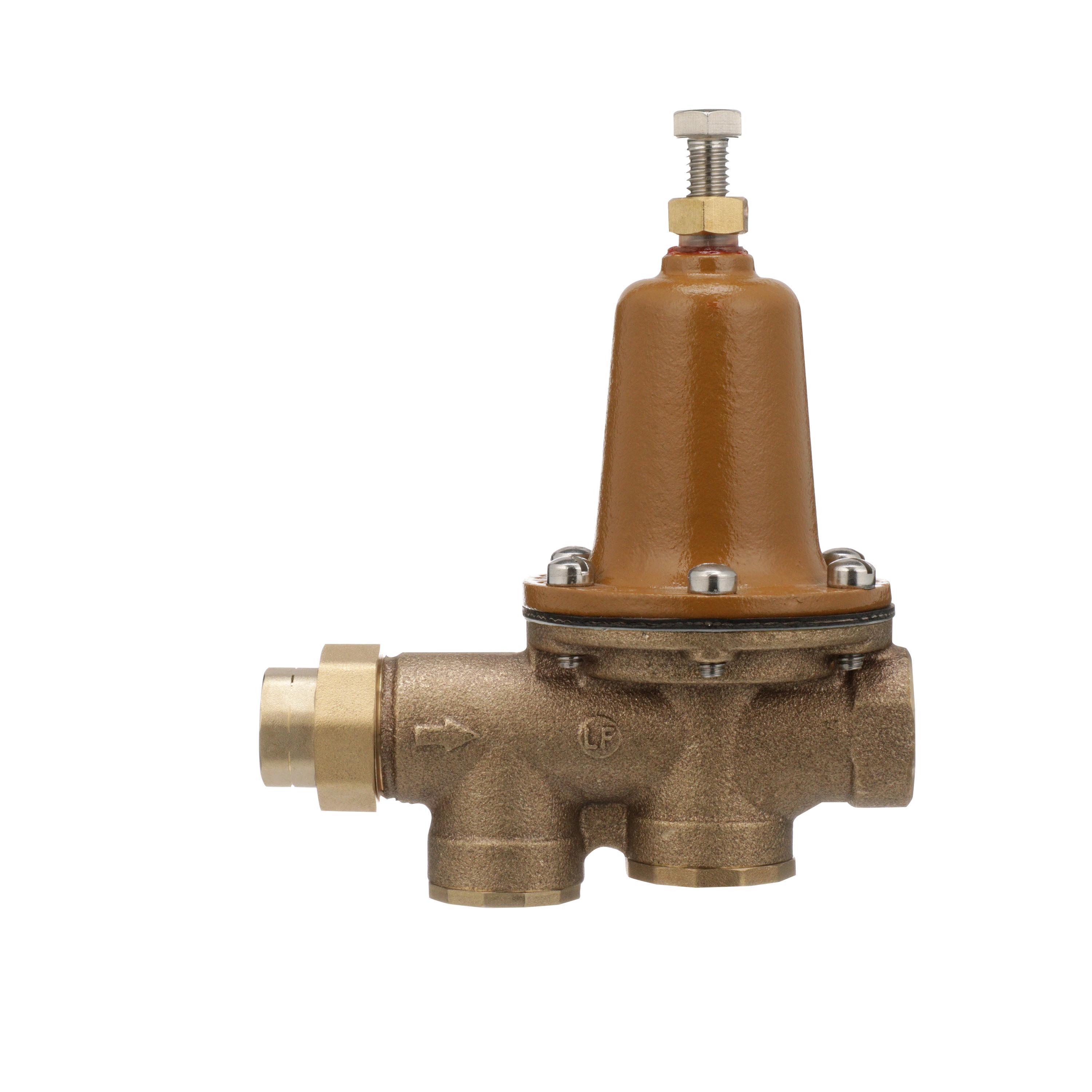

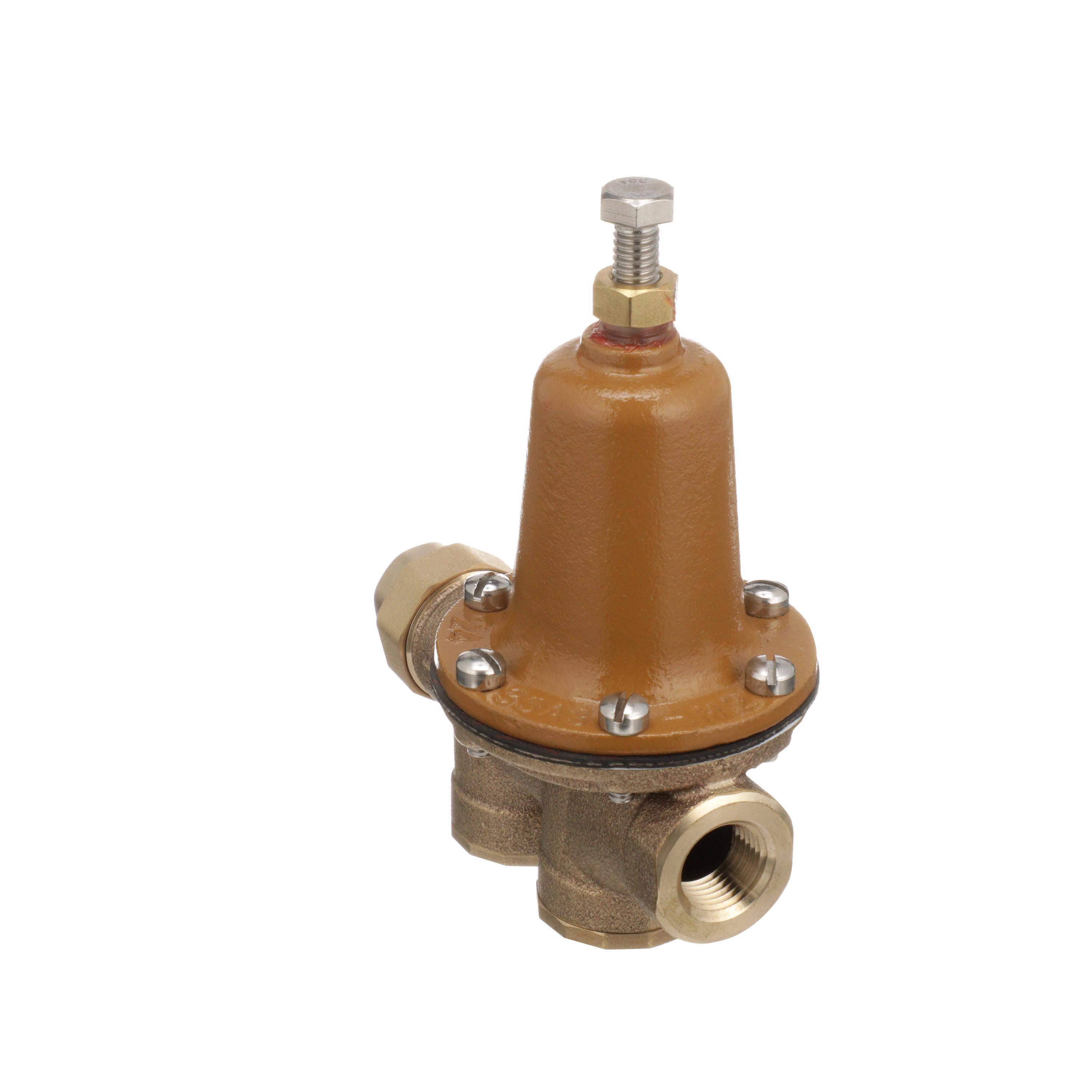

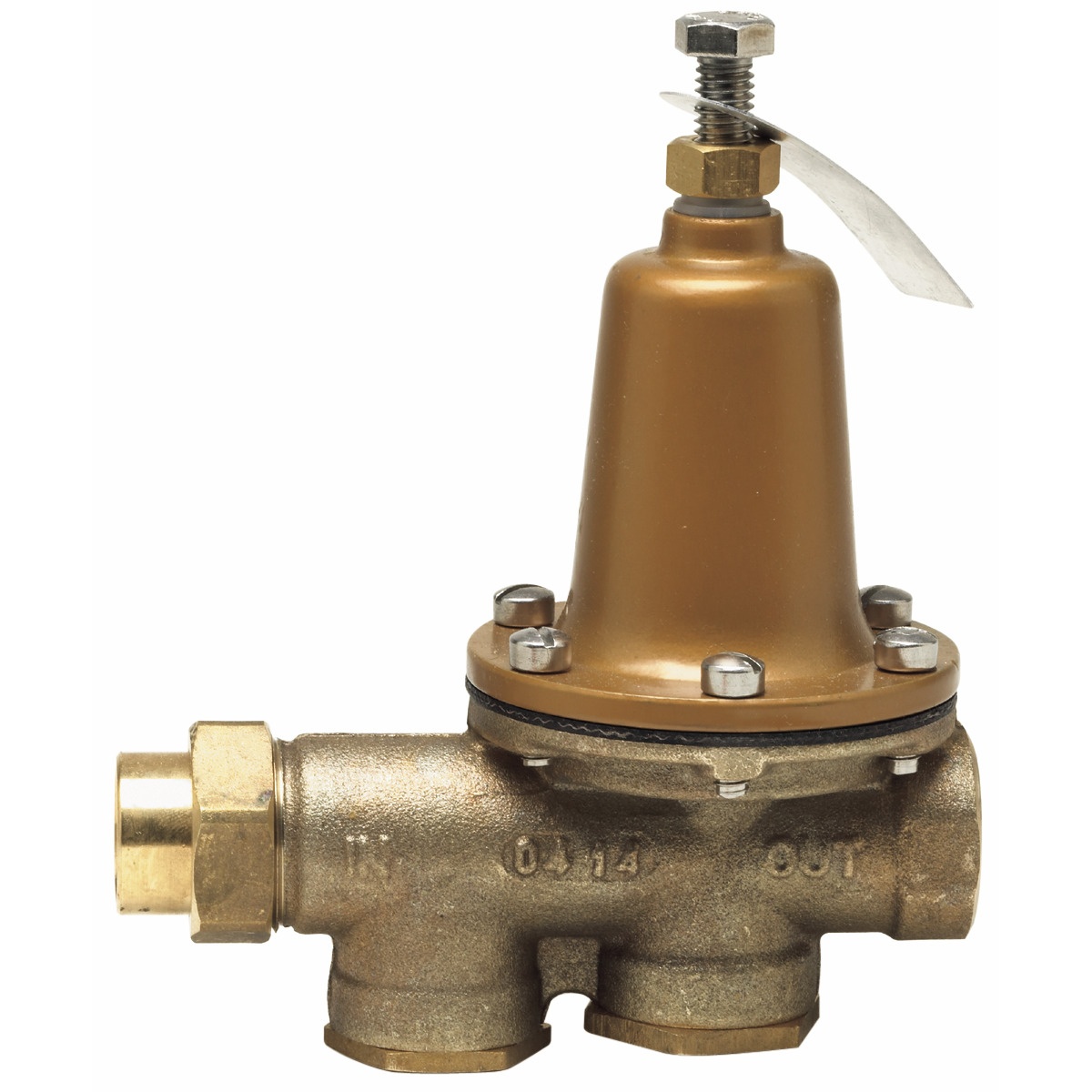

WATTS® 0009217 LF25AUB Lead Free Pressure Reducing Valve, 1/2 in Nominal, FNPT Union x FNPT End Style, 25 to 75 psi Pressure, Cast Copper Silicon Alloy Body
This 1/2 inch lead free brass water pressure reducing valve is the standard model, designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module, NPT threaded female union inlet by NPT female outlet and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C). Suitable for up to 300 psi (20.7 bar), the pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa) with the standard setting at 50 psi (345 kPa).
-
BrandWATTS®
-
UPC098268329162
-
Manufacturer Part Number0009217
-
CountryUSA|Canada
-
Temperature Rating33 to 160 deg F
-
Pressure Range25 to 75 psi
-
Top to Inlet Center7 in
-
MediaWater
-
TypeLead Free
-
Nominal Size1/2 in
-
SeriesLF25AUB
-
Inlet to Outlet Length5-3/8 in
-
Softgoods MaterialReinforced EPDM Diaphragm/Polymer Seat
-
Body MaterialCast Copper Silicon Alloy
-
End StyleFNPT Union x FNPT
- Bypass feature controls thermal expansion pressure
- Replaceable seat module
- Integral stainless steel strainer removable for cleaning
- Serviceable in line
- Serviceable in line
| Competitor Name | Competitor Part Number |
|---|---|
| Ferguson | WLF25AUBZ3D |
| Fastenal | 921542503 |
-
Alternative Part Number20098268329166|LF25AUB-Z3 1/2|98268329162
-
UNSPSC40141652
-
Package DescriptionEACH
-
Standards/ApprovalsANSI A112.26.2|ASSE Standard 1003|CSA Standard B356|IAPMO Listed|MIL-V-18146B Type I|NSF Approved|Southern Standard Plumbing Code|PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
-
Warranty1 Year Limited
-
Specification Sheet
-
Instruction/Installation Manual
