Simmons 506SB 500 SB Check Valve, 2 in Nominal, FNPT End Style, Cast Silicon Bronze Body, Buna-N Softgoods
Simmons 506SB 500 SB Check Valve, 2 in Nominal, FNPT End Style, Cast Silicon Bronze Body, Buna-N Softgoods
-
BrandSimmons
-
UPC008391019472
-
Manufacturer Part Number506SB
-
CountryUSA
-
Pressure Rating600 psi
-
Trim MaterialStainless Steel
-
Nominal Size2 in
-
Series500 SB
-
Dimensions3-1/4 in Dia x 5-1/8 in H
-
Softgoods MaterialBuna-N
-
Body MaterialCast Silicon Bronze
-
End StyleFNPT

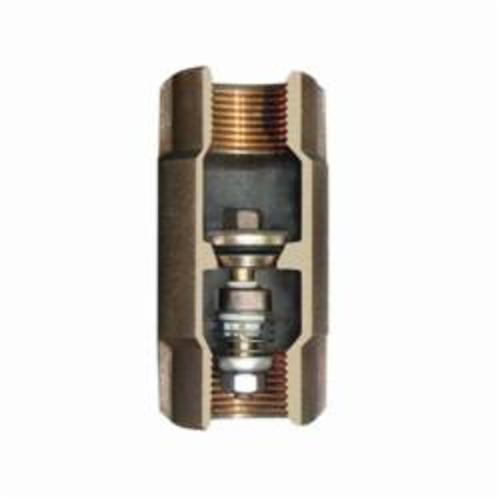

- Silicon bronze cast poppet
- Silicon bronze components contain less than 0.05 percent (1/20 of 1 percent) lead
- All check valves furnished with Buna-N O-ring, stainless steel spring, stainless steel washer and stainless steel locknut
| Competitor Name | Competitor Part Number |
|---|---|
| Ferguson | SI506SB |
-
UNSPSC40141600
-
Package Description1/CT
-
Standards/ApprovalsCalifornia 116875 (AB1953) and Prop 65|Federal Public Law 111-380 (Effective January 2014)|House Bill 372|Louisiana House Bill 471|Maryland Chapter 407|NSF/ANSI 372 (Revision of NSF/ANSI 61)|Vermont Act 193
-
Specification Sheet
-
Catalog
