Sloan Valves #110-XL SLOAN/REGAL TOILET VALVES SLO 3080153

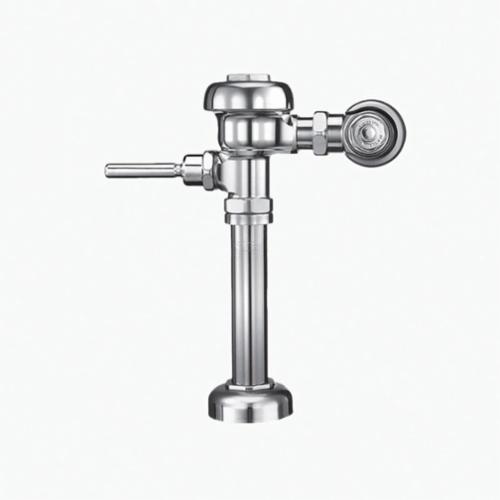

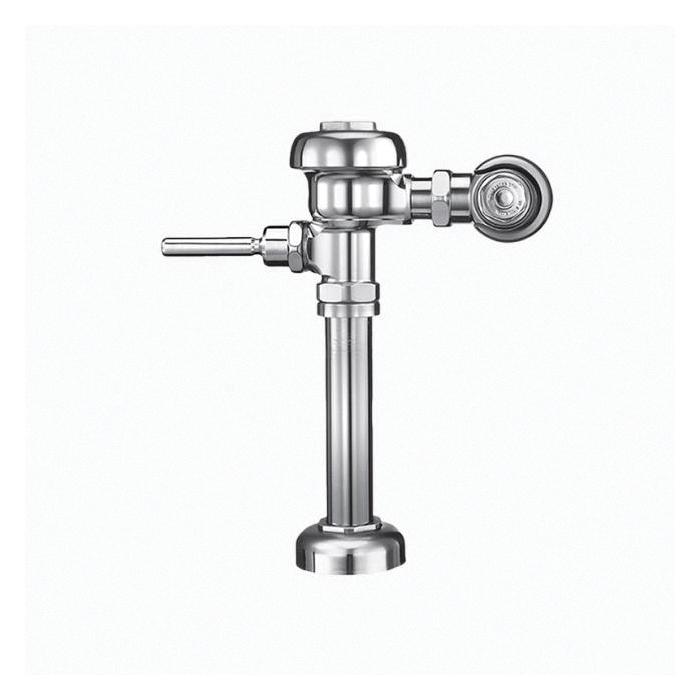

Sloan® 3080153 110 Single-Flush Manual Exposed Flushometer, 3.5 gpf Flush Rate, 1 in IPS Inlet, 1-1/2 in Spud, 15 to 80 psi Pressure, Polished Chrome, Domestic
-
BrandSloan®
-
UPC671254123410
-
Manufacturer Part Number3080153
-
CountryUSA
-
Finish/ColorPolished Chrome
-
MaterialSemi-Red Brass
-
Fixture TypeWater Closet
-
Pressure Rating15 to 80 psi
-
TypeSingle-Flush
-
Handle TypeNon-Hold Open Oscillating
-
Series110
-
Inlet Size1 in IPS
-
Domestic/ImportDomestic
- Flush volumes start as low as 1.6 gpf/6.0 lpf to meet water-efficiency objectives
- Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents toilet from exceeding intended flush volume
- Low consumption flush accuracy controlled by Para-Flo™ technology
- Integrity of the product is maintained with control stop plug
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for red brass
- Exposed water closet flushometer, for floor mounted or wall hung top spud bowls
| Competitor Name | Cross-Reference Number |
|---|---|
| Ferguson | S3080153 |
-
UNSPSC40141640
-
Standards/ApprovalsADA Compliant|BAA Compliant|UPC Listed|Valve Shall be in Compliance with the Applicable Sections of ASSE 1037
-
Specification Sheet
-
Instruction/Installation Manual
-
Line Drawing
