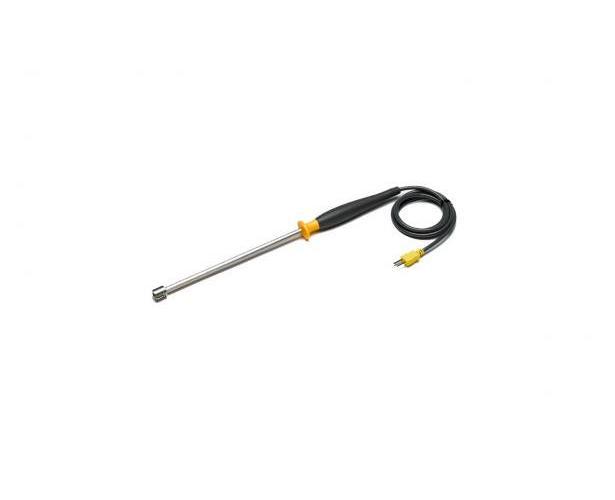

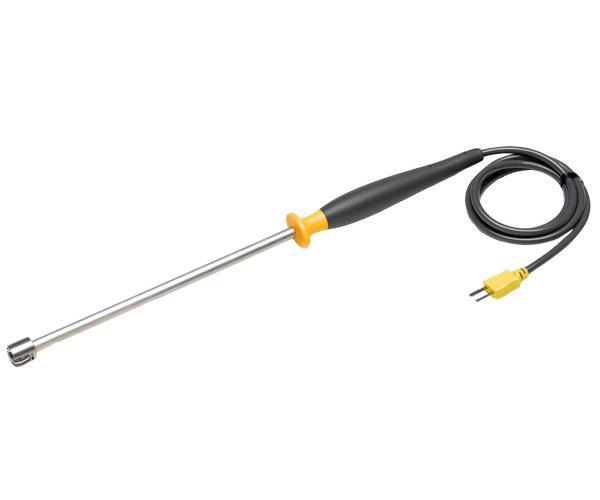

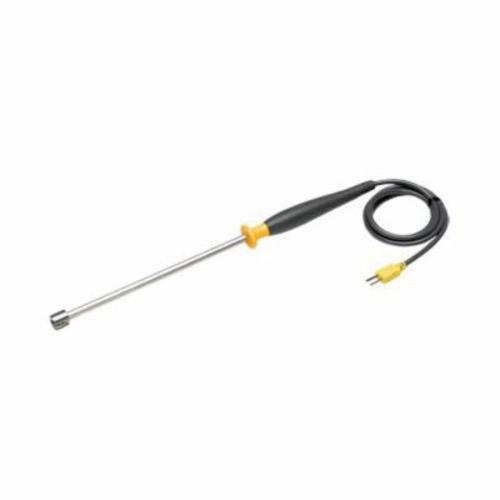

Fluke® SureGrip™ 80PK-27 Industrial Surface Temperature Probe, -127 to 600 deg C, 0.9 in Dia x 12-3/4 in L, 8 deg F, -196 to 32 deg F, 32 to 362 deg F, +/-1.2 % of 363 to 1112 deg F Accuracy, 12 in L Wire
The Fluke® 80PK-27 SureGrip™ industrial surface temperature probe is designed to be compatible with any temperature measuring instrument that accepts type-K thermocouples, has a miniature thermocouple connector and has cold reference junction compensation. The innovative SureGrip™ design makes It easier to hold the probe and focus on the measurement. Ideal for surfaces in rugged environments.
-
BrandFluke®
-
UPC095969242721
-
Manufacturer Part Number80PK-27
-
CountryUSA
-
Temperature Rating-127 to 600 deg C
-
MaterialPVC
-
Probe ConnectorType K Thermocouple
-
Probe Diameter0.9 in
-
Probe Length12-3/4 in
-
Probe Material303 Stainless Steel
-
TypeIndustrial Surface
-
Accuracy8 deg F, -196 to 32 deg F, 32 to 362 deg F, +/-1.2 % of 363 to 1112 deg F
-
Wire Length12 in
- Heavy duty industrial grade probe
- For flat or slightly curved surfaces
- Designed for reliably measuring temperatures to 1112 deg F on flat or slightly convex surfaces, while retaining a long service life
- Compatible with K-type measurement instruments

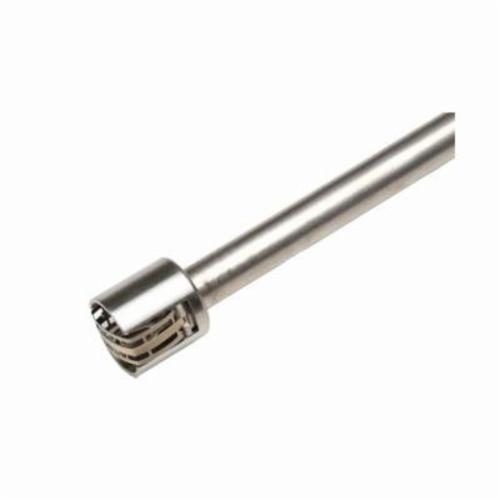

- Durable ribbon sensor
- Hytrel handle, yellow mini thermocouple connector with 0.792 mm pin spacing, 25 deg C = 1 mV (reference junction at 0 deg C) output, 25 deg C = 40.5 UV/deg C seebeck coefficient, 1 time constant equals 330 ms measurement time, 5 time constants equal final reading
- Hook and spudger neatly and compactly store in the chassis, out of the way when not in use
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 4CB76 |
-
Alternative Part Number2098723|9652681
-
UNSPSC41112219
-
IDEA Index ID9652681
-
Package DescriptionBOX
-
Standards/ApprovalsECCN: EAR99
-
Specification Sheet
