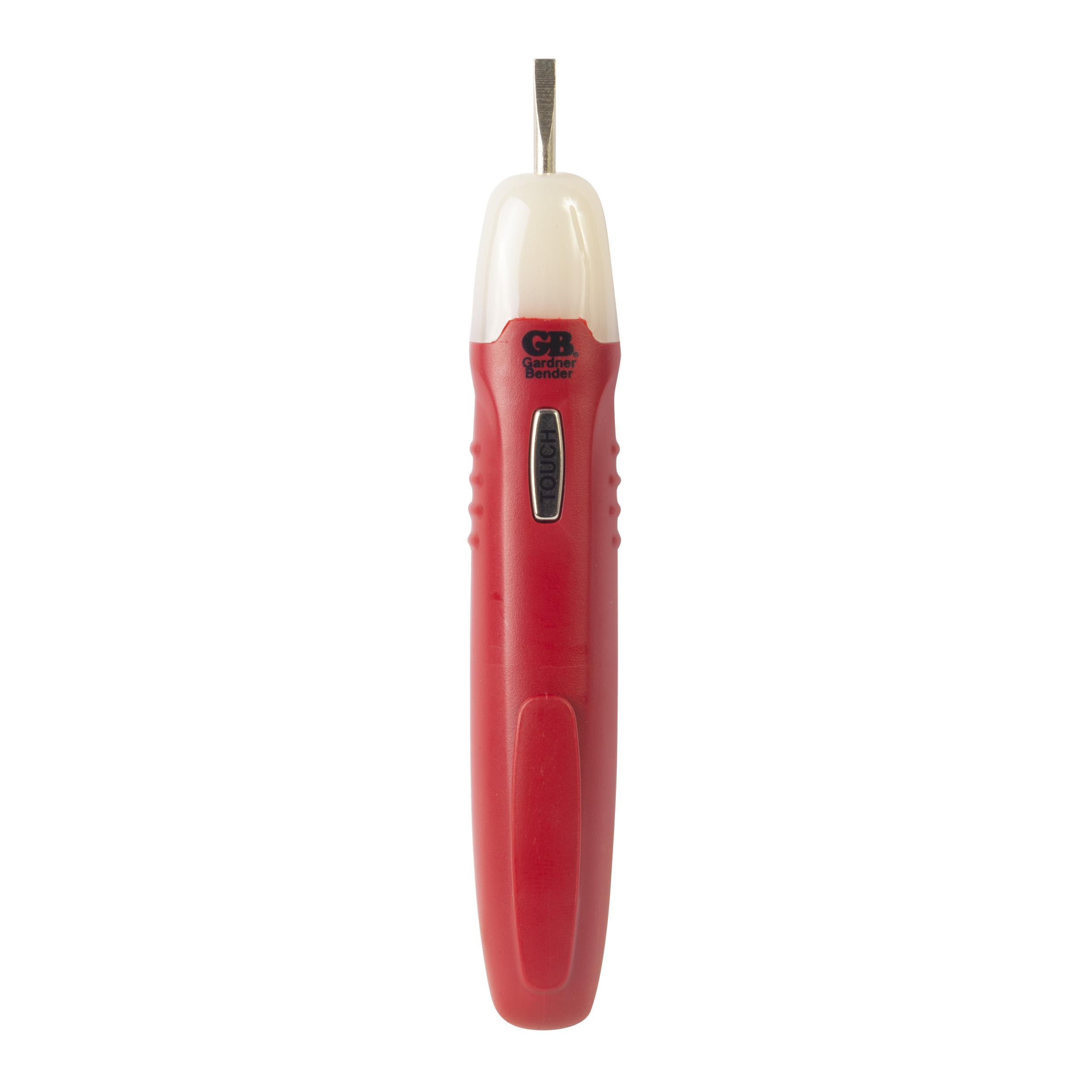

Gardner Bender GCV-3206 Combination Voltage Probe and Continuity Tester With Screwdriver Tip, (2) LR-44 Battery
Testing for voltage to any electrical project is important for your safety. This compact multi-purpose unit makes it easy with a combination voltage probe and continuity tester built into a single unit with a convenient screwdriver tip designed for quick faceplate removal. Its compact size fits easily into a pocket or tool box for retrieval as needed. Use to test outlets, fuses, switches, electronics, extension cords, light fixtures and low voltage lighting circuits.
-
BrandGardner Bender
-
UPC032076068721
-
Manufacturer Part NumberGCV-3206
-
CountryUSA
-
Power Supply(2) LR-44 Battery
-
Frequency Rating60 Hz
-
ColorRed
-
TypeCombination
-
Battery(2) LR-44
-
Environmental Conditions32 to 104 deg F Operating, 80% Relative Humidity Max, 50% Relative Humidity above 30 deg C
- Tests from 12-250 VAC/DC voltage on energized circuits
- LED indicator glows red when voltage or continuity exists
- Bright 360 deg visual indication LED indicator glows when voltage or continuity exists
- Convenient screwdriver tip and pocket clip
| Cross-Reference Number |
|---|
| 517615 |
-
Alternative Part Number16793574
-
UNSPSC41113642
-
IDEA Index ID16793574
-
Standards/ApprovalscULus Listed|ETL Listed|IEC-664|Pollution Degree 2
-
Warranty1 year
-
Specification Sheet
