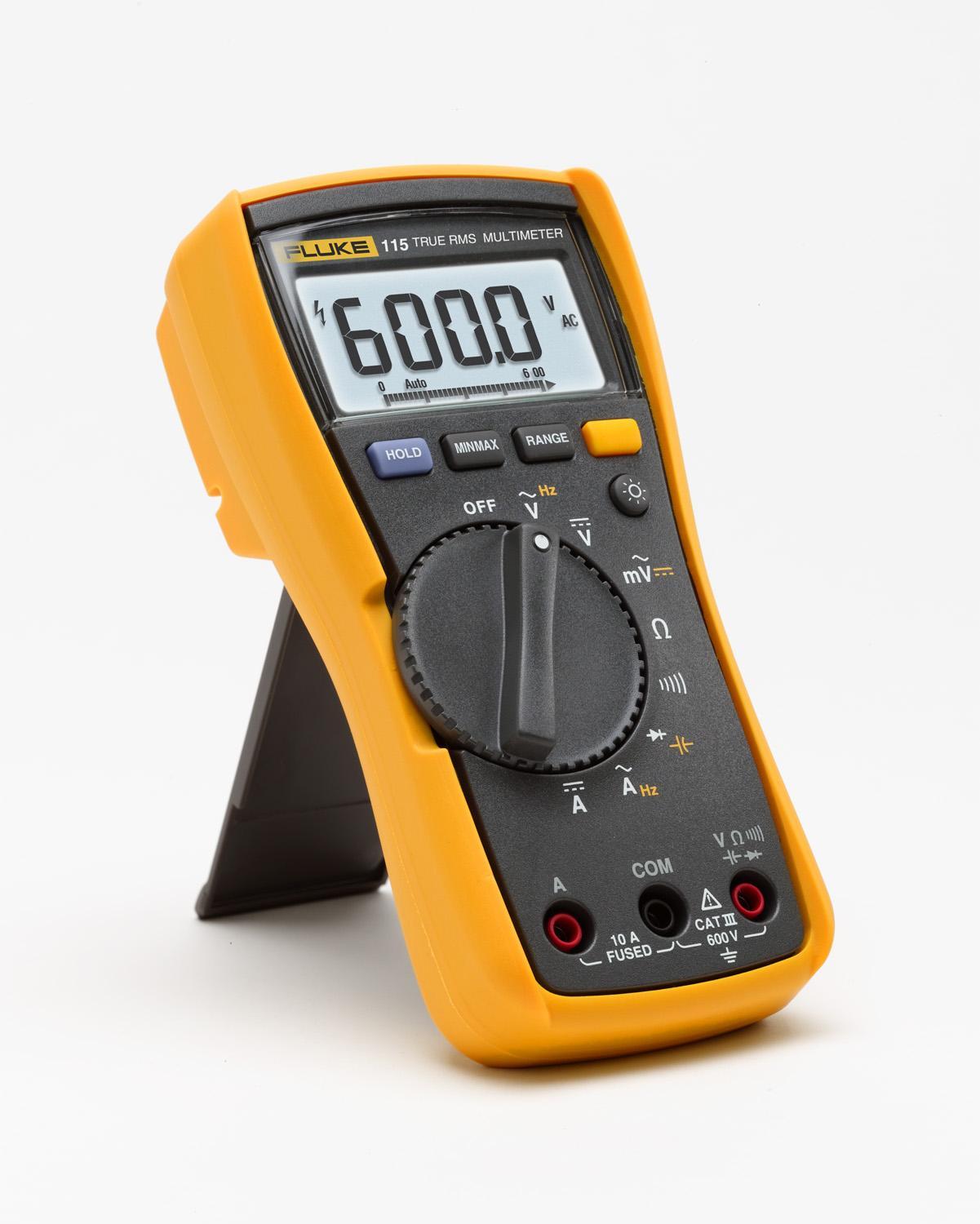

Fluke® FLUKE-115 Digital Multimeter, 600 VDC/VAC, 10 A, 40 MOhm Measuring, 600 V AC/DC, 10 A, 0.1 Ohm to 40 MOhm, Digital Display
Fluke® 115 True-RMS digital multi-meter provides the perfect answer. Its simple operation, compact design and ease of use makes it perfect for quick verifications and field service use. The Fluke® 115 displays True-RMS voltage and current readings with 6000 count resolution, tests diodes, frequency, continuity and capacitance and provides min max average readings to record signal fluctuations. A large white LED backlight aids work in poorly lit areas. Its easy open Battery access door makes Battery changes a snap. Fluke® 115 multimeters are independently tested for safe use in CAT III 600 V environments. And check out other members of the Fluke® 110 family, the Fluke® 113 utility multi-meter, the Fluke® 114 electrical multi-meter, the Fluke® 116 HVAC multi-meter and the Fluke® 117 commercial electrician's multi-meter. Also check out the Fluke® 114 electrical multi-meter, the Fluke® 116 HVAC multi-meter with temperature and microamps and the Fluke® 117, the electrician's multi-meter with non-contact voltage.
-
BrandFluke®
-
UPC095969324182
-
Manufacturer Part NumberFLUKE-115
-
CountryUSA
-
Capacitance1000 uF
-
Temperature Rating14 to 122 deg F
-
MaterialHard Plastic
-
Measuring Range600 VDC/VAC, 10 A, 40 MOhm
-
Frequency Rating5 Hz to 50 kHz
-
Resistance0.1 Ohm to 40 MOhm
-
Accuracy0.5% + 2 VAC
-
Voltage Rating600 V AC/DC
-
Safety RatingCAT III 600 VAC/VDC
-
Amperage Rating10 A
-
Battery Type9 VDC Alkaline/NEDA 1604A/IEC 6LR61
-
Dimensions1.81 in L x 3.35 in W x 6.58 in H
-
Diode TestYes
-
Display TypeDigital
-
Peak HoldNo
- Large white LED backlight to work in poorly lit areas
- Resistance and continuity
- 10 A AC/DC current measurement (20 A overload for 30 s max)
- Minimum maximum/average to record signal fluctuations
- 2 deg pollution
- 0.5% 2 VDC accuracy
- Resistance range - 600 Ohm with accuracy of +/-(0.9% 2), 6 kOhm, 60 kOhm, 600 kOhm, 6 MOhm with accuracy of +/-(0.9% 1), 40 MOhm with accuracy of +/-(1.5% 2)
- Capacitance range 1000 nF, 10 uF, 100 uF, 100 uF to 1000 uF with accuracy of +/-(1.9% 2), greater than 1000 uF with accuracy of +/-(5% 20)
- Frequency range 99.99 Hz, 999.9 Hz, 9.999 kHz, 50 kHz with accuracy of +/-(0.1% 2)
- 400 hr typical alkaline, without backlight
- Digital 6000 count, update 4/s display
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 1GAH9 |
| Grainger | 1GAH9 |
-
Alternative Part Number2538790
-
UNSPSC41113630
-
Package DescriptionBOX
-
Standards/ApprovalsRoHS Compliant|CE Marked|CSA Certified|UL Listed|ECCN: 3A992|PROP65: This product is in compliance with Prop65, it is not known to contain any chemicals associated with this regulation
-
Specification Sheet
