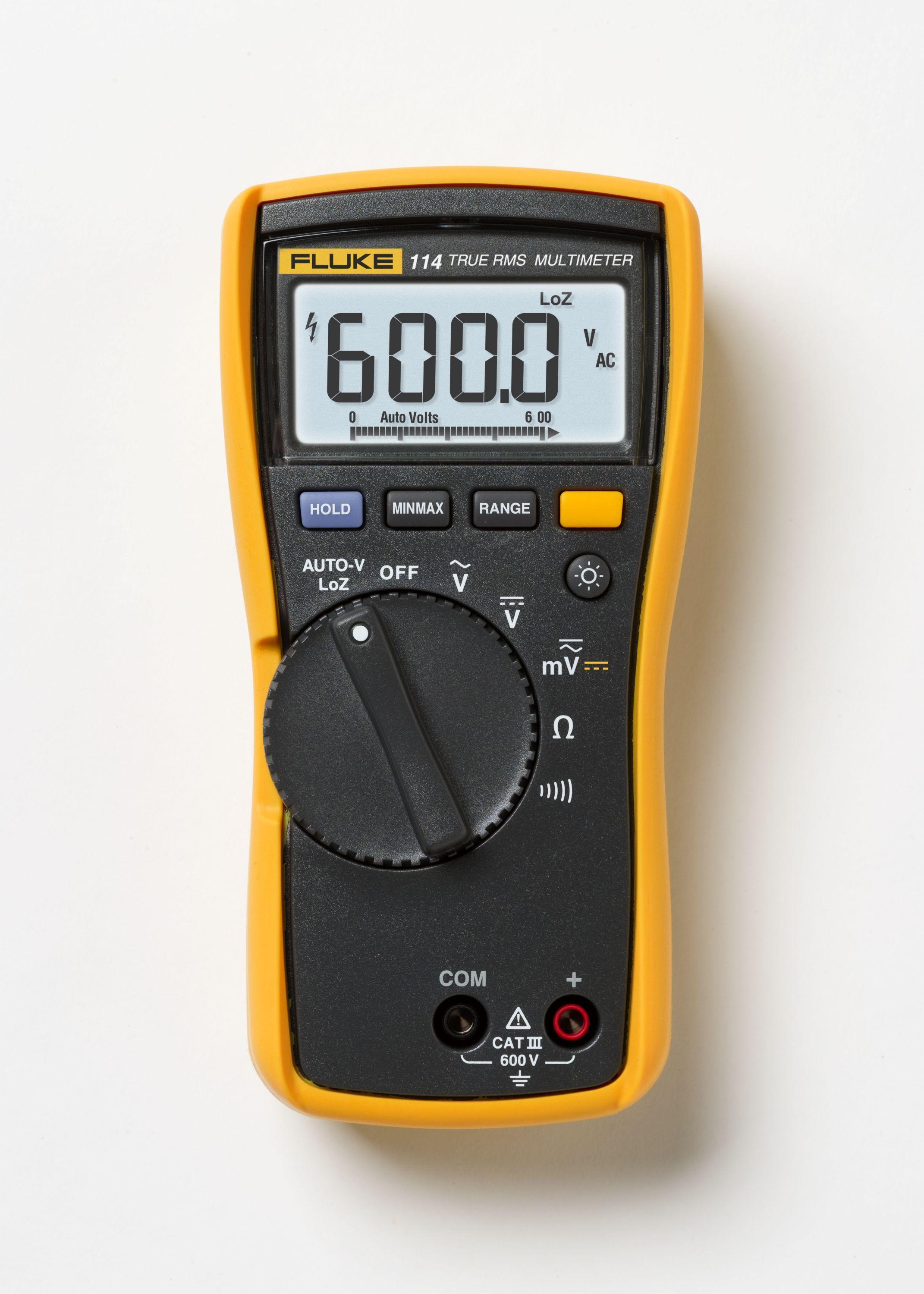

Fluke® FLUKE-114 Compact Digital Multimeter, 600 VDC/VAC, 40 MOhm Measuring, 6/60/600 V AC/DC, 0.1 Ohm to 40 MOhm, Digital Display
Fluke® 114 True-RMS digital multi-meter is the perfect troubleshooting tool for go/no go testing. Its AutoVolt capability automatically switches to measure AC or DC voltage, whichever is present. The LoZ function helps identify so called ghost voltage and prevent false readings. The Fluke® 114 displays True-RMS voltage and current readings with 6000 count resolution and tests frequency, continuity and resistance. A large white LED backlight aids work in poorly lit areas. Its easy open Battery access door makes Battery changes easy. Fluke® 114 multimeters are independently tested for safe use in CAT III 600 V environments. And check out other members of the Fluke® 110 family, the Fluke® 113 utility multi-meter, the Fluke® 115 field service multi-meter, the Fluke® 116 HVAC multi-meter and the Fluke® 117 commercial electrician's multi-meter.
-
BrandFluke®
-
UPC095969324175
-
Manufacturer Part NumberFLUKE-114
-
CountryUSA
-
Capacitance9999 uF
-
Temperature Rating14 to 122 deg F
-
MaterialHard Plastic
-
Measuring Range600 VDC/VAC, 40 MOhm
-
Frequency Rating5 Hz to 50 kHz
-
Resistance0.1 Ohm to 40 MOhm
-
TypeCompact
-
Accuracy0.5% + 2 VAC
-
Voltage Rating6/60/600 V AC/DC
-
Safety RatingCAT III 600 VAC/VDC
-
Battery Type9 VDC Alkaline/NEDA 1604A/IEC 6LR61
-
Dimensions1.81 in L x 3.35 in W x 6.58 in H
-
Diode TestNo
-
Display TypeDigital
-
Peak HoldNo
- AutoVolt automatic AC/DC voltage selection
- Low input impedance helps prevent false readings due to ghost voltage
- Work in poorly lit areas with the large white LED backlit display
- Resistance and continuity
- Record signal fluctuations using minimum maximum/average
- Integral holster with probe holders for easy storage
- Auto and manual ranging
- 2 deg pollution
- 0.5% 2 VDC accuracy
- AC voltage at 45 Hz to 500 Hz- 600 V with accuracy of +/-( 2% 3), at 500 Hz to 1 kHz- 600 V with accuracy of +/-(4% 3), at 45 Hz to 500 Hz- 600 mV, 6 V, 60 V, 600 V with accuracy of +/-(1% 3), at 500 Hz to 1 kHz- 600 mV, 6 V, 60 V, 600 V with accuracy of +/-(2% 3)
- Resistance range - 600 Ohm with accuracy of +/-(0.9% 2), 6 kOhm, 60 kOhm, 600 kOhm, 6 MOhm with accuracy of +/-(0.9% 1), 40 MOhm with accuracy of +/-(1.5% 2)
- 400 hr typical alkaline, without backlight
- Digital 6000 count, update 4/s display
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 1GAH8 |
| Grainger | 1GAH8 |
-
Alternative Part Number2538783
-
UNSPSC41113630
-
Package DescriptionBOX
-
Standards/ApprovalsCE Marked|CSA Certified|UL Listed|ECCN: 3A992|PROP65: This product is in compliance with Prop65, it is not known to contain any chemicals associated with this regulation
-
Specification Sheet
