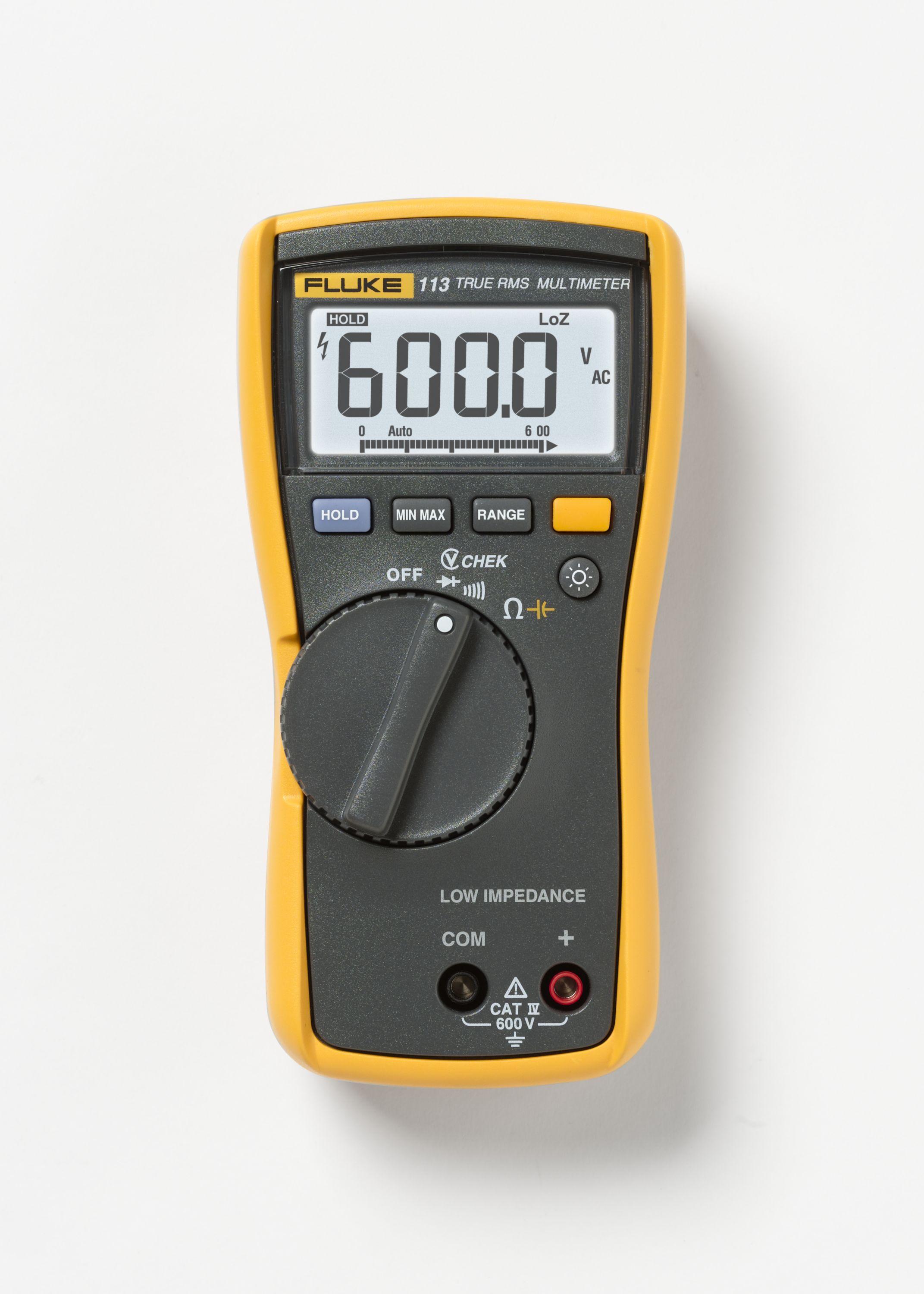

Fluke® VCHEK™ FLUKE-113 Utility Digital Multimeter, 600 VDC/VAC, 60 kOhm Measuring, 6/60/600 V AC/DC, 600 Ohm/6/60 kOhm, Backlight/Digital Display

Name: Fluke® VCHEK™ FLUKE-113 Utility Digital Multimeter, 600 VDC/VAC, 60 kOhm Measuring, 6/60/600 V AC/DC, 600 Ohm/6/60 kOhm, Backlight/Digital Display
Brand: Fluke
SKU: FLUFLUKE113
Price: 223.65 USD
Availability: InStock

0 Ratings

$223.65

SKU: FLUFLUKE113

GTIN (EAN,ISBN): 00095969434522

Fluke® 113 digital multi-meter gives users the means to quickly and easily do basic meter set and reconnect testing. This meter is simple to use and has the features needed to repair most electrical problems. The Fluke® 113 has significant improvements over other digital multimeters available on the market, including Fluke® model 7-600. Using the Fluke® VCHEK™ LoZ low impedance measurement function, users can simultaneously test for voltage or continuity. The min max function lets you record signal fluctuations. The Fluke® 113 can perform diode tests and also provides both auto and manual ranging capabilities. With features such as conformance to the latest safety standards, backlight and a much larger display that's easier to view, this meter is a must have for every toolbox.

In Stock

HCI of Jackson: 0

HCI of Dyersburg: 0

HCI of Humboldt: 0

HCI of Union City: 0

HCI of Gallatin: 0

Back to: Digital Multimeters

Main specs

Brand

Fluke®
UPC

095969434522
Manufacturer Part Number

FLUKE-113
Country

USA

Specification

Capacitance

1000 nF, 10/100/9999 uF
Temperature Rating

14 to 122 deg F
Material

Hard Plastic
Measuring Range

600 VDC/VAC, 60 kOhm
Resistance

600 Ohm/6/60 kOhm
Type

Utility
Accuracy

2% + 3 (45 to 500 Hz), 4% +3 (500 Hz to 1 kHz) VAC
Voltage Rating

6/60/600 V AC/DC
Safety Rating

CAT III 600 VAC/VDC, CAT IV 300 VAC/VDC Pollution deg 2
Battery Type

9 VDC Alkaline/ANSI 1604A/IEC 6F22
Dimensions

1.81 in L x 3.35 in W x 6.58 in H
Diode Test

Yes
Display Type

Backlight/Digital
Peak Hold

No

Features

VCHEK™ LoZ low impedance measurement function to simultaneously test for voltage or continuity
True-RMS for accurate AC measurements on non-linear loads
Large backlit display allows for easy visibility in low lit areas
Record signal fluctuations using the minimum maximum function
Diode test for testing general purpose germanium, silicon and power diodes
Integral holster with probe holders for easy storage
Auto and manual ranging for added user functionality
Meets measurement category CAT III 600 VAC and category IV 300 VAC standards for a higher level of safety
2% 3 (45 to 500 Hz), 4% 3 (500 Hz to 1 kHz) accuracy
Resistance range - 600 Ohm with accuracy of +/-(0.9% 2), 6 kOhm, 60 kOhm with accuracy of +/-(0.9% 1)
Capacitance range 1000 nF, 10 uF, 100 uF, 100 uF to 1000 uF with accuracy of +/-(1.9% 2), greater than 1000 uF with accuracy of +/-(5% 20)
300 hr typical alkaline, without backlight
3-3/4 digits 6000 count display

Competitor Information

Competitor Name	Competitor Part Number
Grainger	2VGA1
Grainger	2VGA1

Additional Information

Alternative Part Number

3078875
UNSPSC

41113630
Includes

Fluke® 113 Utility Multi-meter TL75 Test Leads, (1) 9 VDC Battery and Printed Users Manual
Package Description

BOX
Standards/Approvals

CE Marked|cCSAus Certified|UL Listed|ANSI/ISA 82.02.01 (61010-1) 2004|CAN/CSA C22.2 File No. 61010-1-04|UL File No. 61010-1 (2004)|IEC/EN 61010-1 2nd Edition|EMC EN 61326-1|ECCN: EAR99|PROP65: This product is in compliance with Prop65, it is not known to contain any chemicals associated with this regulation

Attachments

Specification Sheet

Click here
