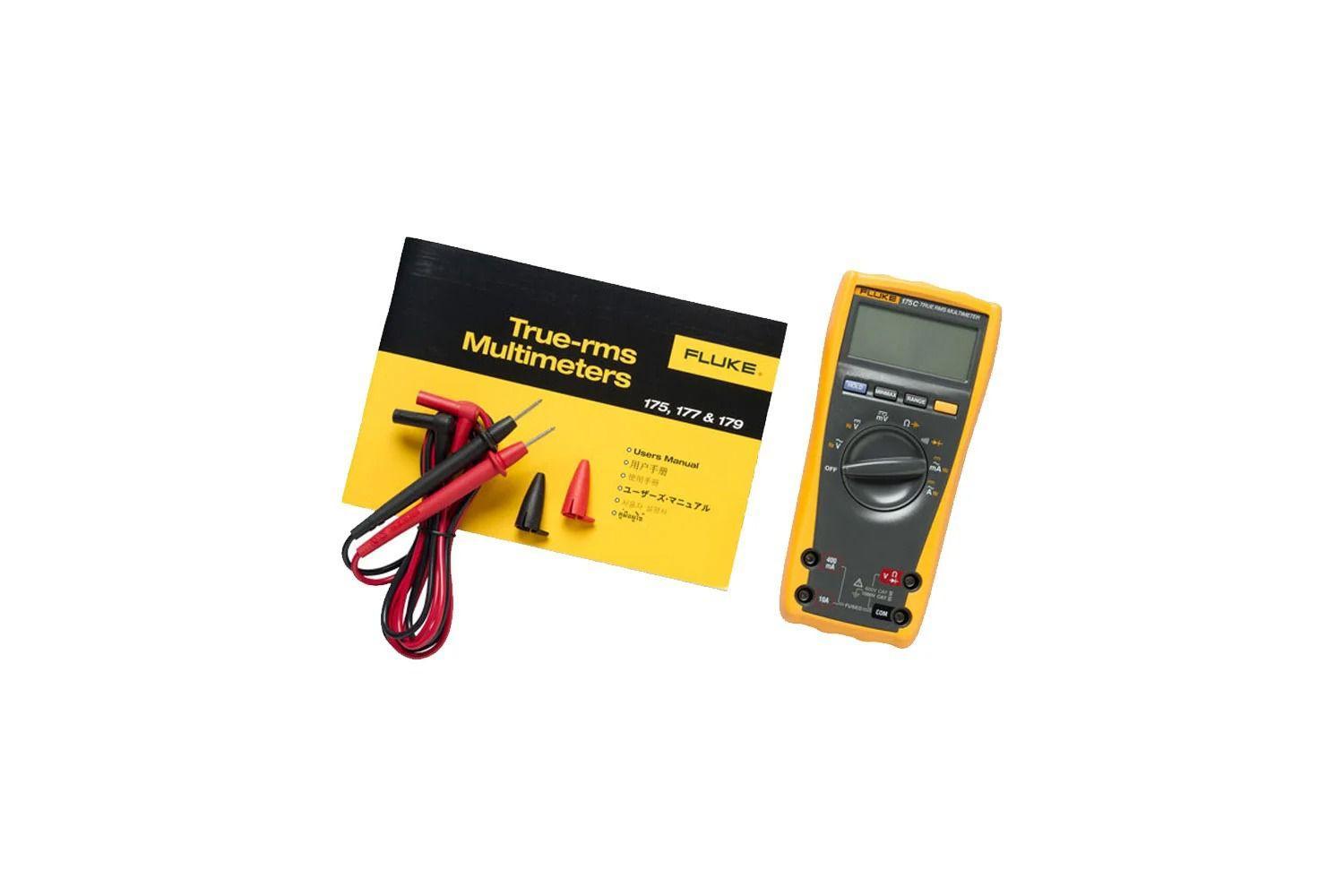

Fluke® FLUKE-175-ESFP Digital Multimeter, 1000 VDC/VAC, 10 A, 50 MOhm Measuring, 1000 V AC/DC, 10 A, 50 MOhm, Digital Display
Fluke® 170 series True-RMS™ digital multi-meters is preferred solution for the precise, reliable and easy of use . This is the industry standard, with all the features you need to troubleshoot and repair so many problems in electrical and electronic systems. Fluke® 170 series digital multi-meters give you True-RMS™ voltage and current measurements, 6000 count resolution, manual and automatic ranging and provide frequency, capacitance, resistance, continuity and diode measurements. In addition, the Fluke® 177 and 179 provide higher 0.09 basic accuracy, a digital display with analog bar graph and backlight. And the Fluke® 179 delivers temperature measurements.
-
BrandFluke®
-
UPC095969095181
-
Manufacturer Part NumberFLUKE-175-ESFP
-
CountryUSA
-
Capacitance10000 uF
-
Temperature Rating-10 to 50 deg C
-
MaterialHard Plastic
-
Measuring Range1000 VDC/VAC, 10 A, 50 MOhm
-
Frequency Rating100 kHz
-
Resistance50 MOhm
-
Accuracy2% + 3 (500 Hz to 1 kHz)
-
Voltage Rating1000 V AC/DC
-
Safety RatingEN 61010-1 to CAT IV 600 VAC/VDC, CAT III 1000 VAC/VDC
-
Amperage Rating10 A
-
Battery Type9 VDC Alkaline NEDA 1604/1604A
-
Dimensions3.54 in W x 1.7 in D x 7.28 in H
-
Diode TestYes
-
Display TypeDigital
-
Peak HoldNo
- Manual and automatic ranging
- Display hold and auto-hold
- Frequency and capacitance measurements
- Minimum maximum/average recording
- Closed case calibration through front panel
- Ergonomic case with integrated protective holster
- Digital 6000 count, update 4/s, bar graph 33 segments, update 40/s
- Resistance range - 600 Ohm with accuracy of (0.9% 2), 6 kOhm, 60 kOhm, 600 kOhm, 6 MOhm with accuracy of (0.9% 1), 50 MOhm with accuracy of (1.5% 3)
- Capacitance range 1000 nF, 10 uF, 100 uF with accuracy of (1.2% 2), 9999 uF with accuracy of 10% typical
- Frequency range 99.99, 999.9, 9.999, 99.99 kHz with accuracy of (0.1% 1)
- 200 hours typical alkaline
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 6MR05 |
-
Alternative Part Number1564551|9652550
-
UNSPSC41113630
-
IDEA Index ID9652550
-
Package DescriptionBOX
-
Standards/ApprovalsAustralian N10140 Registered|CSA Certified|ECCN 3A992|EN 61010-1|TUV File No. EN 61010|UL Listed
-
Specification Sheet
