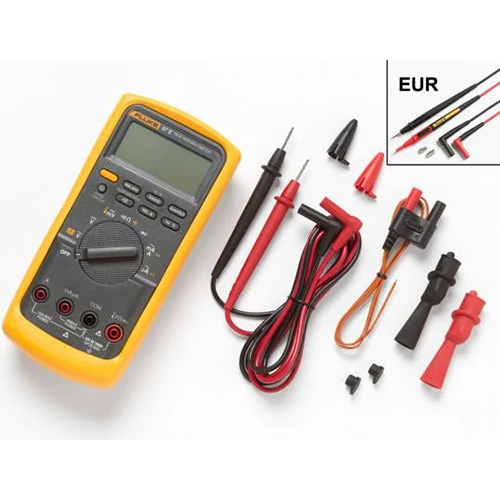

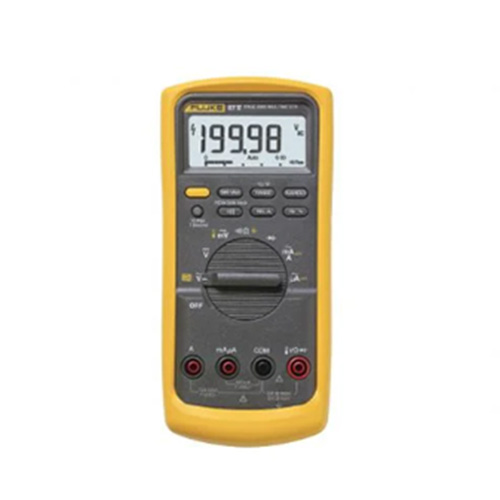

Fluke® FLUKE-87-5 Industrial Digital Multimeter, 1000 V AC/DC, 10 A, 50 MOhm, Analog/Digital Display
When productivity is on the line and you need to solve problems fast, the Fluke® 87V delivers the accuracy and advanced troubleshooting capabilities you need. Designed specifically to handle complex signals, the 87V industrial multi-meter, allows you to gain productivity by taking the guesswork out of drive system troubleshooting even in loud, high energy and high altitude locations.
-
BrandFluke®
-
UPC095969245241
-
Manufacturer Part NumberFLUKE-87-5
-
CountryUSA
-
Capacitance9999 uF
-
Temperature Rating-328 to 1994 deg F
-
MaterialHard Plastic
-
Frequency Rating200 kHz
-
Resistance50 MOhm
-
Resolution10 uV/0.1 mV
-
TypeIndustrial
-
Accuracy+/-0.7% + 2 for VAC True RMS, +/-0.05%+1 for VDC
-
Voltage Rating1000 V AC/DC
-
Safety RatingEN 61010-1 to CAT IV 600 VAC/VDC, CAT III 1000 VAC/VDC
-
Amperage Rating10 A
-
Bandwidth20 kHz
-
Battery Type9 VDC Zinc NEDA 1604/6F22/006P V
-
Dimensions3.41 in W x 1.25 in D x 7.35 in H
-
Diode TestYes
-
Display TypeAnalog/Digital
-
Peak HoldYes
- Unique function for accurate voltage and frequency measurements on adjustable speed motor drives and other electrically noisy equipment
- Built-in thermometer conveniently allows you to take temperature readings without having to carry a separate instrument
- Optional magnetic hanger for easy setup and viewing while freeing your hands for other tasks
- Large digit display with bright, 2 level backlight makes the 87 V significantly easier to read than older models
- True-RMS AC voltage and current for accurate measurements on non-linear signals
- Selectable filter for accurate voltage and frequency measurements on motor drives
- 0.05% DC accuracy
- 4-1/2 digit mode for precise measurements (20000 counts)
- Measure up to 1000 VAC/VDC
- Measure up to 10 A, 20 A for up to 30 s
- Built-in thermometer lets you carry one less tool (TC probe included), resistance, continuity and diode test, min/max average recording with min max alert to capture variations automatically
- Peak capture to record transients as fast as 250 us, relative mode to remove test lead interference from low Ohm measurements
- Auto and manual ranging for maximum flexibility
- Touch hold to capture stable readings avoiding noisy signals
- Classic design with new removable holster with built-in test lead and probe storage
- Large display digits and 2 level bright white backlight for increased visibility
- Analog bargraph for fast changing or unstable signals
- Input alert provides audible warning against wrong use of input jacks
- Improved selectable sleep mode for long battery life
- 400 hours typical battery life with alkaline (with backlight off)
| Competitor Name | Competitor Part Number |
|---|---|
| Fastenal | 0701766 |
-
Alternative Part Number2074974
-
UNSPSC41113630
-
Package DescriptionBOX
-
Standards/ApprovalsANSI/ISA S82.01-2004|CSA C22.2 No. 1010.1:2004|ECCN 3A992|EN 61010-1|TUV Approved|UL 3111-1|UL Listed|VDE Certified
-
WarrantyLifetime
-
Specification Sheet
