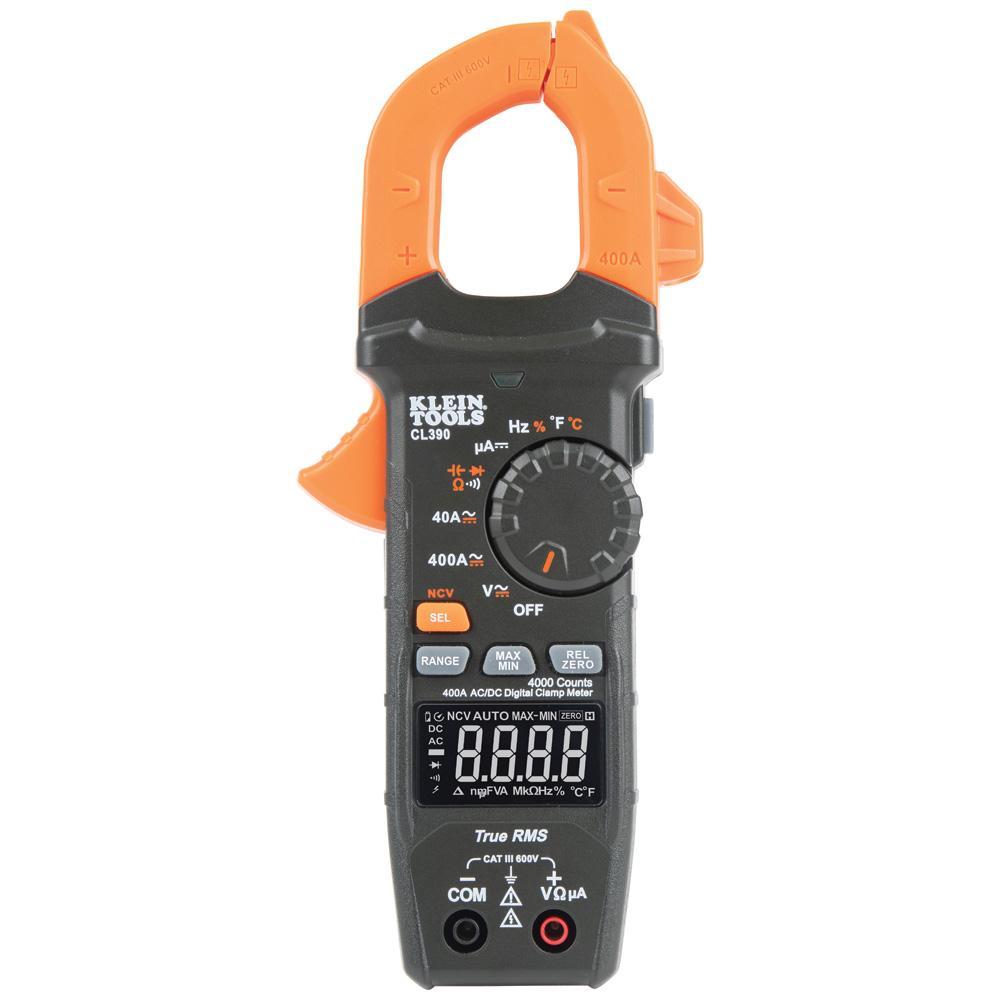

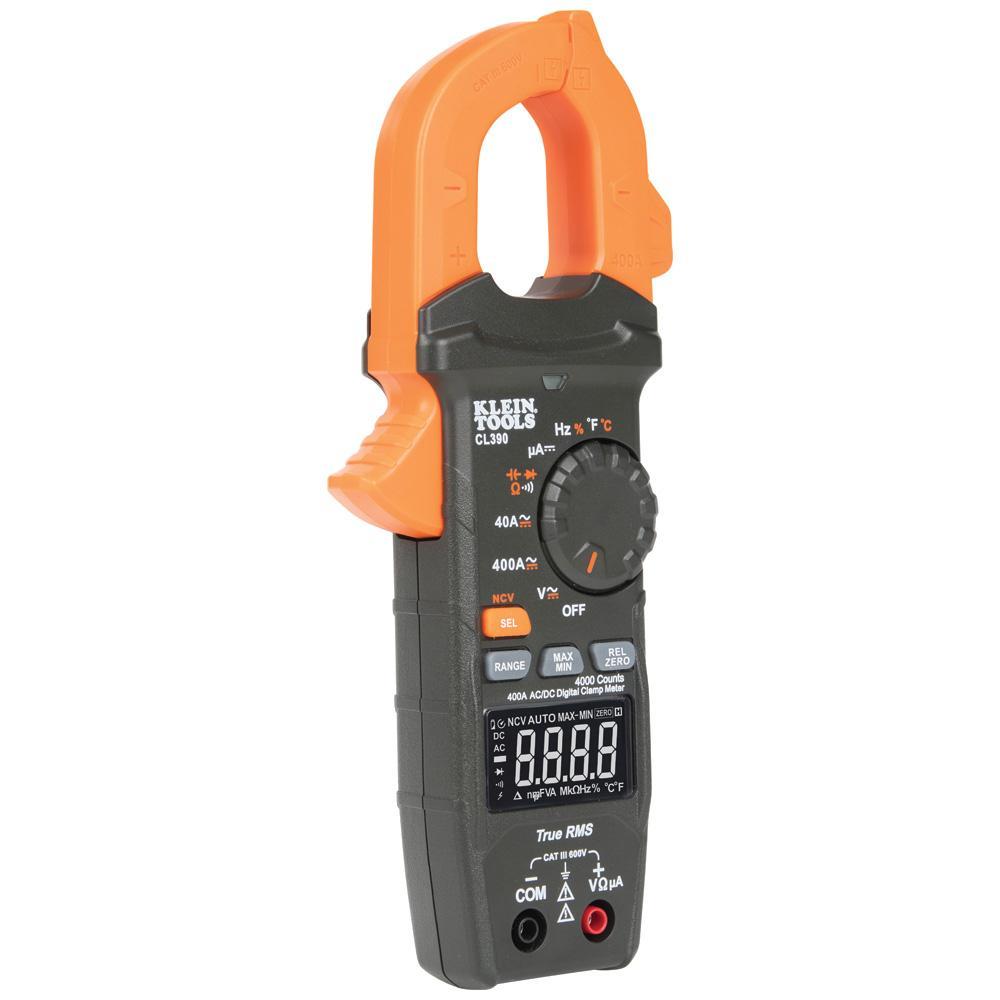

Klein® CL390 Auto-Ranging AC/DC Digital Clamp Meter, 600 V AC/DC, 400 A, 4000 uF, 200 uA, 40 Mohm, 10 Hz to 60 kHz, 1.61 in Jaw, Reverse Contrast LCD Display

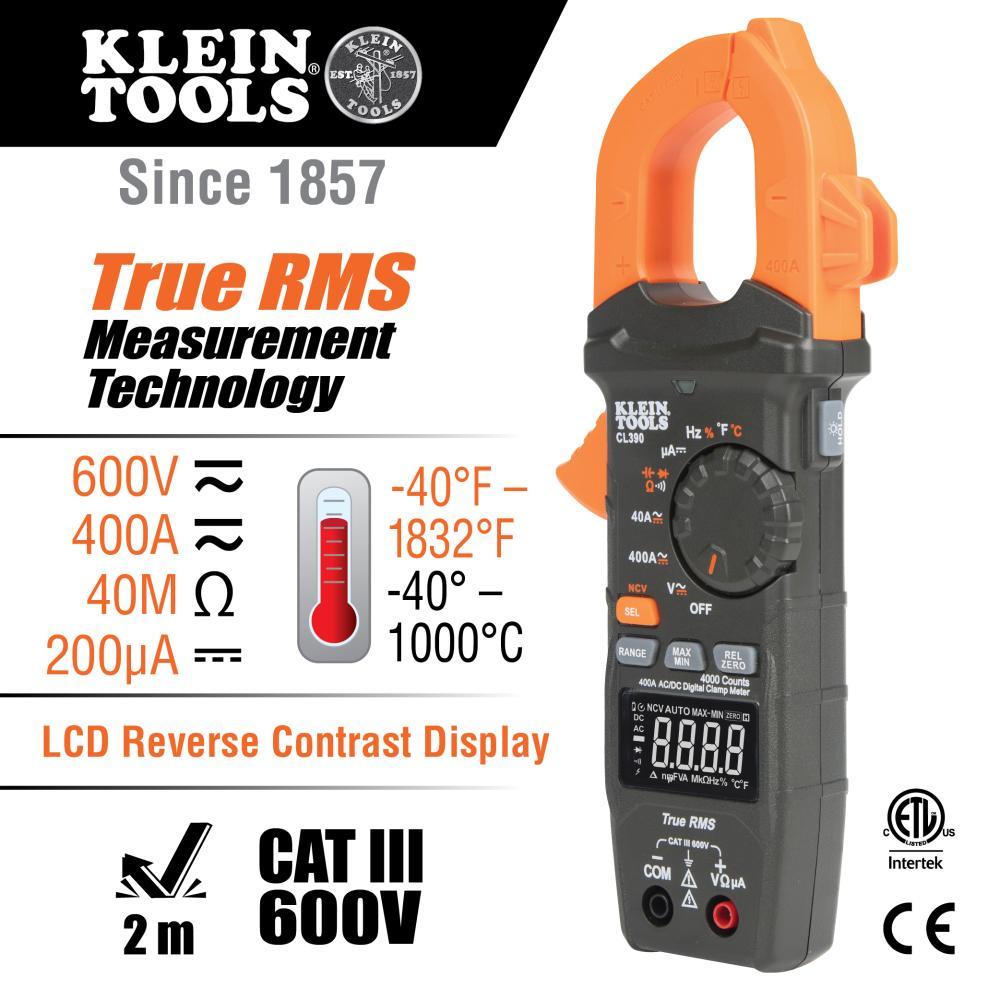

Klein Tools CL390 is an automatically ranging true root mean squared (TRMS) digital clamp meter. It measures AC/DC current and NCVT via the clamp, AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance, and diodes via test leads, and temperature via a thermocouple probe. It features a high visibility, reverse contrast LCD display that optimizes view ability both in dark or bright ambient lighting.
-
BrandKlein®
-
UPC092644692871
-
Manufacturer Part NumberCL390
-
CountryUSA|Canada
-
MaterialABS
-
Power Source(3) AAA Battery
-
Frequency Rating10 Hz to 60 kHz
-
Resistance40 MOhm
-
TypeAuto-Ranging
-
AC Current Accuracy+/-2 % + 9 Digits
-
Voltage Accuracy+/-1.5 % + 5 Digits at V AC, +/-1 % + 3 Digits at V DC
-
Safety RatingCATIII 600 V, Class 2, Double Insulation
-
Counts4000
-
Dimensions8.45 in L x 3.51 in W x 1.51 in H
-
Display TypeReverse Contrast LCD
-
Jaw Capacity1.61 in
-
Operating Temperature-40 to 1832 deg F
-
Electrical Ratings600 V AC/DC, 400 A, 4000 uF, 200 uA
- Test lead holder on side of clamp and optional magnetic hanger for meter (Catalog Numbers 69445 or 69417) for hands free operation
- Non-contact voltage tester integrated into the clamp jaw
- High-visibility reverse contrast LCD display for improved view ability in all ambient lighting conditions
- Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
- Measures AC/DC current and NCVT via clamp and AC/DC voltage, resistance, frequency, DC microamps, capacitance, duty cycle, diode test, and continuity via test-leads, and temperature with thermocouple
- Max/Min, Rel/Zero and Data Hold capability
- Auto-power off after 10 min to conserve battery life
- Low battery indicator and easily accessible battery compartment
- Built to withstand a 6.6-Foot (2 m) drop
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 807H48 |
-
UNSPSC41113678
-
IncludesCarrying Case, Test Lead with CAT III/CAT IV Safety Cap, Thermocouple, Instructions and (3) AAA Batteries
-
Package DescriptionEACH
-
Standards/ApprovalsCE Certified|cETLus Listed
-
Warranty2 years Limited
-
SDS
-
Catalog
-
Specification Sheet
-
Instruction/Installation Manual
-
Owners/User Manual
