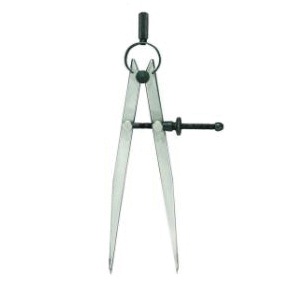

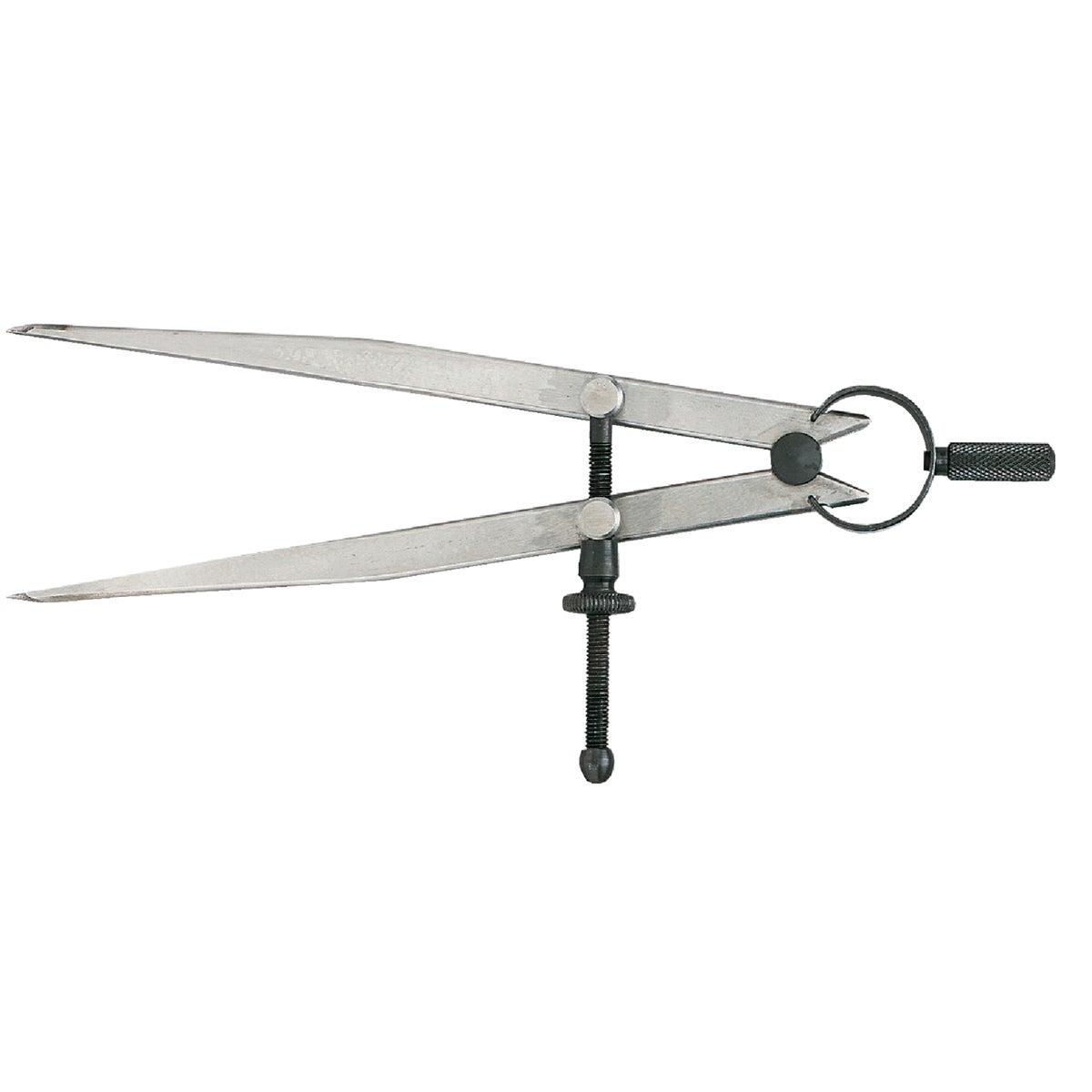

GENERAL® 450-6 Divider Caliper, 0 to 6-1/4 in Measuring, Steel
GENERAL® 450-6 Divider Caliper, 0 to 6-1/4 in Measuring, Steel
-
BrandGENERAL®
-
UPC038728316011
-
Manufacturer Part Number450-6
-
CountryCanada
-
MaterialSteel
-
Measuring Range0 to 6-1/4 in
-
Dimensions6-1/4 in H x 6 in W
-
Nut TypeSelf-Seating
-
Leg TypeFlat
- Divider caliper can measure inside and outside dimensions
- Legs made of special caliper steel, with hardened measurement points
- Hardened and tempered bow springs and fulcrum spools assure uniform tension without side play
- Adjusting screw's self-seating washer and nut enable quick and positive adjustment
- Legs are forged of special caliper steel
- Hardened and tempered bow springs
- Hardened points
| Cross-Reference Number |
|---|
| 319066 |
-
UNSPSC41111621
-
