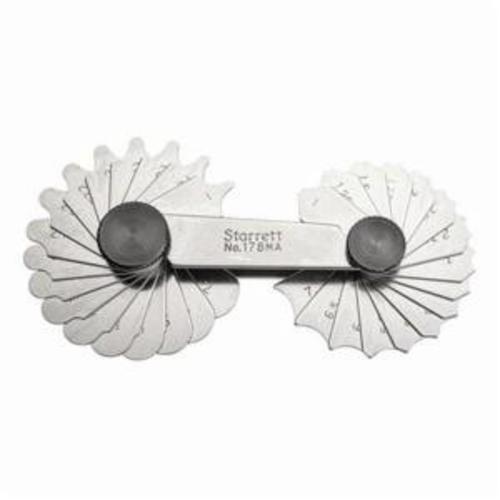

Starrett RADIUS GAGES STR 178-MA
The Starrett 178 Series Fillet or Radius Inch Reading Gages are very useful for tool and diemakers, machinists, screw machine operators, patternmakers and other mechanics to lay out and check radii of tools, dies, patterns, and more. 34 Leaves, 1-7mm Range, 0.25mm/0.5mm increments.
-
BrandStarrett®
-
UPC049659506655
-
Manufacturer Part Number178MA
-
CountryUSA|Canada
-
MaterialStainless Steel
-
Measuring Range1 to 3 mm
-
Graduations0.25 mm
-
Series178M
-
Number of Leaves34
-
Dimensions4-1/64 in L x 31/64 in W x 2-3/ 64 in H
- Made of nicely finished, high quality steel
- 1-7mm concave and convex reading
- 1-7 mm concave and convex reading
- Any one of the leaves can be securely locked in position by a locking device
- Each gage has leaves for measuring both concave and convex radii, with each leaf stamped with the radius size
- Millimeter system of measurement
- 1 - 3 mm, 3 - 7 mm measuring range
- 0.25 mm, 0.5 mm graduations
| Competitor Name | Cross-Reference Number |
|---|---|
| Fastenal | 3123843 |
-
Alternative Part Number50665
-
UNSPSC41111600
-
Package DescriptionEACH
-
Standards/ApprovalsPROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm
-
Full Engineering Drawing
