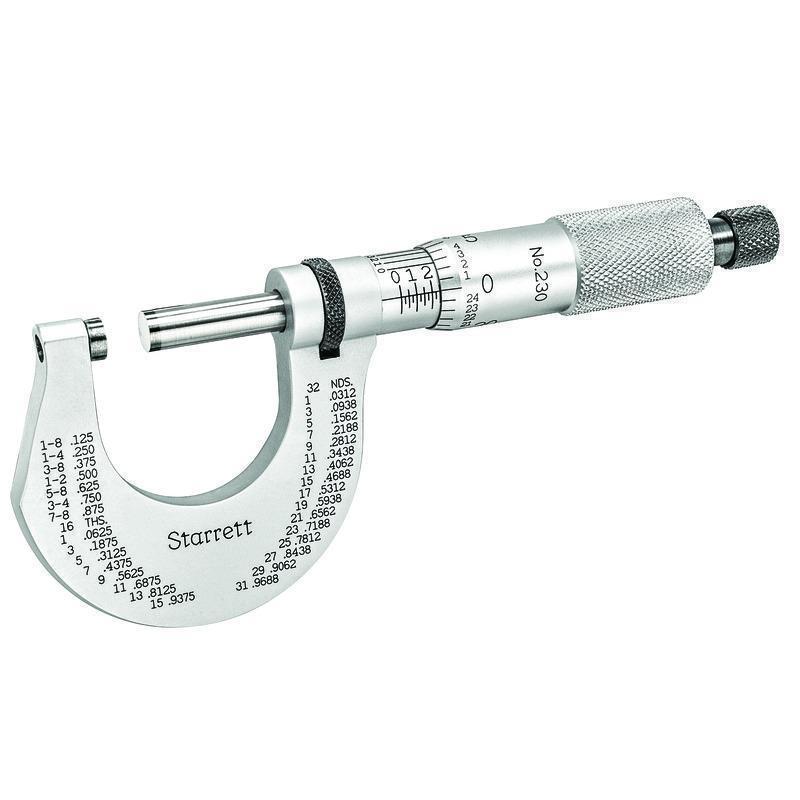

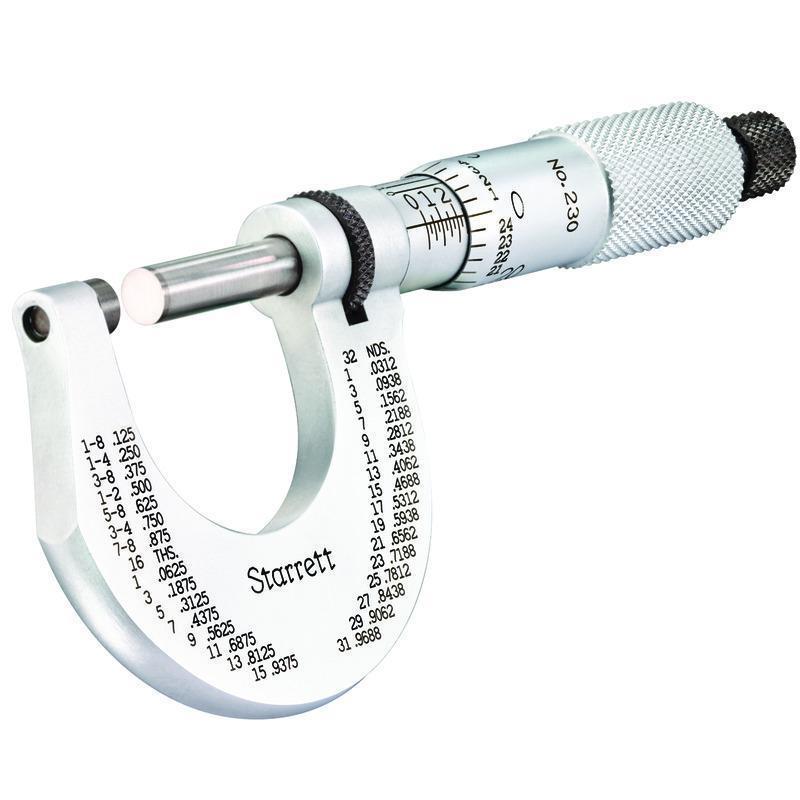

Starrett 0"-1" RANGE MICROMETERS STR T-230-XRL
The Starrett T230XRL Outside Micrometer includes a ratchet stop, lock nut, carbide face, and 0-1" Range, .0001" Grad, Carbide Faces, Ratchet Stop, Lock Nut .
-
BrandStarrett®
-
UPC049659509441
-
Manufacturer Part NumberT230XRL
-
CountryUSA|Canada
-
FinishSatin Chrome
-
Thimble TypeRatchet
-
MaterialCarbide Tip
-
Measuring Range0 to 1 in
-
Resolution0.0001 in
-
TypeMechanical
-
Graduations0.0001 in
-
Accuracy+/-0.00005 in
-
Anvil TypeFlat
-
Series230
-
Spindle Diameter0.235 in
-
Spindle TypeFlat
- Extremely hard and stable one-piece spindle
- Advanced sleeve design with staggered lines and distinct figures for precise and easy readability
- Gracefully designed tapered frame for use in narrow slots and tight places

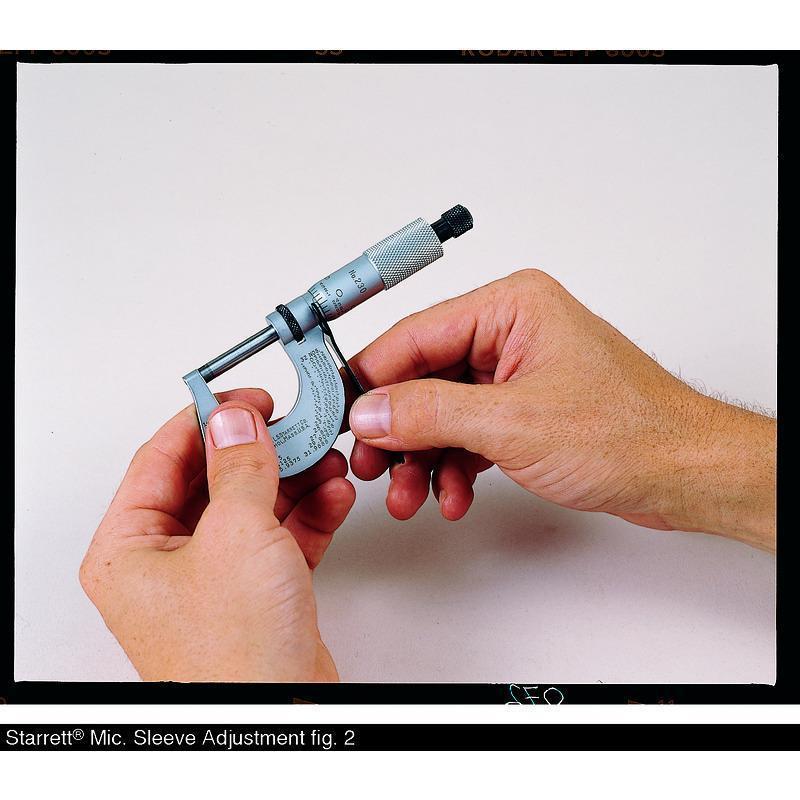

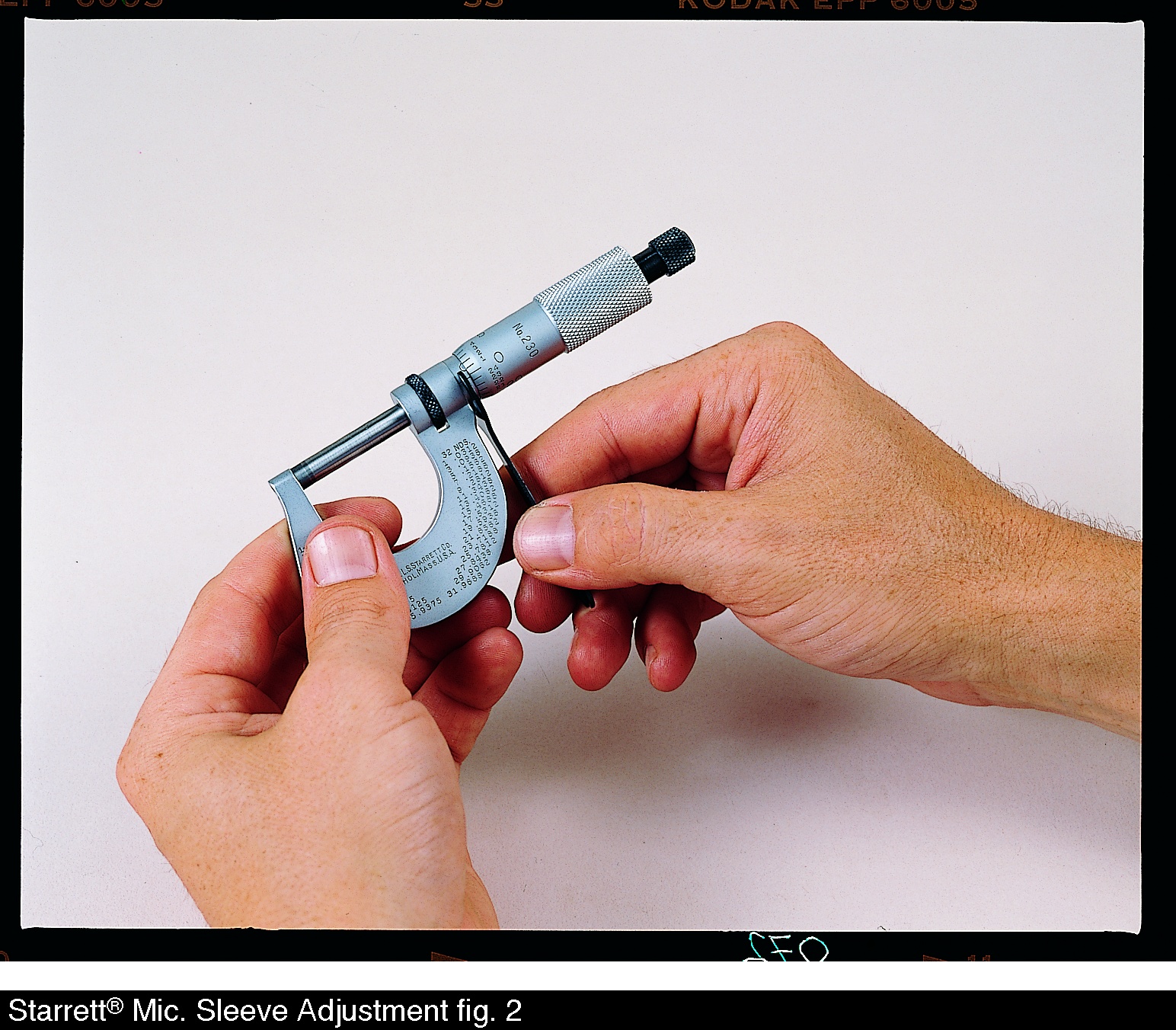

- Quick and easy adjustment
- Quick-reading figures - every thousandth numbered on inch tools
- Reach places most micrometers cannot reach
- Quick reading figures - every thousandth numbered on inch tools
- Reach places most micrometers cannot reach
- Knurled ring type lock nut
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 2ZTX8 |
| MSC | 86409174 |
| Fastenal | 0324864 |
-
Alternative Part Number50944
-
UNSPSC41111601
-
Standards/ApprovalsPROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP)/which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP)/which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
-
Package DescriptionEACH
-
