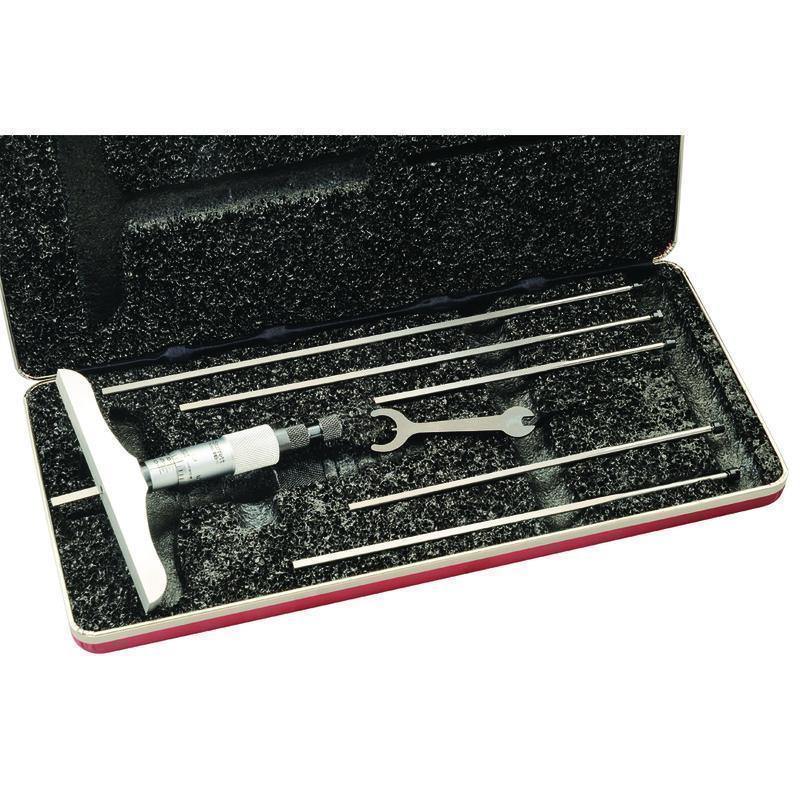

Starrett® 449BZ-6R Mechanical Depth Micrometer With Non-Rotating Blade, 0 to 6 in, Graduations: 0.001 in
The Starrett 449, 449M Series Micrometer Depth Gage with Non-Rotating Blade includes a .045" thick x 1/8" wide (1.2 x 3.2mm) blade that can be turned with the fingers and positioned at any angle relative to the base. In operation, the blade does not turn, but moves perpendicularly only, permitting depth measurement of narrow shoulders without the blade rolling off. This is also ideal for slots and recesses as narrow as .045" (1.2mm). Furnished with a 2-1/2" (63mm) or a 4" (100mm) base. 0-6" Range, .001" Grad, 4" Base, 6 Rods, in Case.
-
BrandStarrett®
-
UPC049659523249
-
Manufacturer Part Number449BZ-6R
-
CountryUSA
-
Thimble TypeRatchet
-
Measuring Range0 to 6 in
-
TypeMechanical
-
Graduations0.001 in
-
Accuracy+/-0.0001 in Mic Head, +/-0.0002 in Rods
-
Anvil TypeFlat
-
Series449
-
Spindle TypeFlat
- The depths of holes, slots, shoulders and projections can be measured with these fine tools
- Non-rotating blade - blade does not turn, but moves perpendicularly only
- 4 in (100mm) base
- Combination ratchet and speeder for uniform pressure and quicker adjustment
- Ring-type knurled lock nut for quick and sure locking
- Ring-type knurled lock nut for quick and sure locking
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 5UAH4 |
| MSC | 86418373 |
| Fastenal | 0325024 |
-
Alternative Part Number52324
-
UNSPSC41111601
-
IncludesOutside Micrometer Shell, Shell Cap, 0.291-40 SCR Spindle, 0.375-52 Nut, Adjusting Shell, Ratchet Stop, #4-40 Set x .188 Long Screw, Nut Assembly, #2-64 Ratchet Body Nut, 0.066D x 0.156L Ratchet Pin, Cap Assembly, 0.041 x 0.061 x 0.188 x 0.010 x 6 Spring, #2-64 Slot x 0.204 Long Screw, 0-1 in Rod Assembly, 1-2 in Rod Assembly, 2-3 in Rod Assembly, 3-4 in Rod Assembly, 4-5 in Rod Assembly, 5-6 in Rod Assembly, Barrel Spring, #3 Wrench and Steel/Vinyl Case Only
-
Package DescriptionEACH
-
Standards/ApprovalsPROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP)/which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP)/which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
-
Full Engineering Drawing
