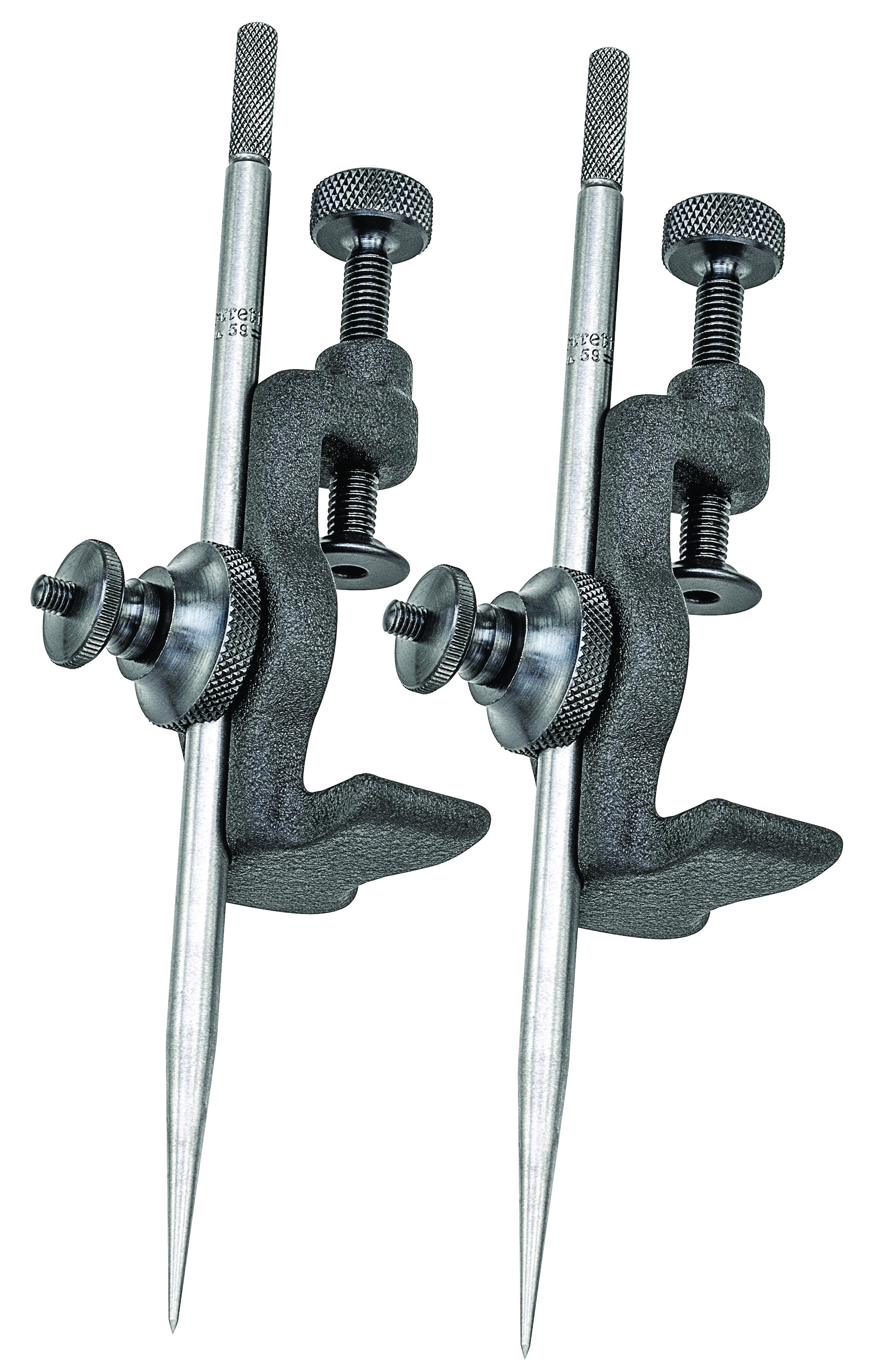

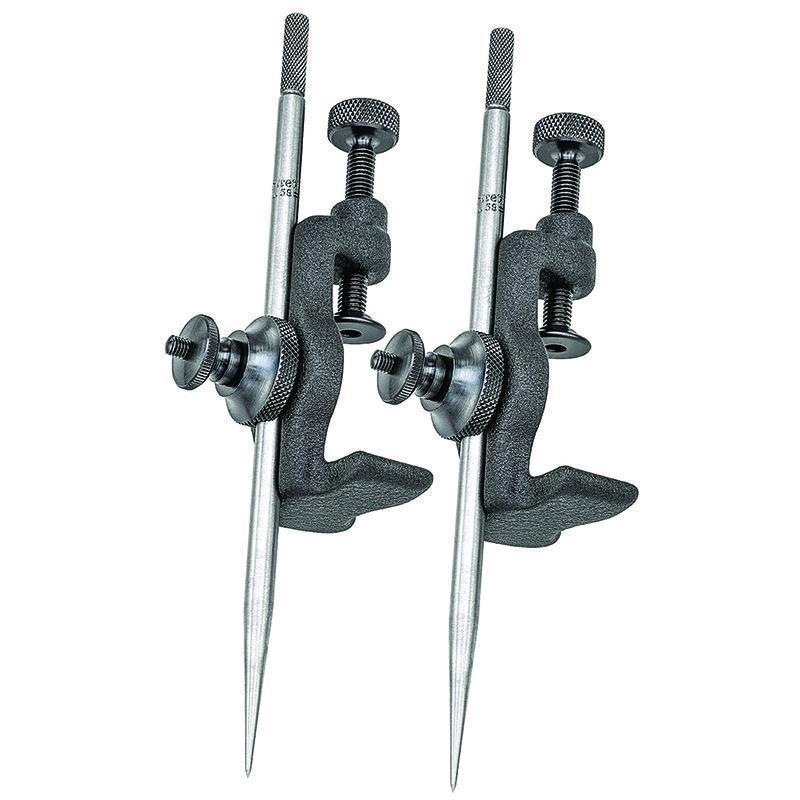

Starrett® 59A 59 Series Trammel Head, For Use With 3/4 to 1-1/2 in W Beam
The Starrett 59A is very useful for laying out and scribing circles beyond the capacity of ordinary dividers. The trammel heads have a clamping device that firmly holds various attachments. Trammel Heads (2), 2 Points (6"/150mm).
-
BrandStarrett®
-
UPC049659502978
-
Manufacturer Part Number59A
-
CountryUSA|Canada
-
Series59 Series
-
Suitable For Use With3/4 to 1-1/2 in W Beam
- The heads will accommodate any size beam from 3/4 to 1-1/2 in (19- 38mm) in width
- Since beam length requirements vary widely, and they are easy for the user to fashion, we do not furnish a beam
- Clamping device that firmly holds various attachments
- Set of four ball points with holder
- One of the large caliper legs features a joint operated by an eccentric thumb piece for fine adjustments
- A pencil may be clamped in either head in place of the caliper legs or divider points
- A pencil may be clamped in either head in place of the caliper legs or divider points
| Competitor Name | Competitor Part Number |
|---|---|
| MSC | 86403185 |
| Grainger | 30C326 |
| Fastenal | 3123687 |
-
Alternative Part Number50297
-
UNSPSC27111800
-
Package DescriptionEACH
-
Standards/ApprovalsPROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm
