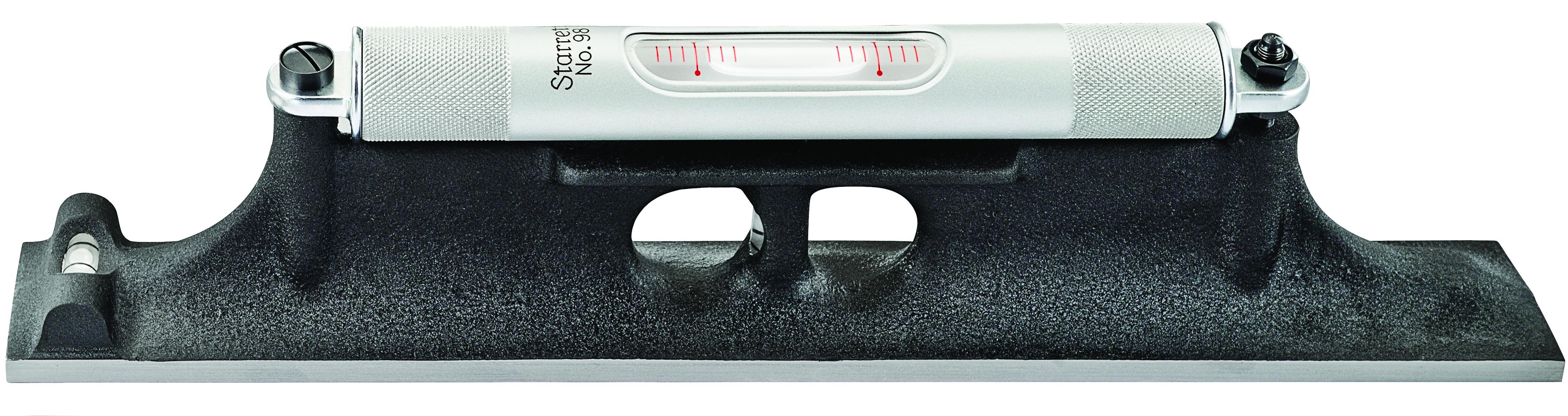

Starrett 12" LEVELS STR 98-12
The Starrett 98 Machinists Level with Ground and Graduated Vial includes a cross test vial. 300mm (12") size, without case.
-
BrandStarrett®
-
UPC049659504439
-
Manufacturer Part Number98-12
-
CountryUSA|Canada
-
MaterialCast Iron
-
ColorBlack/Silver
-
TypePrecision Uncalibrated
-
Vial MaterialGlass
-
Vial TypeSingle Plumb and Cross Test
-
Accuracy0.005 in/ft
-
Height3 in
-
Width2 in
-
Series98 Series
-
Number of Vials3
-
Length12 in
- Ground and graduated main vials
- The base of the levels features an involute groove running the length of the base, which provides a reliable seat for round work
- The vials are adjustable to a positive setting and are housed in a satin finished brass tube with a friction-fit closing cover to prevent breakage
- Main level vials have graduations that are approximately 80-90 seconds or .005 in per foot (0.42mm per meter)
- Cast iron base for durability
- There are five, six, or seven lines on each side of the bubble, depending on the base length
- 2 level vials and 1 plumb vial
- Unmilled surface
- Brass frame material
- V-shaped groove along the base provides reliable seating when leveling round items
- With the cross test vial, it is possible to simultaneously level in both directions
- This prevents inaccuracies in the main vial reading caused by canting the level sidewise on round work
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 2ZVL5 |
| MSC | 86404571 |
| Fastenal | 0324722 |
-
Alternative Part Number50443
-
UNSPSC27111802
-
Standards/ApprovalsPROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP)/which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP)/which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
-
Package DescriptionEACH
-
Owners/User Manual
-
Full Engineering Drawing
