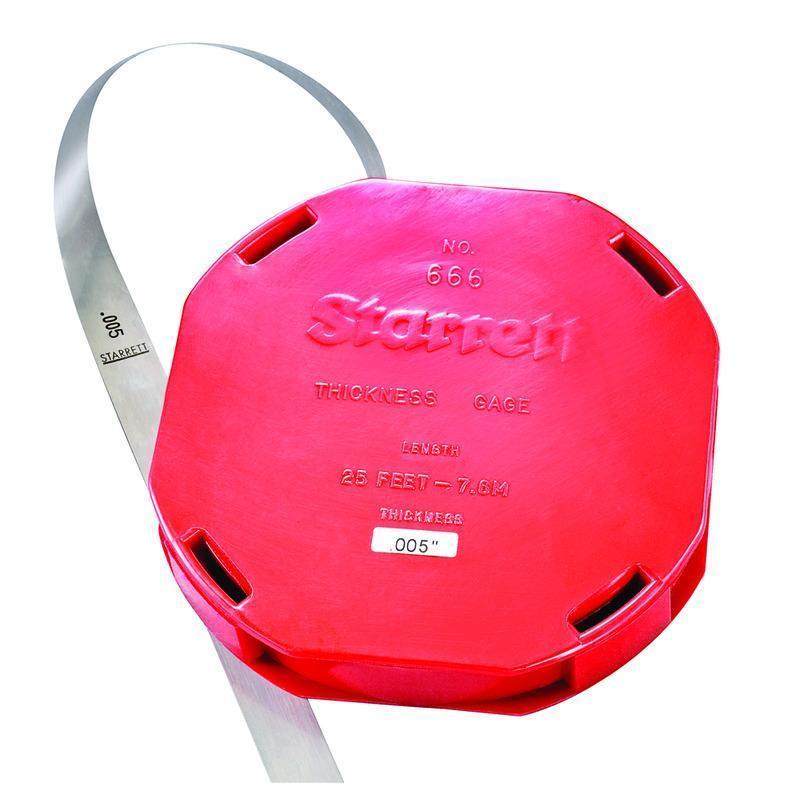

Starrett® 666-5 Straight Leave Thickness Gage With Dispenser Case, 25 ft L x 1/2 in W x 0.005 in THK, Tempered Steel
Starrett 666 Series Thickness Gage or "Feeler" Stock in Rolls. This handy product includes thickness stock, housed in convenient rewindable dispenser rolls. Having the thickness stock in a case makes it very useful for cutting off the required length for adjusting tappets, spark plugs, distributor points, checking bearing clearances and gear play, fitting pistons, rings and pins, gaging narrow slots, etc. This stock is also useful for shimming in fixturing and die work.
-
BrandStarrett®
-
UPC049659528022
-
Manufacturer Part Number666-5
-
CountryUSA|Canada
-
MaterialTempered Steel
-
TypeStraight Leave
-
Series666
-
Blade Length25 ft
-
Blade Thickness0.005 in
-
Blade Width1/2 in
- Marked every 6 in or 150mm with a line for easy, exact dispensing
- Handy 25 ft (7.6m rolls), 1/2 in (12.7mm) wide
- Compact, sturdy plastic rewindable dispenser case
- Case provides the ability to snip off the desired length without any waste
- Rewind feature permits retracting thinner feeler stock into the case, preventing damage
- Marked every 6 in or 150 mm with a line, thickness in thousandths of an inch or in hundredths of a mm
- Case provides the ability to snip off the desired length without any waste
- +/-0.0002 in accuracy
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 30C289 |
| MSC | 01563584 |
| Fastenal | 0324907 |
-
Alternative Part Number52802
-
UNSPSC41111623
-
Package DescriptionEACH
-
Specification Sheet
