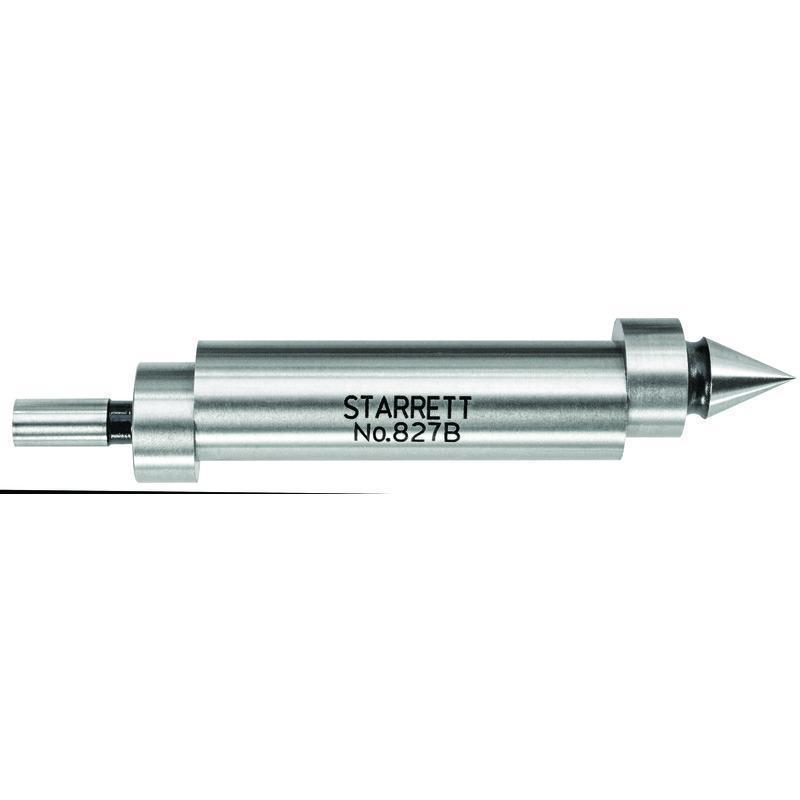

Starrett® 827B Edge Finder, 0.2 in Tip, 1/2 in Shank

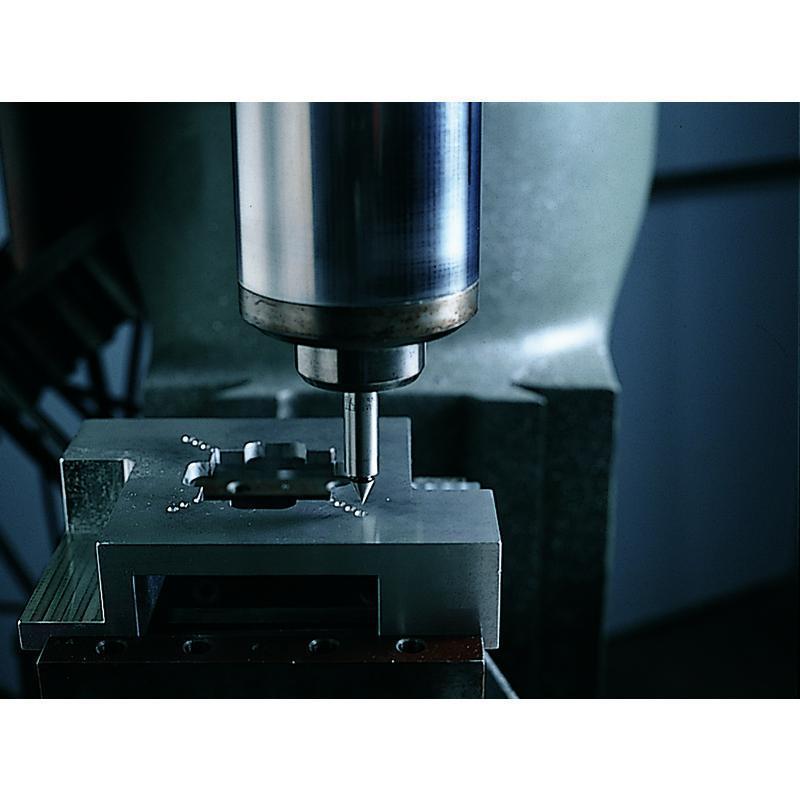

The Starrett 827 Edge Finder is for fast, accurate work location. Work surfaces may be located easily, quickly and accurately with these edge finders. Work with flat, straight edges, shoulders, grooves, round work, studs, dowels or center points and scribed lines, all can be accurately located with this handy tool. Body and contacts are made of tool steel, hardened, ground and lapped to close tolerances for diameter and concentricity. Double End, .500" Body Dia., .200" Contact Dia. and Pointed Contact.
-
BrandStarrett®
-
UPC049659530636
-
Manufacturer Part Number827B
-
CountryUSA
-
MaterialTool Steel
-
Tip Diameter0.2 in
-
Series827
-
Shank Diameter1/2 in
-
End StyleDouble
- Flats, straight edges, shoulders, grooves, round work, studs, dowels, center points and scribed lines - all can be accurately located with this tool
- Body and contacts are made of tool steel, hardened, ground and lapped to close tolerances for diameter and concentricity
- Body and contacts are made of tool steel, hardened, ground and lapped to close tolerances for diameter and concentricity
- Furnished in attractive, protective case
- 3-5/16 in L
- Pointed contact
- 48 deg point angle
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 4K208 |
| MSC | 86425261 |
| Fastenal | 0324822 |
-
Alternative Part Number53063
-
UNSPSC27111800
-
IncludesProtective Sleeve
-
Package DescriptionEACH
-
Standards/ApprovalsPROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm
-
