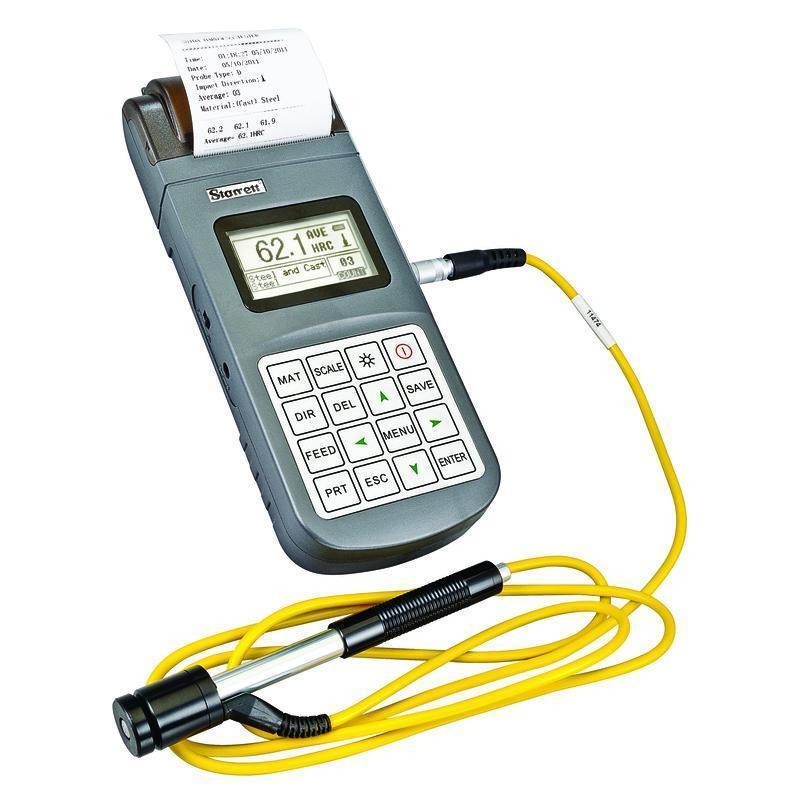

Starrett® 3810A Global Series® Digital Portable Electronic Hardness Tester, Leeb Scale, 200 HL Min, 960 HL Max Hardness, +/-0.5 % Accuracy, Battery

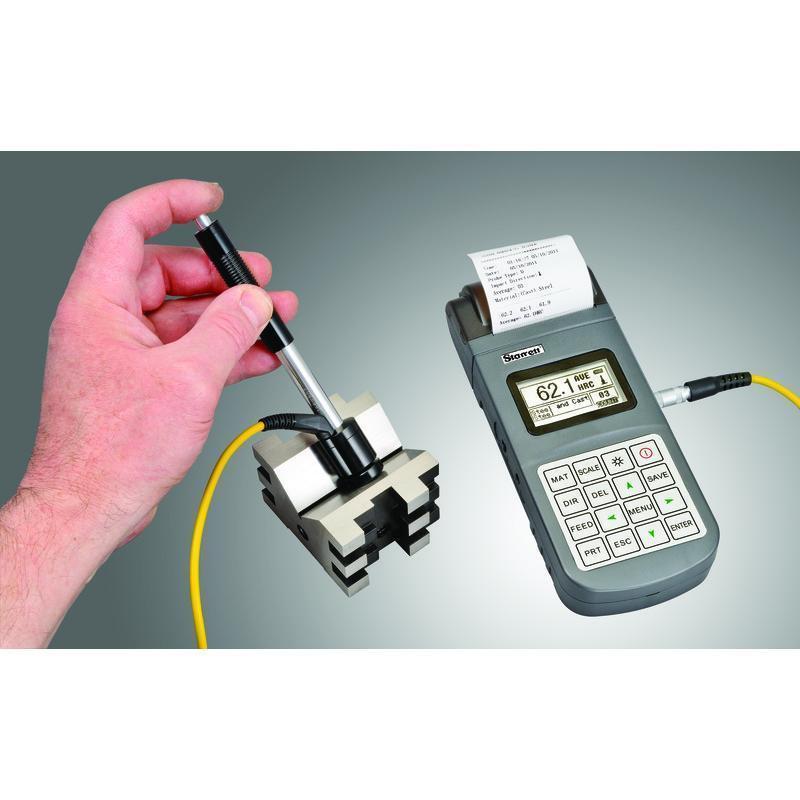

The 3810A is a state-of-the-art digital instrument designed to test the hardness of large hard metal parts. Loaded with useful functions such as USB output and a built in printer, the 3810A is an ideal choice for fast accurate hardness testing. This versatile tester can perform tests that easily convert to the most popular hardness scales, including Rockwell, Brinell, Vickers and Shore. The tester is easy to use. Simply load the impact body, place the impact body on your test piece, then push the button to begin testing. The 3810A is designed to test large hard parts. For example, tool steel should be close to 1" thick of solid material. The 3810A comes with a D impact device, calibration block, cleaning brush, manual and a carrying case.
-
BrandStarrett®
-
UPC049659698718
-
Manufacturer Part Number3810A
-
CountryUSA
-
Power SourceBattery
-
TypeDigital
-
Accuracy+/-0.5 %
-
SeriesGlobal Series®
-
Battery TypeAA Alkaline
- Combines fast test speeds coupled with ample memory and output
- Performs tests that easily convert to most popular hardness scales such as Rockwell, Brinell, Vickers and Shore
- Designed to test the hardness of large, hard metal parts
- USB Ouput
- Automatic mean value as well as Min and Max values
- Rechargeable Battery Pack with low power indicator
- Memory capacity (100 groups)
- Optional - impact devices and special support rings
- Automatic conversions to rockwell Brinell, Vicker and Shore
- Automatic mean value as well as Min and max values
- Uses two AA alkaline battery with low power indicator
- 100 group memory capacity
- Impact devices and special support rings optional
- Designed to test the hardness of large hard metal parts
- Vertical and horizontal impact direction
- Tool steel should be about 1 in THK solid material or larger
- 5 - 104 deg F operating
- +/- 4L units repeatability accuracy
- Used for steel and cast steel, alloy tool steel, stainless steel, grey cast iron, spheroidal iron, cast aluminum, brass, bronze and wrought copper alloy materials
- 5.96 in L x 2.938 in W x 1.27 in D
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 53VE71 |
| Fastenal | 922391243 |
-
Alternative Part Number69871
-
UNSPSC41114611
-

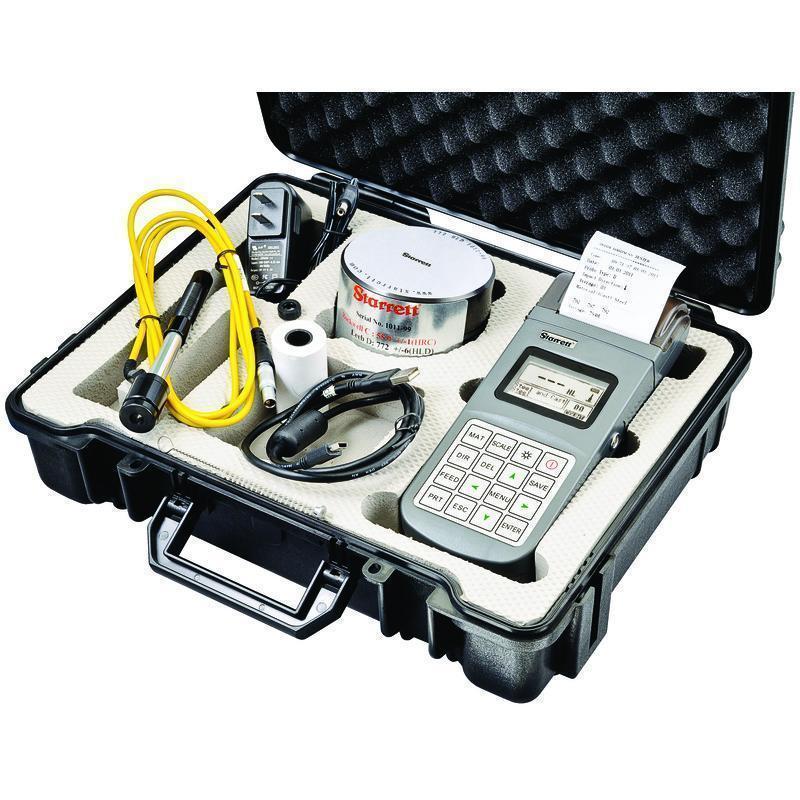

IncludesBase Instrument, Impact Device D, Calibration Test Block, Cleaning Brush, Operation Manual and a Custom Carrying Case
-
Package DescriptionEACH
-
Catalog
-
Specification Sheet
-
Owners/User Manual
-
Technical Bulletin
