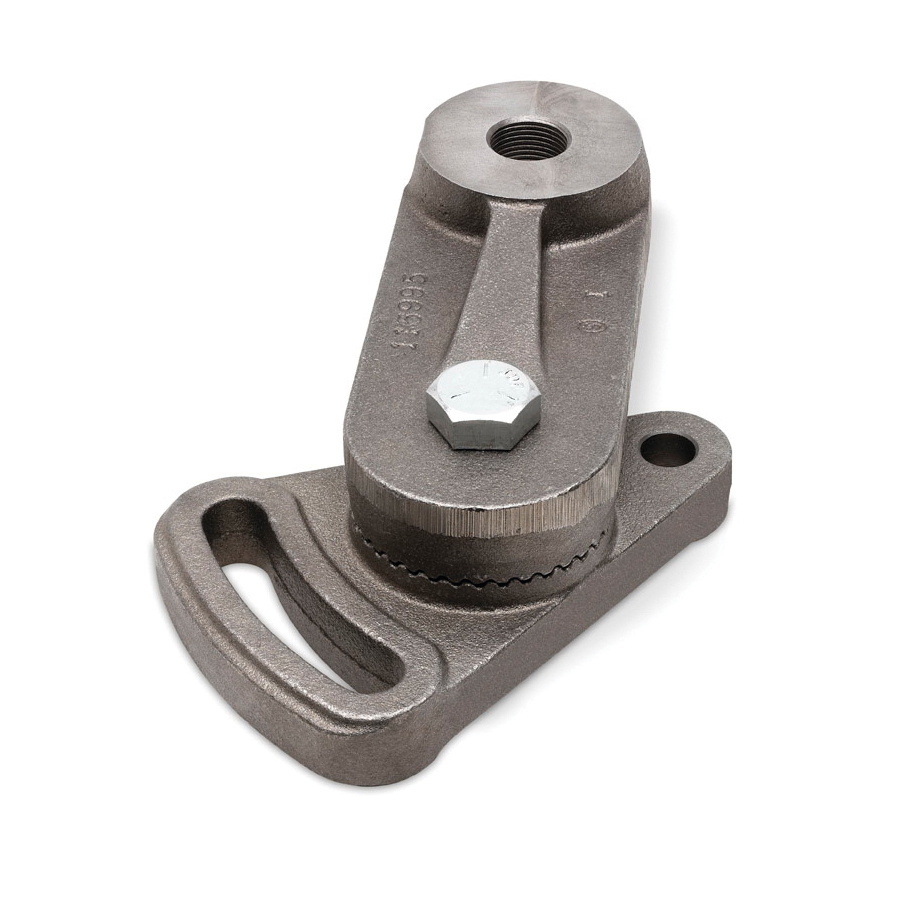

Gates® Power Transmission 10-IDL-BRAK Idler Bracket, For Use With 8 mm Pitch Idler Sprockets, 4.25 in OD Flat Idler Pulleys, 2012-Idl-Bush, 2517-Idl-Bush and 20-Idl-Bush Idler Bushing, 67.8 N-m Arm Bolt Torque, 17.6 N-m Set Screw Torque, 3/4-16 Threaded
Gates® idler brackets are the ideal solution when dealing with drives with a fixed centre distance. Often used when converting fixed centre distance roller chain drives with Poly Chain® GT® Carbon™ belt drives. Belt drives with fixed shafts or limited adjustment, require an alternative way to tension the belts. Gates® idler brackets can be used to tension a belt from the inside or backside using the appropriate attachments (idler sprockets, flat idler pulleys or idler bushings).
-
BrandGates® Power Transmission
-
UPC072053134964
-
Manufacturer Part Number10-IDL-BRAK
-
CountryUSA
-
Dimensions4.63 in L x 1.88 in W
-
Specifications67.8 N-m Arm Bolt Torque, 17.6 N-m Set Screw Torque, 3/4-16 Threaded
-
Suitable For Use With8 mm Pitch Idler Sprockets, 4.25 in OD Flat Idler Pulleys, 2012-Idl-Bush, 2517-Idl-Bush and 20-Idl-Bush Idler Bushing
- A perfect solution for customising belt drives
- Double-adjustable (base and arm)
- Designed to accept Gates® idler sprockets, idler bushings and flat idler pulleys
-
Alternative Part Number77201010
-
UNSPSC24101732
-
Package DescriptionEACH
-
Catalog
-
Full Engineering Drawing
-
Specification Sheet
