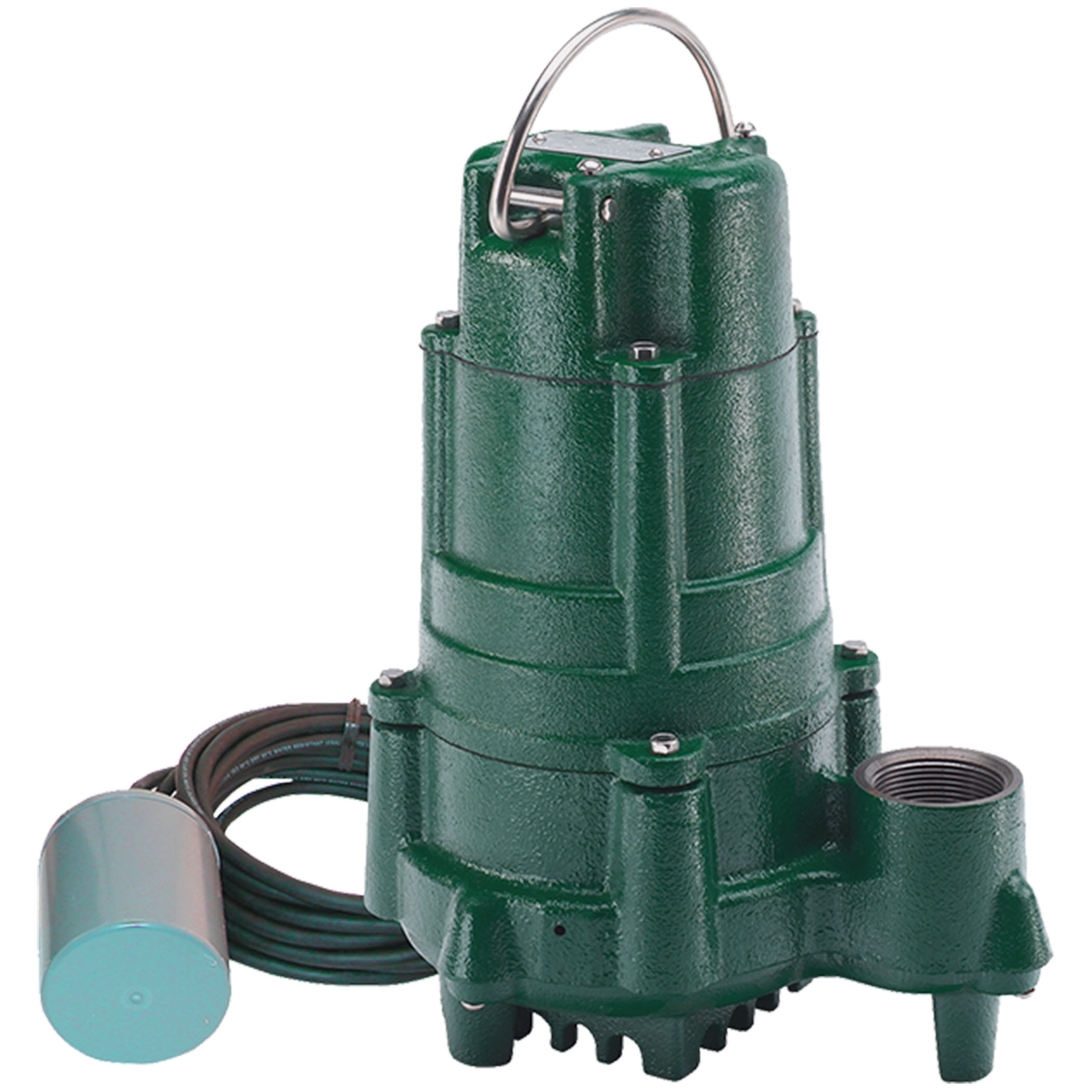

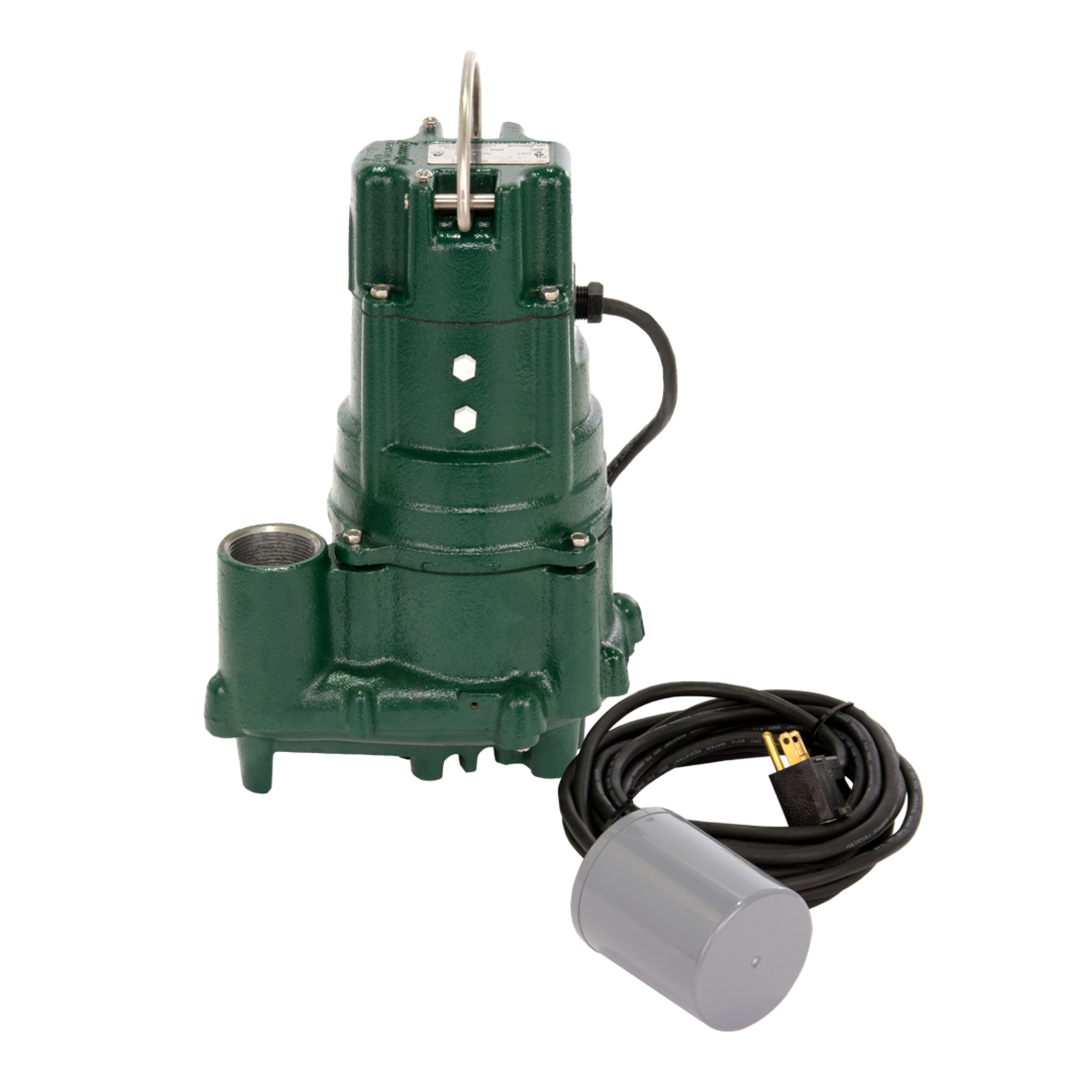

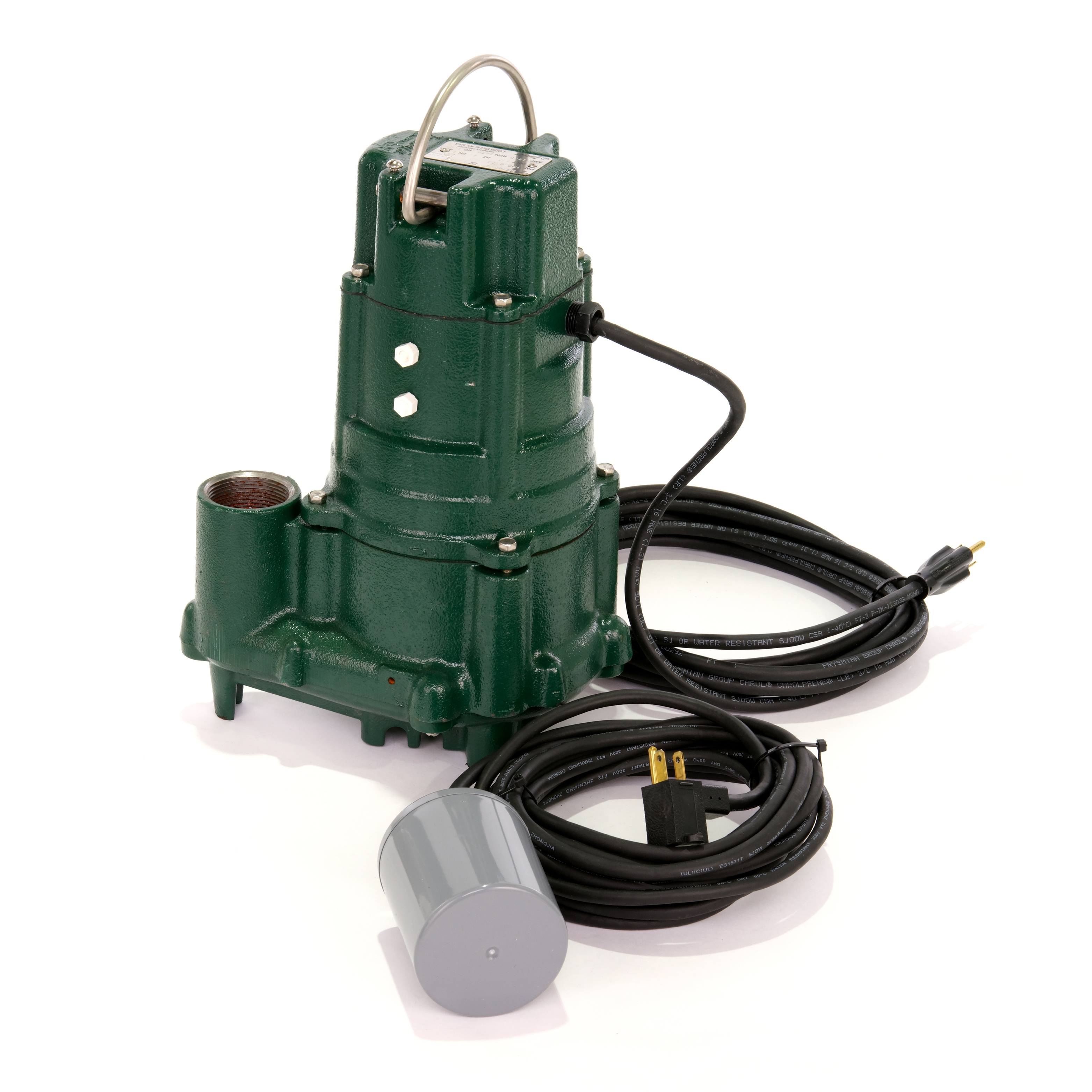

Zoeller® 140-0005 Flow-Mate 140 Single Seal Submersible Pump, 86 gpm Flow Rate, 1-1/2 in NPT Outlet, 1 ph, 1 hp, Cast Iron
The 1 HP Model BN140 nonautomatic Effluent Pump with a piggyback variable level float switch is designed to remove grey water from septic system applications. This corrosion resistant pump will provide the dependability expected from a Zoeller pump. Backed by a 1-year warranty, every pump is submerged in water and tested to its published performance curve, ensuring it meets your expectations and delivers peace of mind right-out-of-the-box.
-
BrandZoeller®
-
UPC053514062354
-
Manufacturer Part Number140-0005
-
CountryUSA
-
Temperature Rating130 deg F
-
MaterialCast Iron
-
Maximum Head50 ft
-
Flow Rate86 gpm
-
Frequency Rating60 Hz
-
TypeSingle Seal
-
Motor Speed3450 rpm
-
Voltage Rating115 V AC
-
Cord TypeNeoprene
-
Amperage Rating12 A
-
SeriesFlow-Mate 140
-
Horsepower1 hp
-
Impeller TypeSingle Vane/Non-Clogging Vortex
-
Bearing TypeUpper Sleeve/Lower Ball
-
Outlet Size1-1/2 in NPT
-
Phase1
- Oil-filled motor and cast iron motor housing for optimal heat dissipation which prevents the pump from overheating
- Nonautomatic pump with piggyback variable level float switch which allows you to adjust the on / off level for optimal runtime
- Corrosion resistant engineered plastic vortex impeller to allow free passage of 2 in spherical solids which prevents clogging and increases reliability
- Stainless steel screws, handle, and piggyback switch pipe clamp to prevent rust and corrosion
- Powder-coated epoxy finish provides corrosion-resistance and extends life in harsh environments
- Upper and lower sleeve bearings running in bath of oil
- 1-1/2 in NPT vertical discharge
- Reserve powered design
- BN and BE models include a variable level float switch and 1-1/2 in x 2 in PVC adapter fitting
- For unusual conditions a reserve safety factor is engineered into the design of every Zoeller® pump
| Competitor Name | Competitor Part Number |
|---|---|
| Ferguson | Z1400005 |
-
UNSPSC40151513
-
Standards/ApprovalsCSA Certified|SSPMA Standard
-
Catalog
-
Specification Sheet
-
Instruction/Installation Manual
-
Full Engineering Drawing
