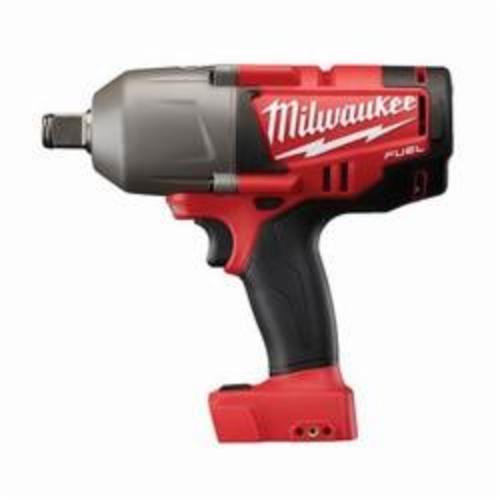

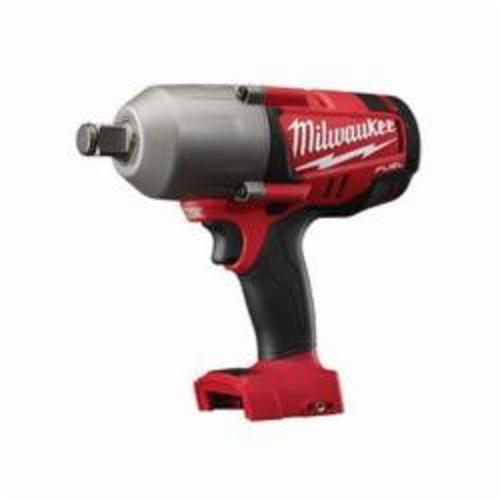

Milwaukee® 2764-20 M18™ FUEL™ High Torque Cordless Impact Wrench With Friction Ring, 3/4 in Square Drive, 1700/2300 bpm, 375 ft-lb (Mode 1), 750 ft-lb (Mode 2) Torque, 18 VDC, 9-1/2 in OAL
The most powerful cordless wrench in its class, the M18™ FUEL™ 3/4 in high torque impact wrench with friction ring from Milwaukee® tool delivers upto 750 ft-lb of maximum fastening torque, 1200 ft-lb of nut-busting torque and upto 2x more runtime the PowerState™ brushless motor outperforms competitors with constant power output and the Milwaukee® designed impact mechanism delivers upto 750 ft-lb of maximum fastening torque. The REDLITHIUM™ XC5.0 extended capacity battery pack (not included) delivers more work per charge and more work Over pack life than Any other battery. It features an onboard fuel gauge to help you monitor the charge more accurately, so there's less downtime on the job. Redlink PLUS™ intelligence allows the operator to choose between 2 fastening modes with Milwaukee® proprietary drive Control™ feature and ensures maximum performance and protection from overload, overheating and over-discharge. This 18 V Li-ion FUEL™ high torque impact wrench offers quick, tool-free socket changes with a 3/4 in friction ring anvil. You'll get ultimate comfort during extended use with the new contoured soft.
-
BrandMilwaukee®
-
UPC045242314355
-
Manufacturer Part Number2764-20
-
CountryUSA|Canada
-
Torque Rating375 ft-lb (Mode 1), 750 ft-lb (Mode 2)
-
TypeHigh Torque
-
Handle TypeSoft Grip/T-Handle
-
Voltage Rating18 V DC
-
Control TypeVariable Speed Trigger Switch
-
SeriesM18™ FUEL™
-
Housing MaterialMetal/Plastic/Rubber
-
Bare Tool/KitBare Tool
-
Battery Capacity4 Ah
-
Battery IncludedNo
-
Battery TypeLithium-Ion
-
Speed1200/1700 rpm
-
Blows per Minute1700/2300 bpm
-
Drive Size3/4 in
-
Drive TypeSquare
-
Overall Length9-1/2 in
- Superior performance - delivers up to 750 ft-lb of maximum fastening torque up to 1200 ft-lb of nut-busting torque and up to 2x more runtime
- POWERSTATE™ brushless motor - out powers competitors yet runs cooler with no wearable components
- REDLINK™ PLUS™ intelligence - allows the operator to choose between 2 fastening modes with Milwaukee® proprietary Drive Control™ feature
- Mode 1 delivers up to 375 ft-lb of maximum fastening torque and mode 2 up to 750 ft-lb maximum fastening torque
- REDLITHIUM™ XC5.0 battery pack (not included) - provides superior pack construction, electronics and performance to deliver 2x more runtime
- 3/4 in anvil with friction ring for fast, easy socket changes
-
UNSPSC27112713
-
Package DescriptionEACH
-
Standards/ApprovalsCSA Certified|ETL Listed|UL Listed
-
Warranty5 Years
-
Line Drawing
-
Owners/User Manual
