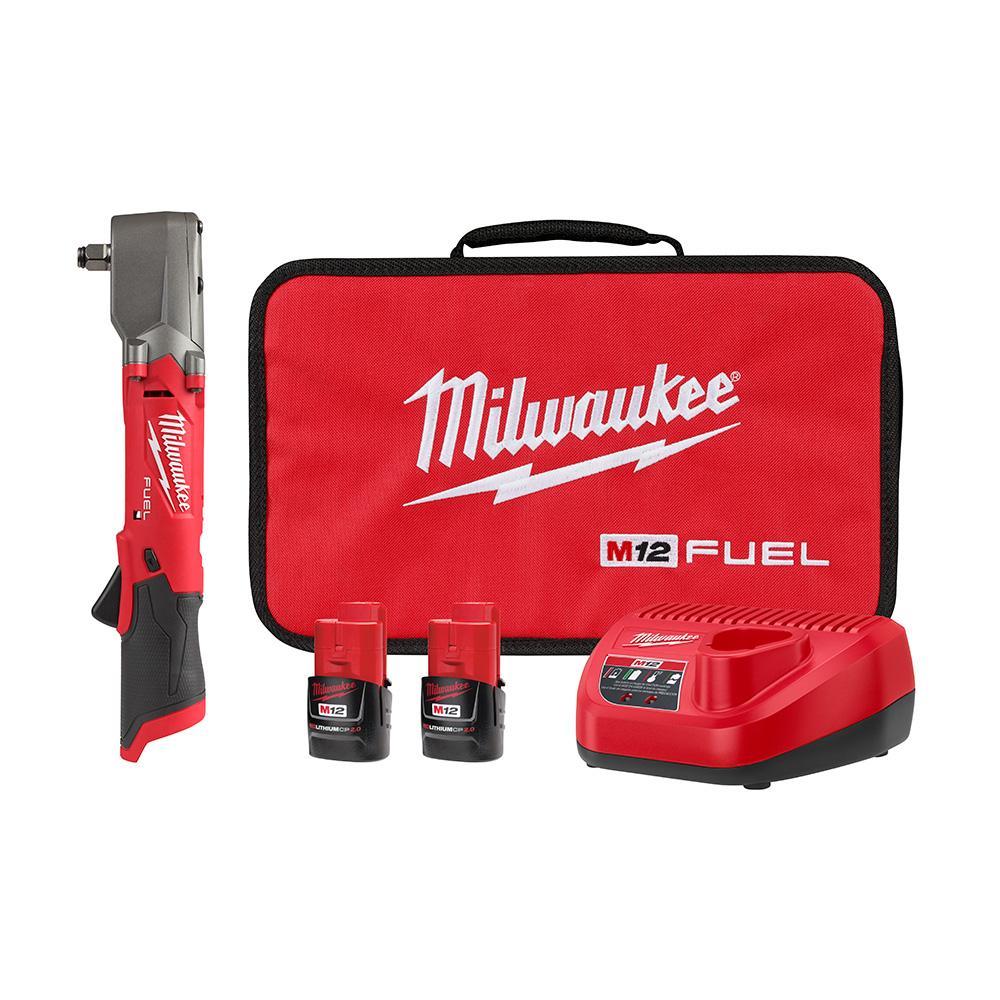

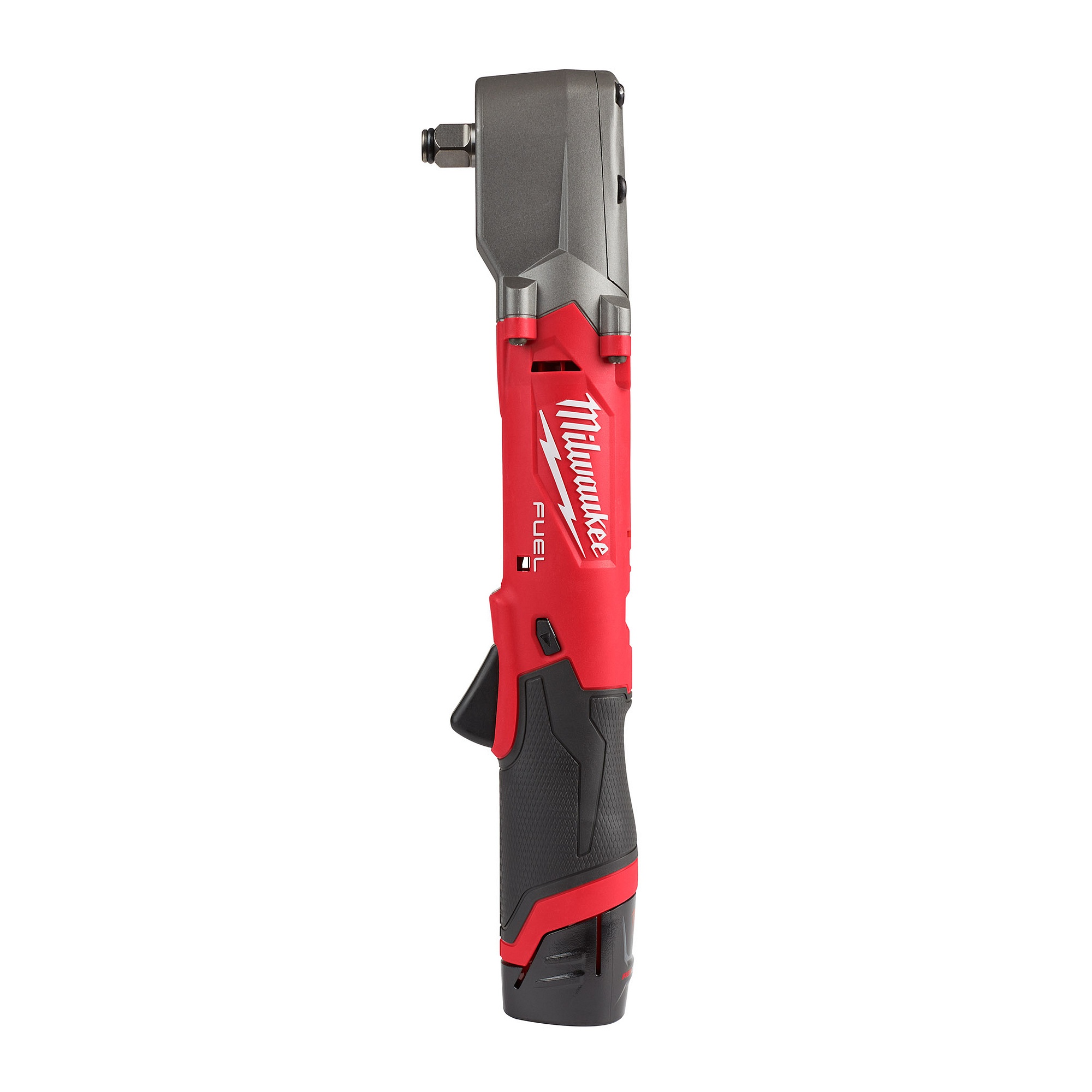

Milwaukee® M12 FUEL™ 2565-22 Cordless Impact Wrench, 1/2 in Square Drive, 220 ft-lb Torque, 12 V, 14.17 in OAL
The MILWAUKEE® M12 FUEL™ 1/2" Right Angle Impact Wrench w/ Friction Ring Kit is the industry's most powerful right angle impact wrench. This battery-powered right angle impact wrench delivers up to 220 ft-lbs. of nut-busting torque without kickback to remove stubborn bolts and fasteners. This durable cordless impact wrench easily fits into tighter spaces than traditional pistol-grip impact wrenches with a profile head of only 2.2 inches, reducing the user's need for socket extensions. The 4-Mode Drive Control delivers unmatched control in various fastening and bolt removal applications. Milwaukee REDLINK PLUS™ Intelligence provides maximum performance and protection against overloads, over-heating, and over-discharge. The M12™ REDLITHIUM™ Battery Packs are compatible with all M12™ tools, delivering more work per charge and more work over the life of the pack.
-
BrandMilwaukee®
-
UPC045242559046
-
Manufacturer Part Number2565-22
-
CountryUSA|Canada
-
Torque Rating220 ft-lb
-
Voltage Rating12 V
-

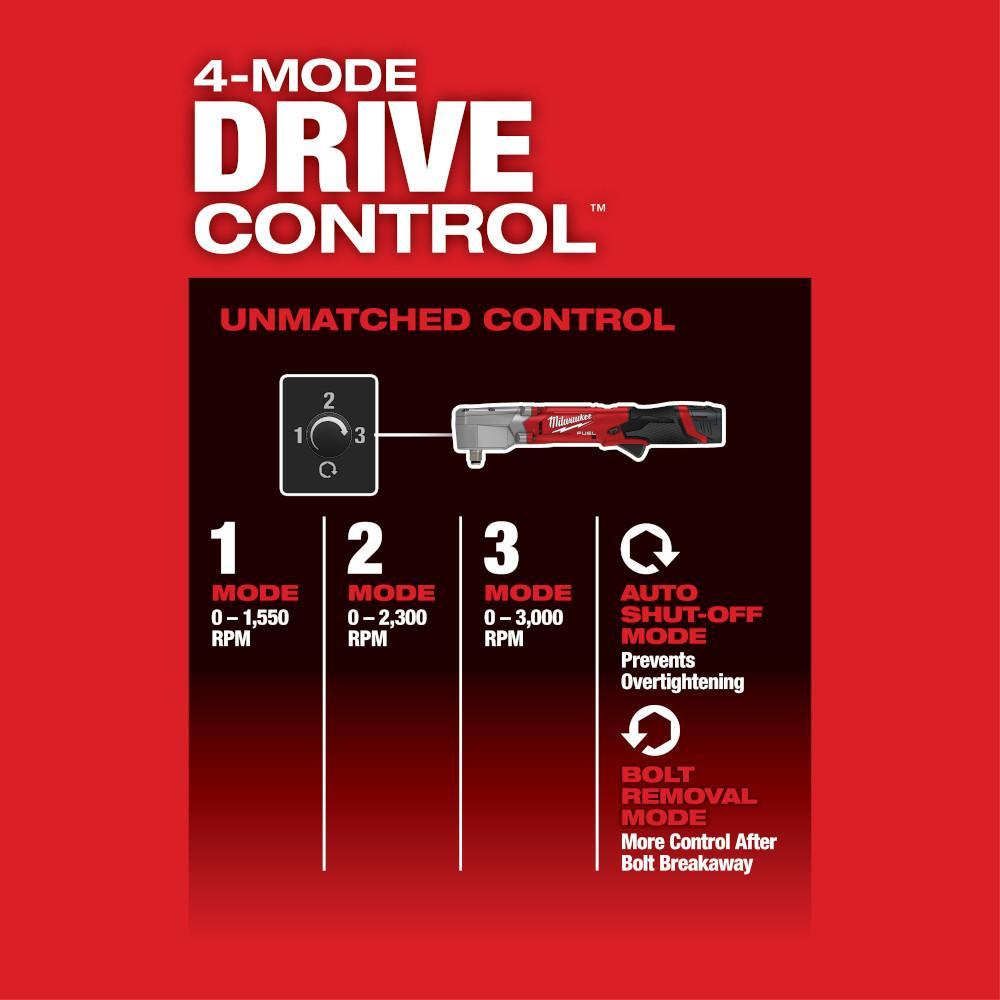

Control Type4-Mode Drive
-
Housing MaterialAluminum
-
Bare Tool/KitKit
-
Battery Capacity2 Ah
-
Battery IncludedYes
-
Battery TypeLithium-Ion
-
Dimensions2.32 in W x 2.98 in H
-
Speed3000 rpm
-
Drive Size1/2 in
-
Drive TypeSquare
-
Overall Length14.17 in

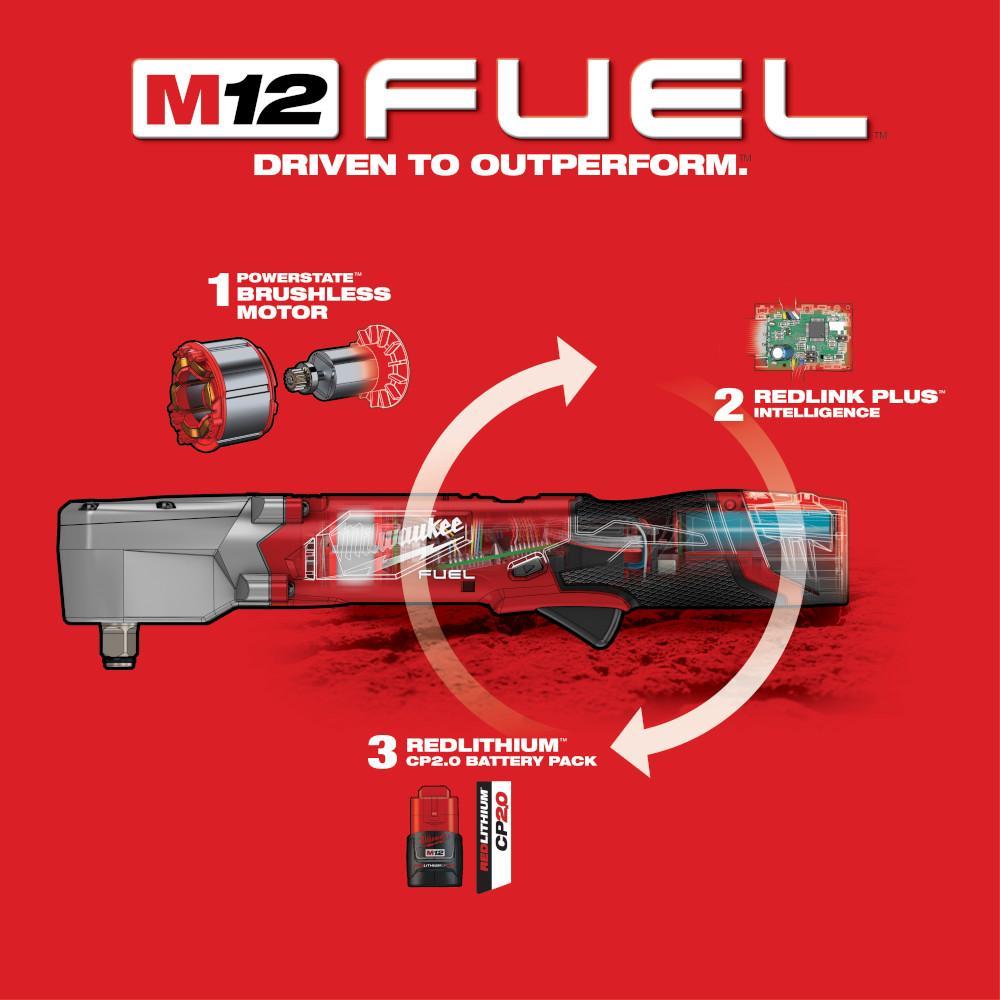

- POWERSTATE Brushless Motor delivers up to 220 ft lbs of nut-busting torque, making it the most powerful cordless right angle impact wrench on the market
- Auto shut-off mode prevents over tightening and increases productivity by applying no more than 15 ft lbs of torque
- Bolt-removal mode offers more control after bolt breakaway as RPMs drastically slow down once the bolt is loosened
- The long body profile of 14.17 in allows for more access in hard to reach spaces
- REDLINK PLUS Intelligence ensures maximum performance and protects from overloads, heating and over-discharge
- Designed with an impact mechanism that prevents kick-back
- LED light to illuminate the work area
| Competitor Name | Competitor Part Number |
|---|---|
| Fastenal | 2194217 |
| Ferguson | M256522 |
| Grainger | 56GL07 |
-
Alternative Part Number16712665
-
UNSPSC27112713
-
IDEA Index ID16712665
-
Package DescriptionEACH
-
Standards/ApprovalsUL Listed
-
Warranty5 Year Tool, 2 Year Battery
-
SDS
-
Warranty Information
-
Specification Sheet
