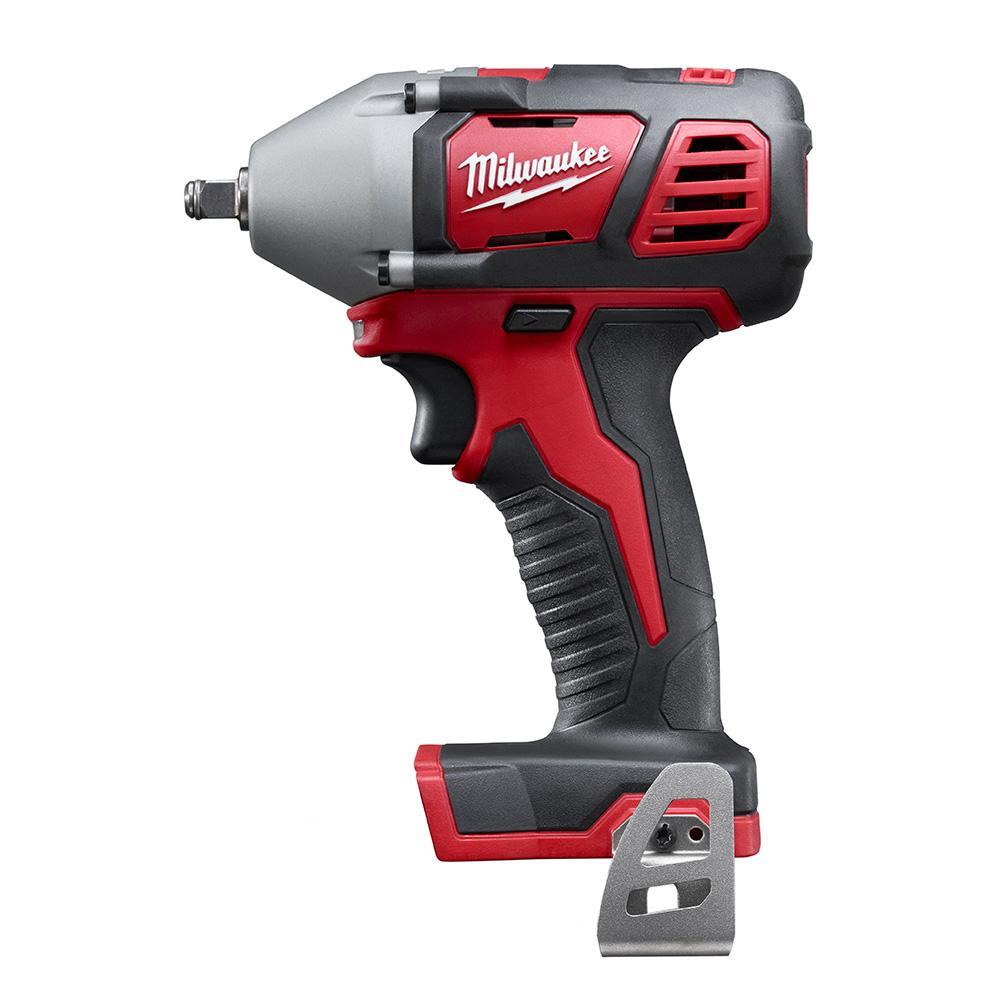

Milwaukee® M18™ 2658-20 Compact Cordless Impact Wrench With Friction Ring, 3/8 in Square Drive, 3350 bpm, 167 ft-lb Torque, 18 V DC, 6 in OAL
The M18™ cordless 3/8 in. Compact Impact Wrench is the most powerful 3/8 in. Compact Impact Wrench in its class and offers the best power to size ratio among like competitors. Featuring a Milwaukee® built 4-pole frameless motor and optimized impact mechanism, this impact driver delivers up to 2,450 RPM, 3,350 ipm and 167 ft-lbs of fastening torque for class-leading performance. REDLINK™ Intelligence provides optimized performance and overload protection using total system communication between tool, battery and charger. The M18™ cordless 3/8 in. Compact Impact Wrench features a 3/8 in. friction ring anvil for fast, tool-free socket changes, an LED light to illuminate work surfaces, and includes an all-metal, reversible belt clip for temporary tool storage.
-
BrandMilwaukee®
-
UPC045242313525
-
Manufacturer Part Number2658-20
-
CountryUSA|Canada
-
Torque Rating167 ft-lb
-
TypeCompact
-
Handle TypeSoft Grip/T-Handle
-
Voltage Rating18 V DC
-
Control TypeVariable Speed Trigger Switch
-
Housing MaterialMetal/Plastic/Rubber
-
Bare Tool/KitKit
-
Battery IncludedNo
-
Battery TypeLithium-Ion
-
Speed2450 rpm
-
Blows per Minute3350 bpm
-
Drive Size3/8 in
-
Drive TypeSquare
-
Overall Length6 in
- 3/8 in Anvil with Friction Ring
- Milwaukee 4-Pole Frameless Motor - Features a robust design for longer life, more power and more runtime than any brushed competitor
- REDLINK Intelligence - Provides optimized performance and overload protection using total system communication between tool, battery and charger
- 3/8 in anvil with friction ring
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 22UT59 |
| Fastenal | 0259578 |
| Ferguson | M265820 |
-
Alternative Part Number13925078
-
UNSPSC27112713
-
IDEA Index ID13925078
-
Package DescriptionEACH
-
Standards/ApprovalsCSA Certified|ETL Listed|UL Listed
-
Warranty5 Year Limited Warranty
-
Owners/User Manual
