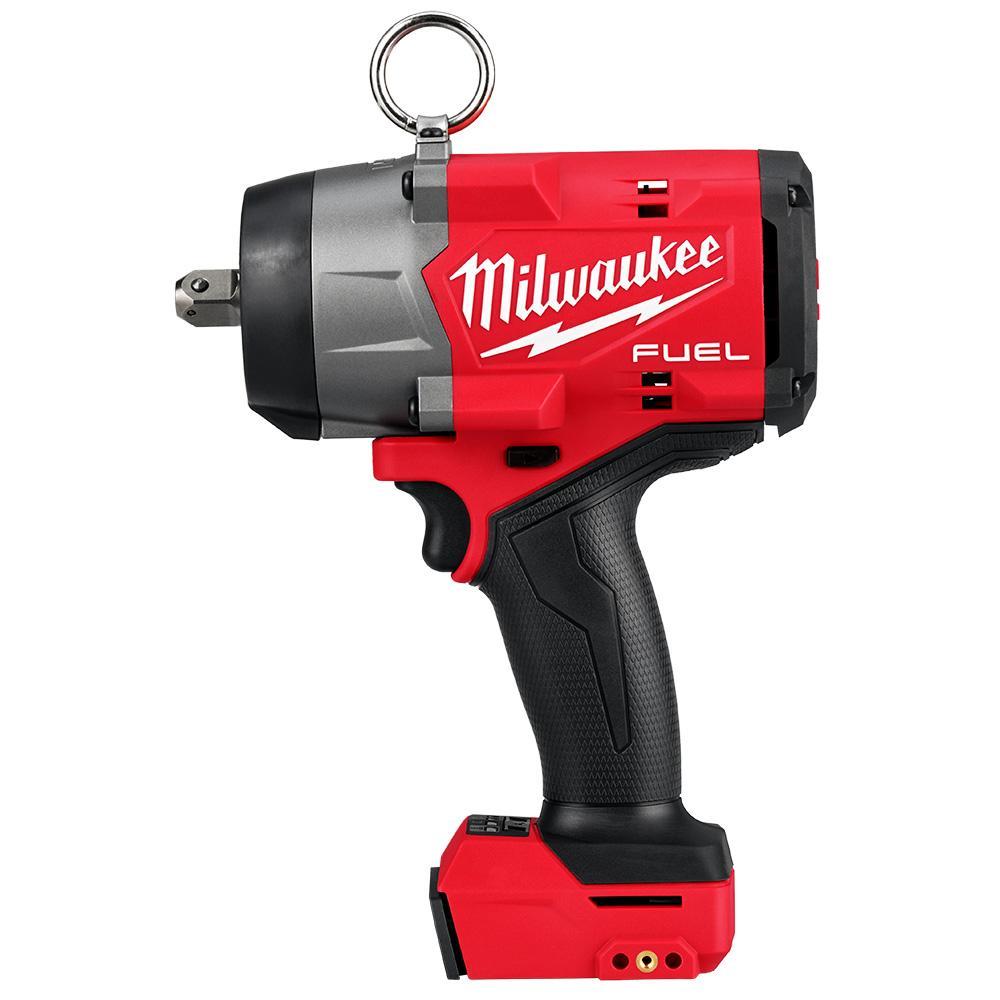

Milwaukee® 2966-20 M18 FUEL™ High Torque Impact Wrench, 1/2 in Drive Square Drive, 0 to 2700 ipm, 900 ft-lb Fastening/1100 ft-lb Nut-Busting Torque Rating, 7.3 in OAL

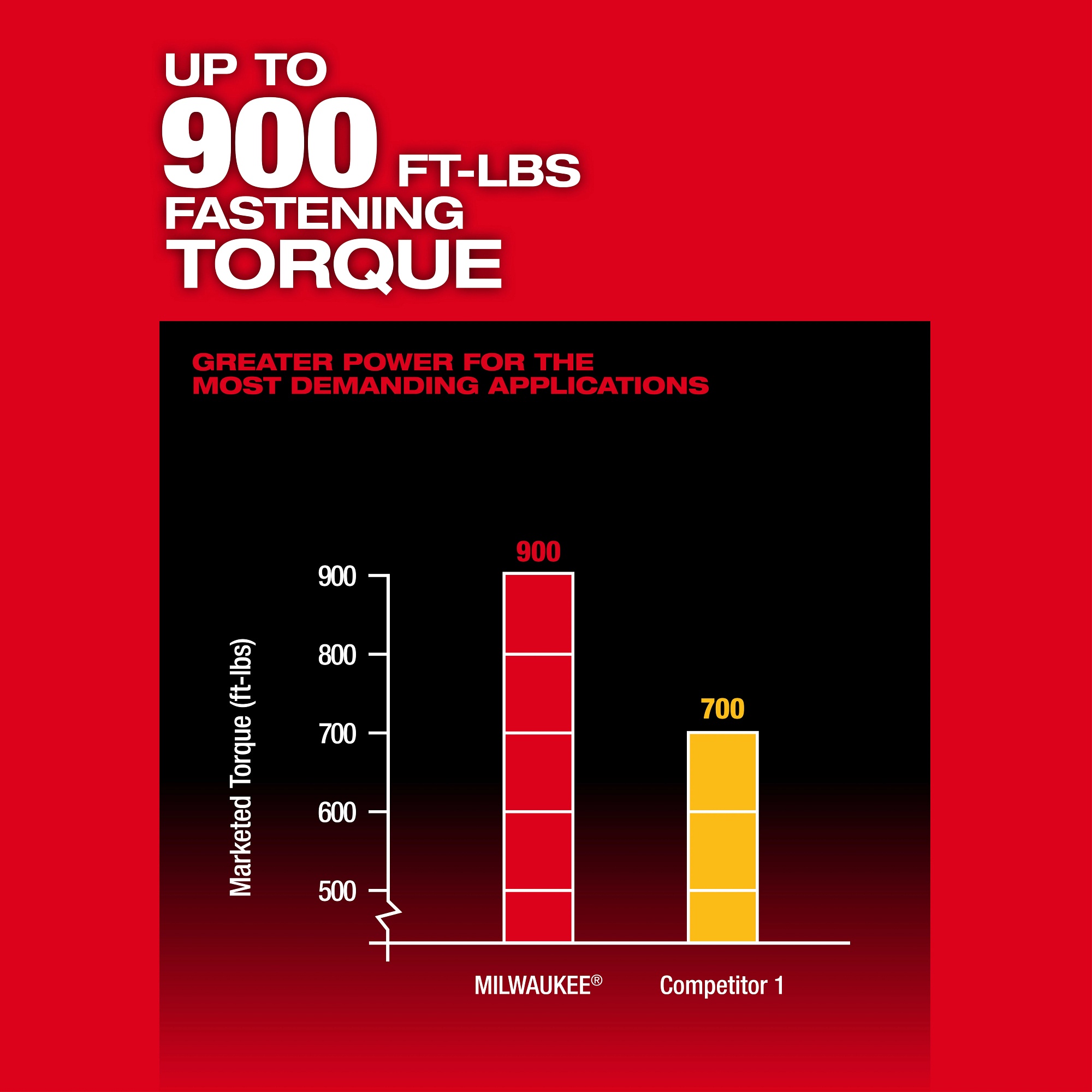

The MILWAUKEE® M18 FUEL™ ½” High Torque Impact Wrench w/ Pin Detent delivers up to 900 ft-lbs of fastening torque, greater access in tight spaces, and greater durability. The POWERSTATE™ Brushless Motor delivers up to 900 ft-lbs of Fastening Torque and 1,100 ft-lbs of Nut-Busting Torque, providing users with greater power for the most demanding applications. At 7.3” in length, the compact size gives users greater access in tight spaces. The robust design allows users to tackle the most demanding applications on the jobsite all while prolonging tool performance. The patented battery isolation system ensures a secure battery connection and controls vibration transmitted to the pack. Tri-LEDs surround the anvil to deliver brighter light with fewer shadows. The integrated lanyard loop allows users to easily transfer and store the tool. 4-Mode DRIVE CONTROL™ offers greater precision with a range of pre-set RPM and IPM levels, selectable from a single button on the tool. By selecting Mode 4, AUTO SHUT-OFF™ control applies no more than 50 ft-lbs of torque for hand-tight fastening applications to prevent overtightening. Mode 4 also features Bolt Removal Control that delivers users full torque output, then decreases RPMs once the bolt is loosened to prevent fastener drops. The ½” Pin Detent anvil design maximizes socket retention.
-
BrandMilwaukee®
-
UPC045242601530
-
Manufacturer Part Number2966-20
-
CountryUSA|Canada
-
Torque Rating900 ft-lb Fastening/1100 ft-lb Nut-Busting
-
TypeHigh Torque
-
SeriesM18 FUEL™
-
Battery TypeREDLITHIUM™
-
Dimensions9.35 in H x 3.13 in W
-
Speed0 to 2000 rpm
-
Blows per Minute0 to 2700 ipm
-
Drive Size1/2 in
-
Drive TypeSquare
-
Overall Length7.3 in

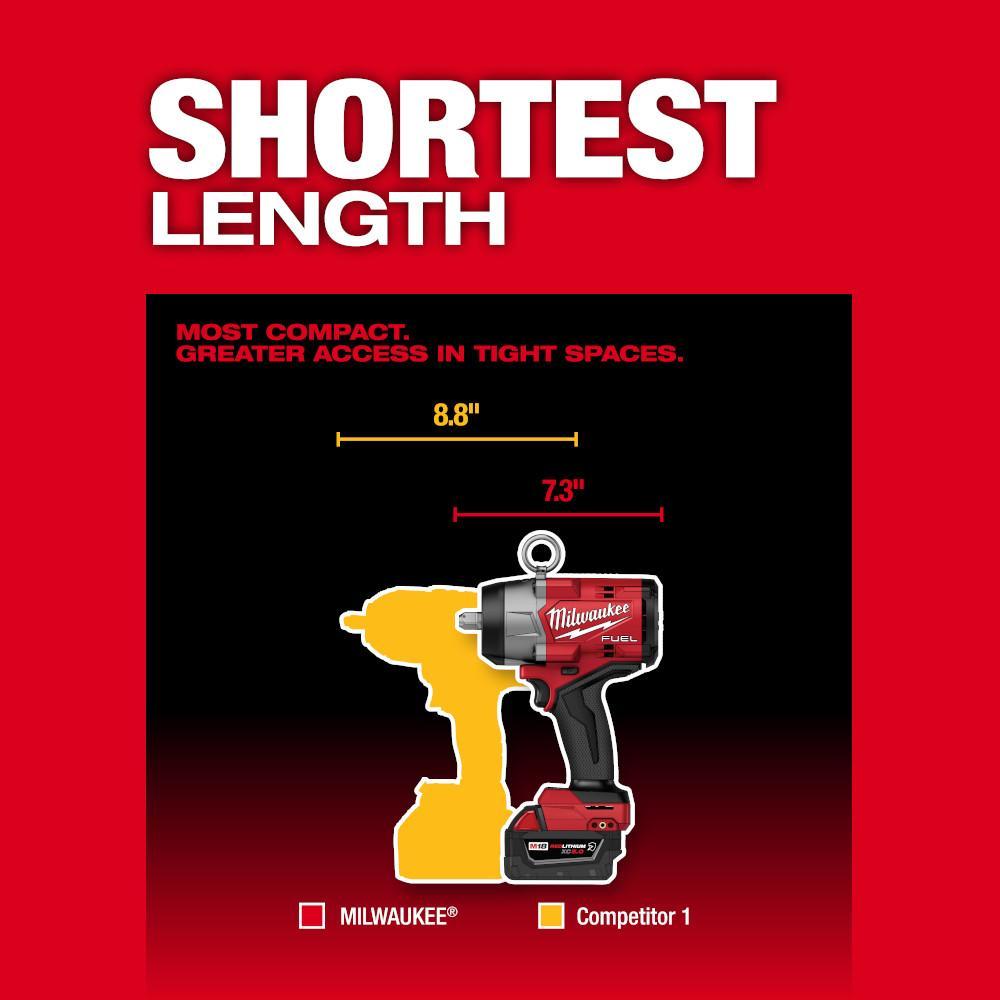

- 7.3 in in length provides most access in tight spaces

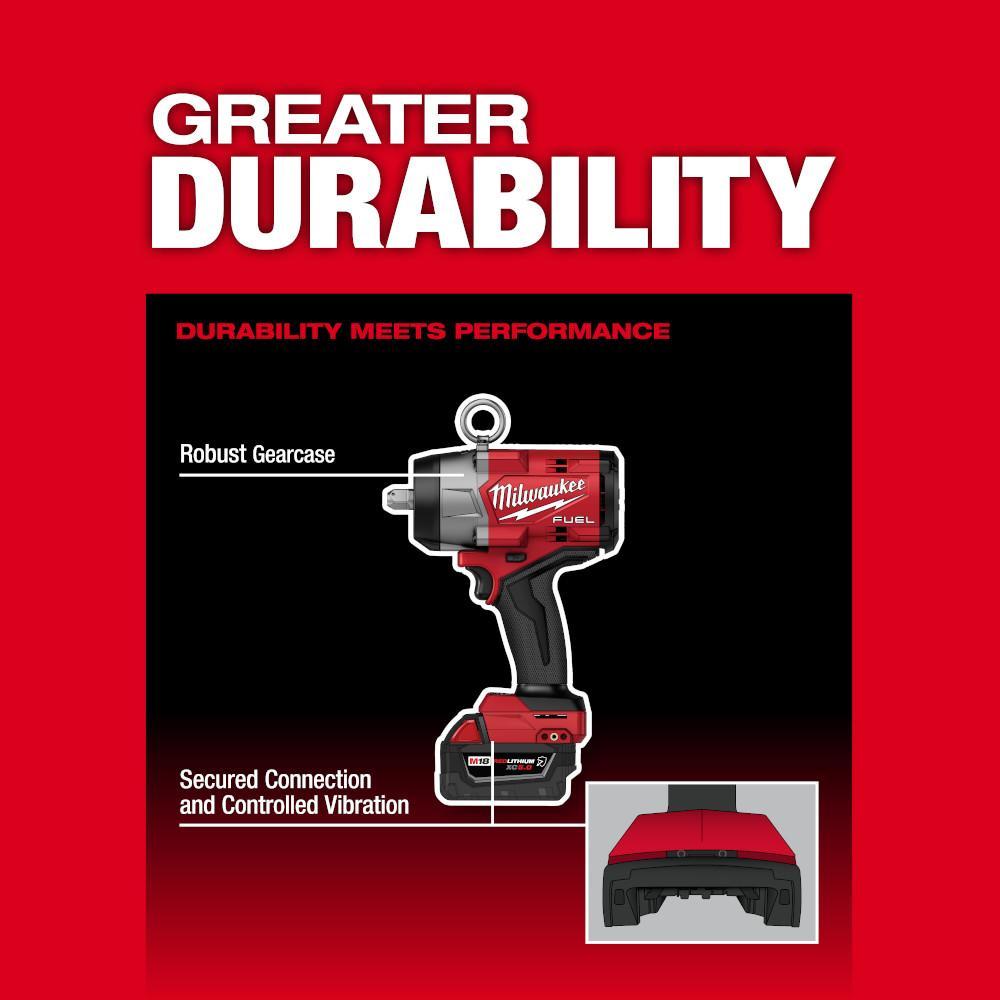

- Greater Durability - Durability Meets Performance
- Patented battery isolation system ensures a secure battery connection and controls vibration transmitted to the pack
- Tri-LEDs deliver high definition lighting to increase workspace visibility with less shadows
- Bolt removal mode provides maximum nut-busting torque to break fastener free, then slows to 750 RPM for more control when removing fasteners
- AUTO-SHUTOFF control prevents over tightening and increases productivity by applying no more than 50 ft-lbs of torque
- Pin Detent securely locks sockets in place, especially while working overhead
- REDLITHIUM batteries deliver more work per charge and more work over the life of the battery
- REDLINK PLUS Intelligence ensures maximum performance and protects from overloads, heating and over-discharge
- Compatible with all M18 batteries and chargers
-
Includes(1) M18 FUEL 1/2 in High Torque Impact Wrench w/ Pin Detent (2966-20), (1) Lanyard Loop
-
Package DescriptionEACH
-
Standards/ApprovalsUL Listed
-
Warranty5 Year Limited Warranty
-
UNSPSC27112713
-
Owners/User Manual
