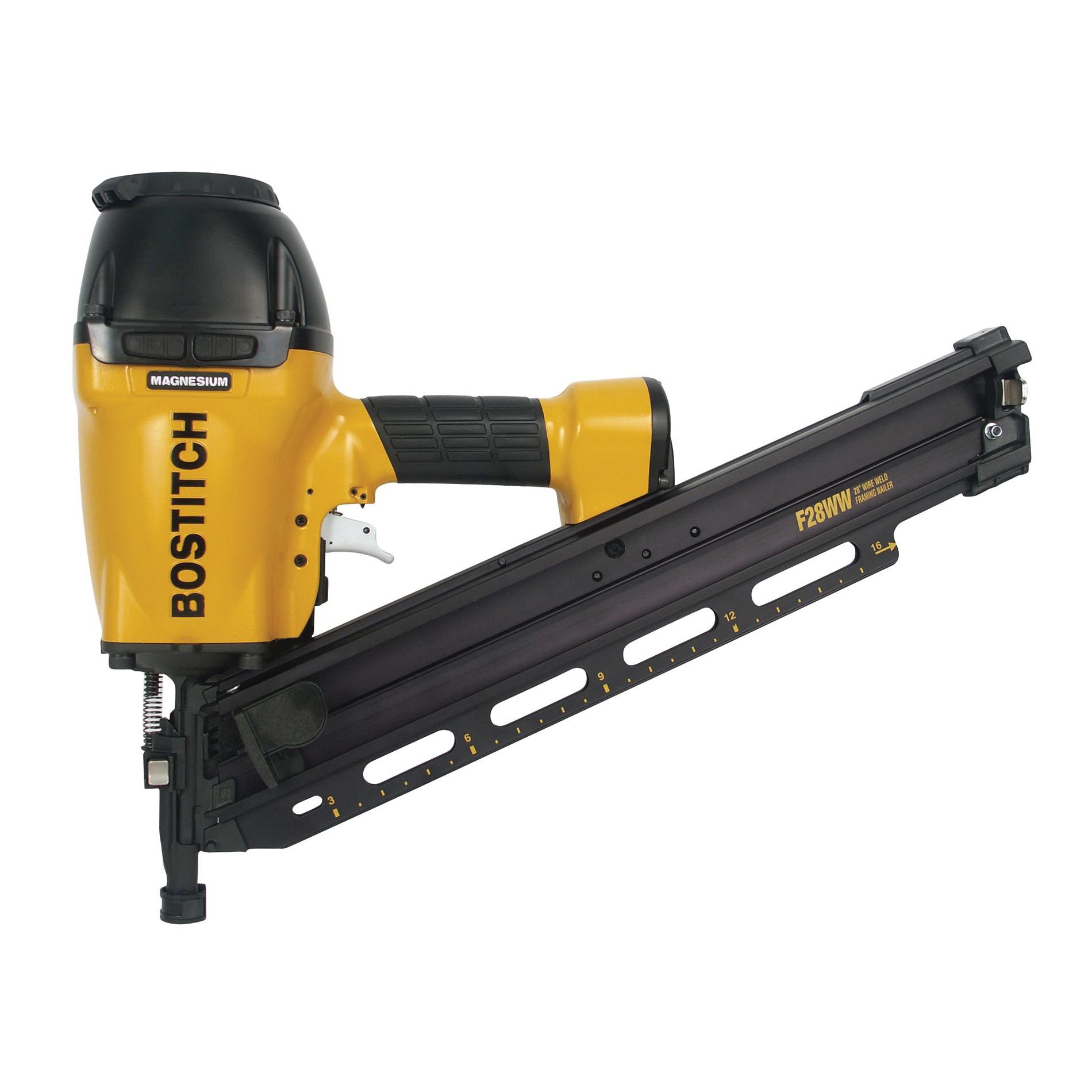

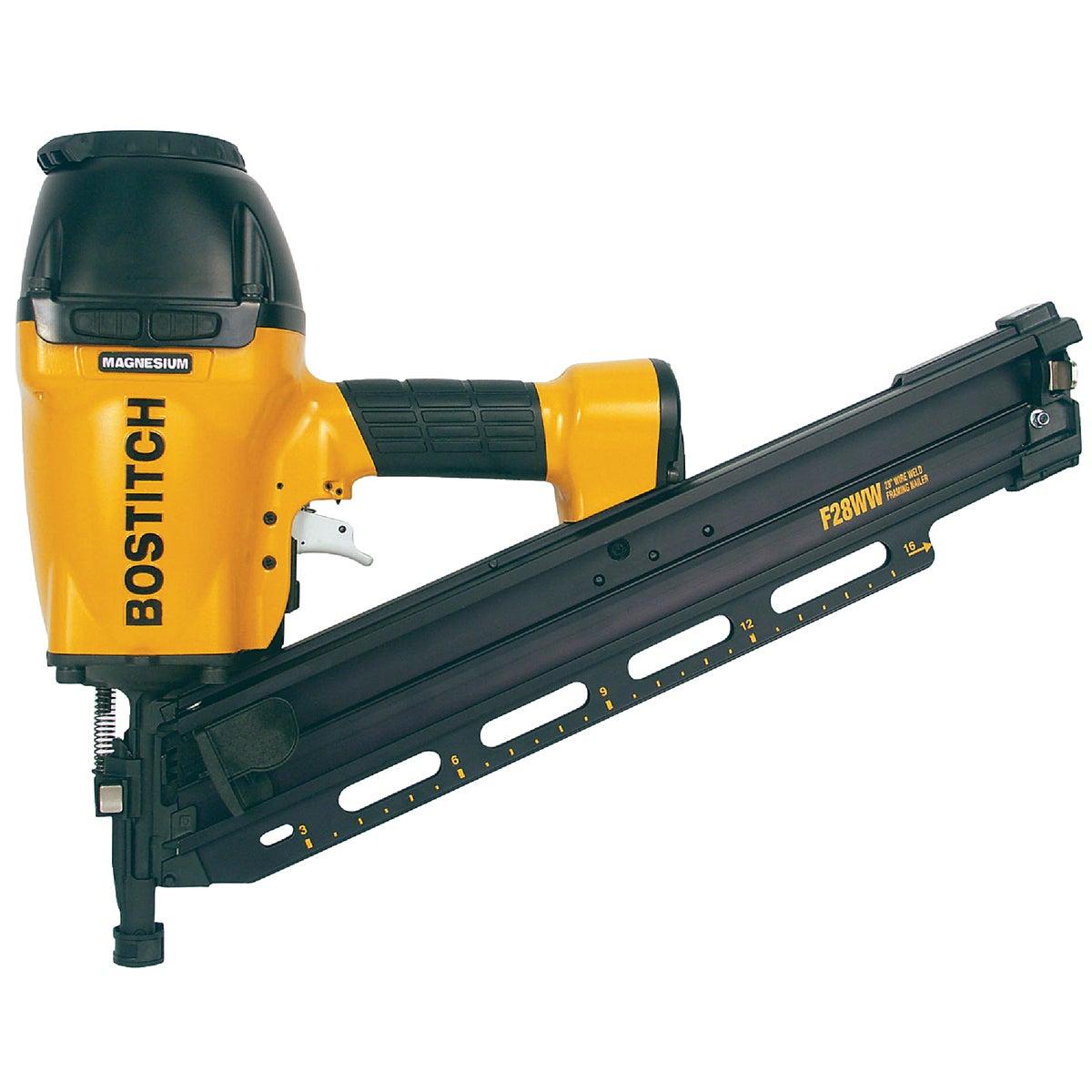

Bostitch® F28WW Angled Offset Round Framing Nailer, 2 to 3-1/2 in Fastener, Wire Collation, 100 Nails Magazine, 120 ps
Bostitch® F28WW Angled Offset Round Framing Nailer, 2 to 3-1/2 in Fastener, Wire Collation, 100 Nails Magazine, 120 ps
-
BrandBostitch®
-
UPC077914041214
-
Manufacturer Part NumberF28WW
-
CountryUSA
-
Fastener Size2 to 3-1/2 in
-
Magazine Capacity100 Nails
-
Magazine LoadingBottom Load
-
Tip TypeNon-Marring
-
Tool/KitBare Tool
-
Trigger TypeSequential Actuation
-
Collation Angle28 deg
-
Collation TypeWire
-
TypeAngled Offset Round
-
Handle TypePistol Grip
-
Air Flow Rate0.075 cfm
-
Air Inlet1/4 in Male
-
Air Pressure120 psi
-
Housing MaterialMagnesium
-

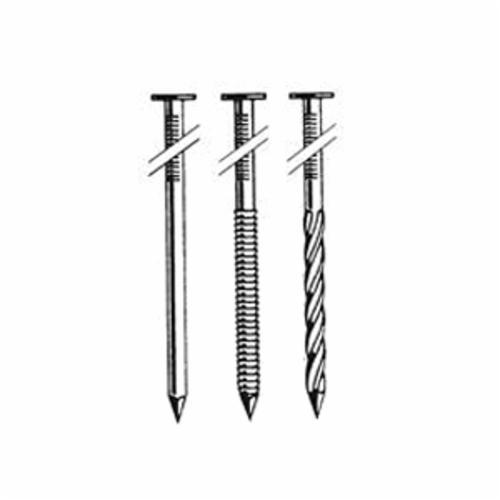

Shank Size0.113 to 0.131 in
-
Dimensions20 in L x 5-1/8 in W x 14-1/4 in H
-
Exhaust LocationAdjustable
- This 28 deg wire weld framing nailer is designed to drive nails into engineered lumber
- It is lightweight for easy management and you can control the depth of the nail with a push button
- Depend on this 28 deg wire weld framing nailer for efficiency
- Patented push button adjustable depth guide sets nail to desired depths quickly and conveniently
- Notched 16 in layout indicator on magazine helps achieve correct distance between studs in a matter of seconds
- Lightweight magnesium design for durability
- Adjustable rafter hook allows users to hang tool on rafters and joists
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 2UV87 |
| 395226 |
-
UNSPSC27131506
-
Package Description1/PK
-
Standards/ApprovalsANSI Specified
-
Warranty7 Years Limited
