Milwaukee® 5268-21 Reversing Corded Rotary Hammer Kit, 1-1/8 in SDS Max® Chuck, 5500 bpm, 1500 rpm No-Load, 4 in Max Core Bit Compatibility, 1-1/8 in Max Solid Bit Capacity, 12-1/2 in OAL

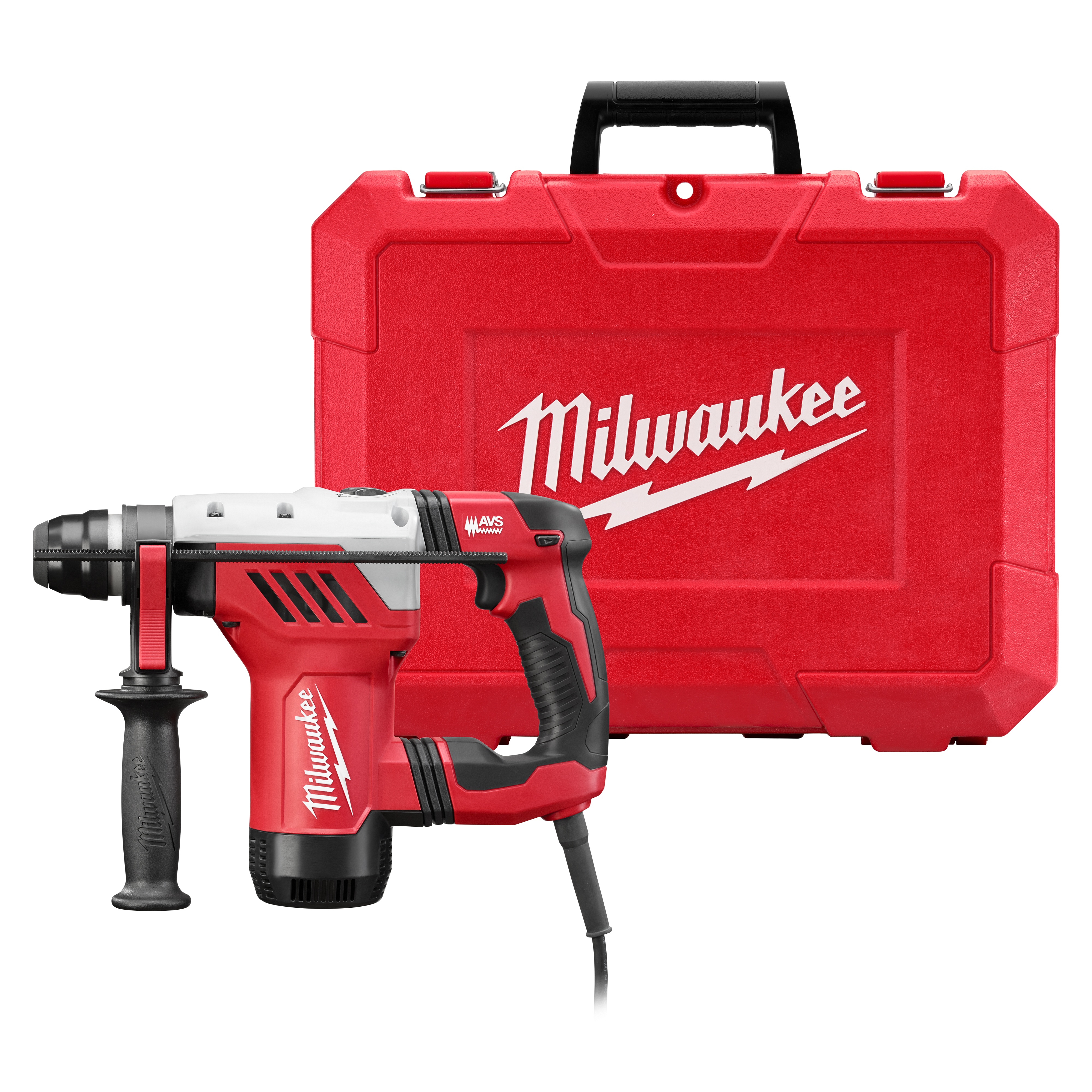

Get up to 85% faster drilling and 85% harding hitting while reducing vibration to only 10.6 m/s2. With a powerful 8 amp motor, this rotary hammer delivers 0-1, 500 RPM, 0-5,500 bpm and 3.6 ft-lbs of impact energy. This tool also has an all metal gear case and mechanical clutch to provide maximum durability. At only 12-1/2 in. inches long and 7-1/2 lbs, this tool makes for a very powerful and lightweight 1-1/8 in. 3-mode rotary hammer. The kit includes a side handle, depth rod and carrying case.
-
BrandMilwaukee®
-
UPC045242303663
-
Manufacturer Part Number5268-21
-
CountryUSA|Canada
-
Max Core Bit Compatibility4 in
-
Tool/KitKit
-
Chuck Size1-1/8 in
-
Maximum Solid Bit Capacity1-1/8 in
-
Chuck TypeSDS Max®
-
TypeReversing
-
ReversibleYes
-
Handle TypeD-Handle/Drop Motor/Side
-
Voltage Rating120 V AC
-
Control TypeVariable Speed Trigger Switch/Forward/Reverse Switch/Clutch
-
No-Load Speed1500 rpm
-
Amperage Rating8 A
-
Housing MaterialMetal/Plastic
-
Impact Energy3.6 ft-lb
-
Number of Speeds3
-
Blows per Minute5500 bpm
-
Overall Length12-1/2 in

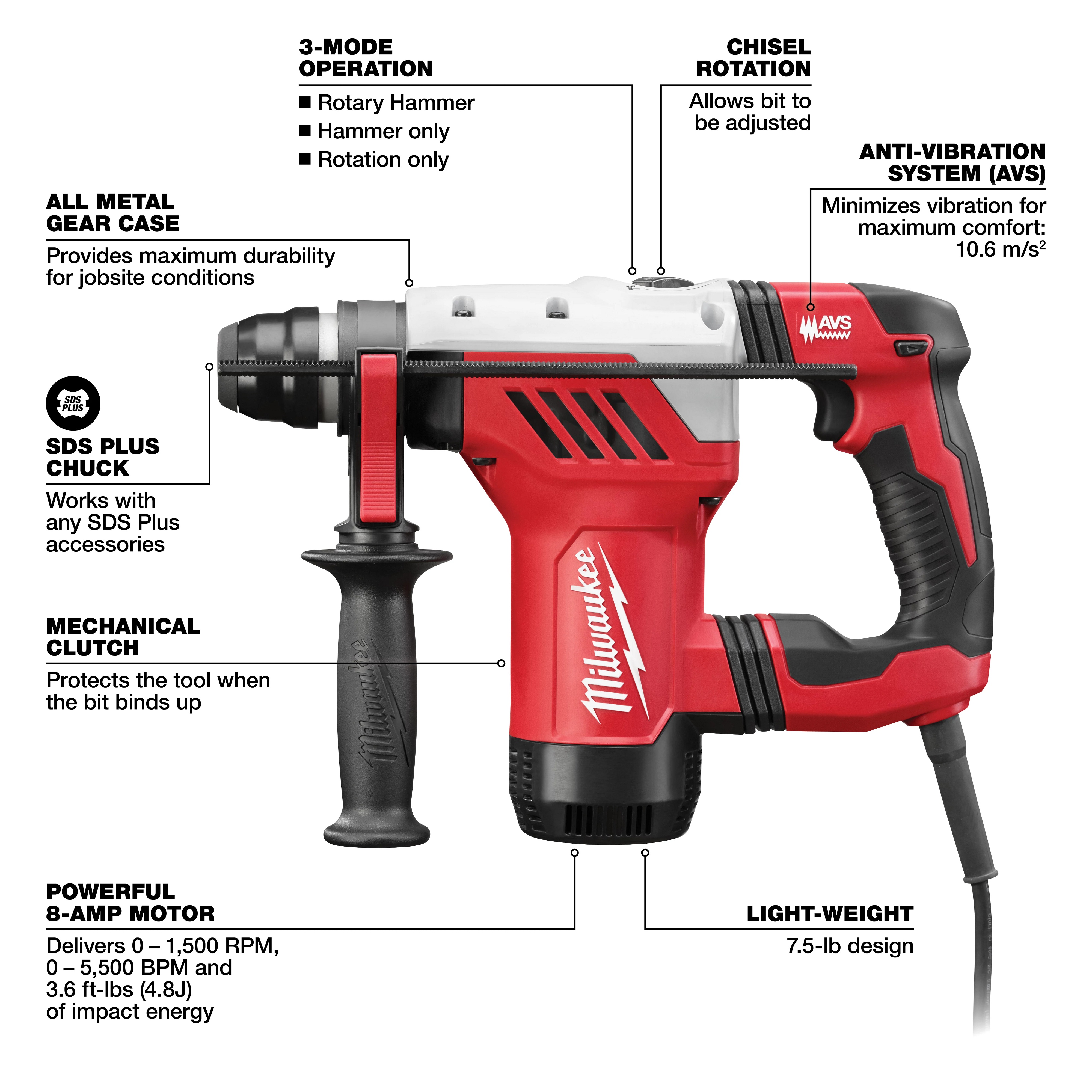

- All Metal Gear Case - Provides Maximum Durability for Jobsite Conditions
- AVS Anti-Vibration System - Minimizes vibration for maximum comfort
- Minimized Vibration to 10.6 m/s
- Powerful 8 Amotor - Delivers 0-1,500 RPM, 0-5,500 BPM and 3.6ft-lbs of impact energy
- Variable Position Chisel Stop - Allows material to be adjusted, regardless of orientation
- Mechanical clutch - Protects the motor when the bit binds
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 32NT30 |
| Fastenal | 2117395 |
| Ferguson | M526821 |
-
Alternative Part Number13926352
-
UNSPSC20111611
-
IDEA Index ID13926352
-
Package DescriptionEACH
-
Standards/ApprovalsCSA Certified|ETL Listed|UL Listed
-
Warranty5 Year Limited Warranty
-
