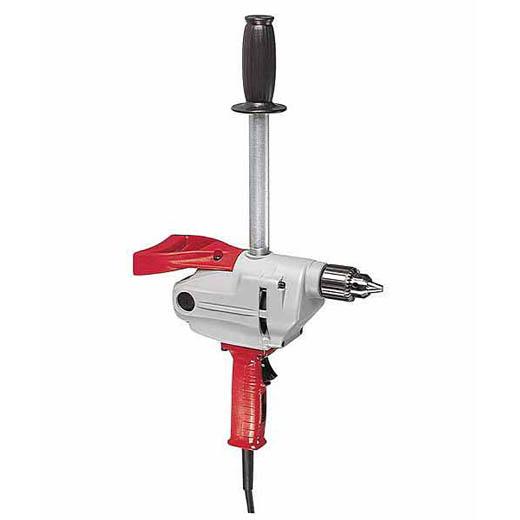

Milwaukee® 1610-1 Compact Grounded Electric Drill, 1/2 in Keyed Chuck, 120 VAC, 650 rpm Speed, 12-1/4 in OAL
This compact specialty drill packs big power. The 1/2 in compact drill has the power and versatility to handle large hole drilling and material mixing applications. Its 650 rpm operating speed optimizes productivity in general purpose use. Built for two-handed operation, the drill features extra long handles for added leverage and control. You'll get quiet performance from the heat treated, helical cut gears.
-
BrandMilwaukee®
-
UPC045242001552
-
Manufacturer Part Number1610-1
-
CountryUSA
-
Tool/KitKit
-
Chuck Size1/2 in
-
Chuck TypeKeyed
-
Torque Rating612 in-lb
-
ColorBlack/Gray/Red
-
TypeCompact Grounded
-
Handle TypeD-Handle
-
Voltage Rating120 V AC
-
Control TypeVariable Speed Trigger Switch
-
Amperage Rating7 A
-
Housing MaterialMetal
-
Speed650 rpm
-
Overall Length12-1/4 in
- Powerful 7 A motor - delivers up to 650 rpm with reverse
- Torque offers 1/2 in capacity in steel
- Heat treated gears are helical-cut for quiet performance
- 8 ft 2-wire fixed rubber cord, durable construction for longer tool life
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 6Z042 |
-
Alternative Part Number8563763
-
UNSPSC27112703
-
IDEA Index ID8563763
-
Package Description1/PK
-
Standards/ApprovalsARRA Compliant|Buy American Act Compliant|CSA Certified|UL Listed
-
Warranty5 years
-
Owners/User Manual
-
Full Engineering Drawing
