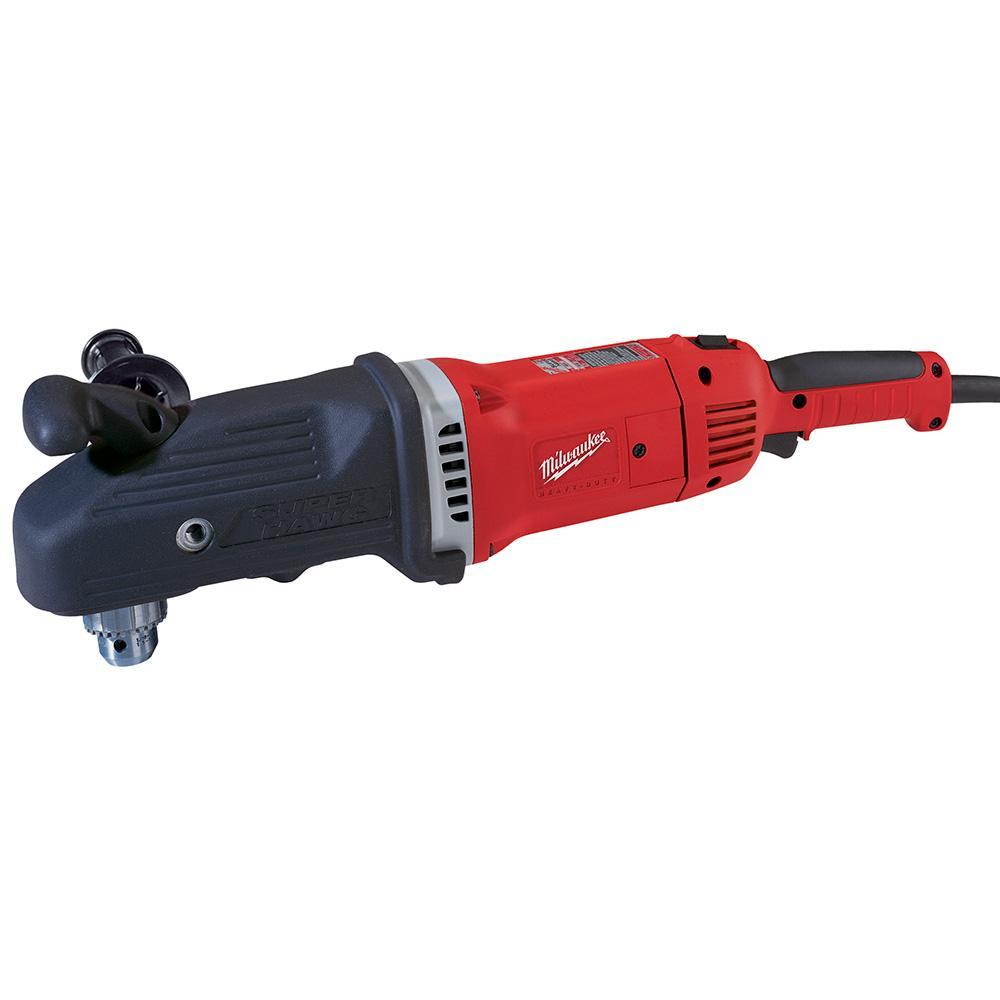

Milwaukee 120-VOLT 1/2" RIGHT ANGLE DRILLS MWK 1680-20

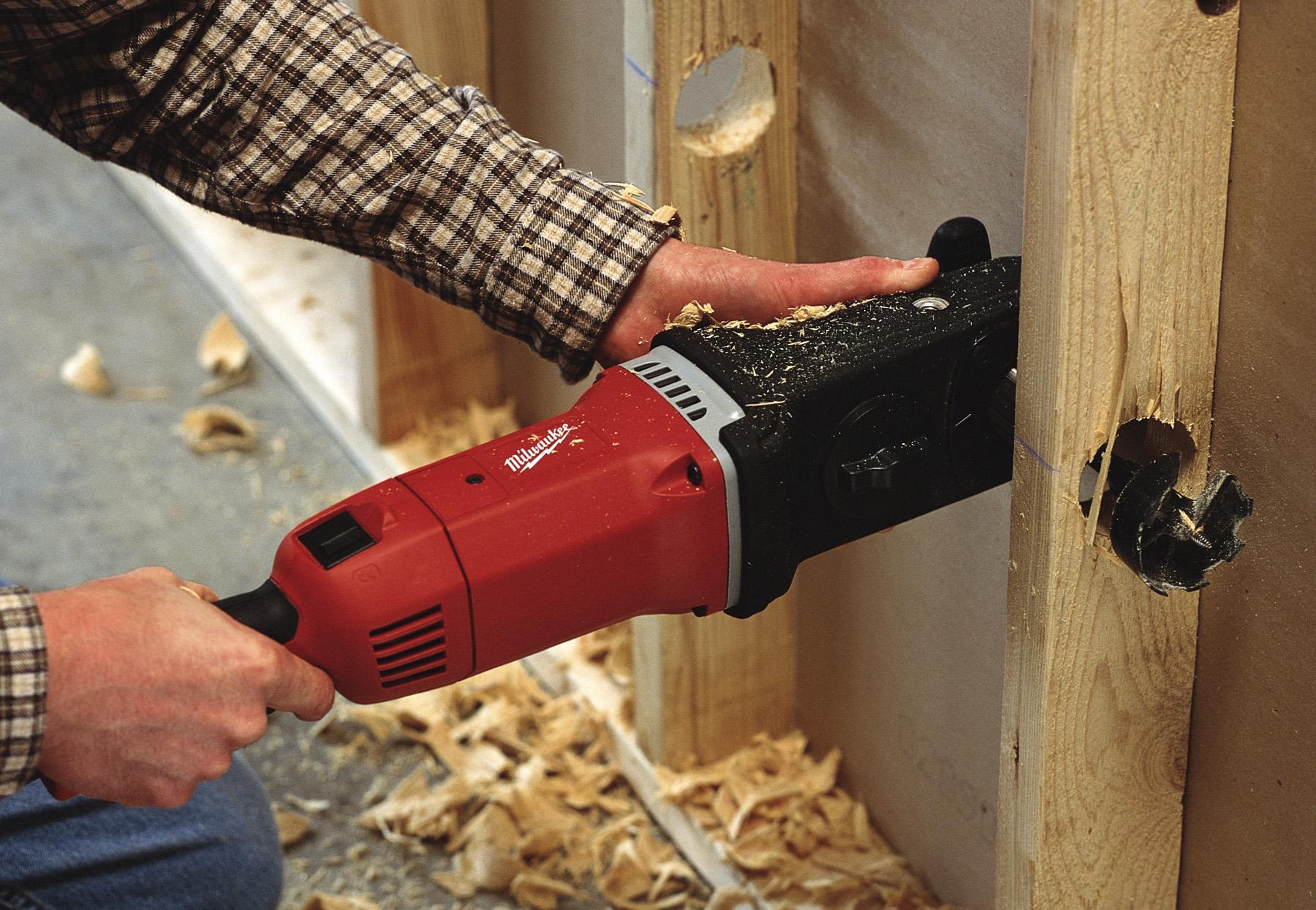

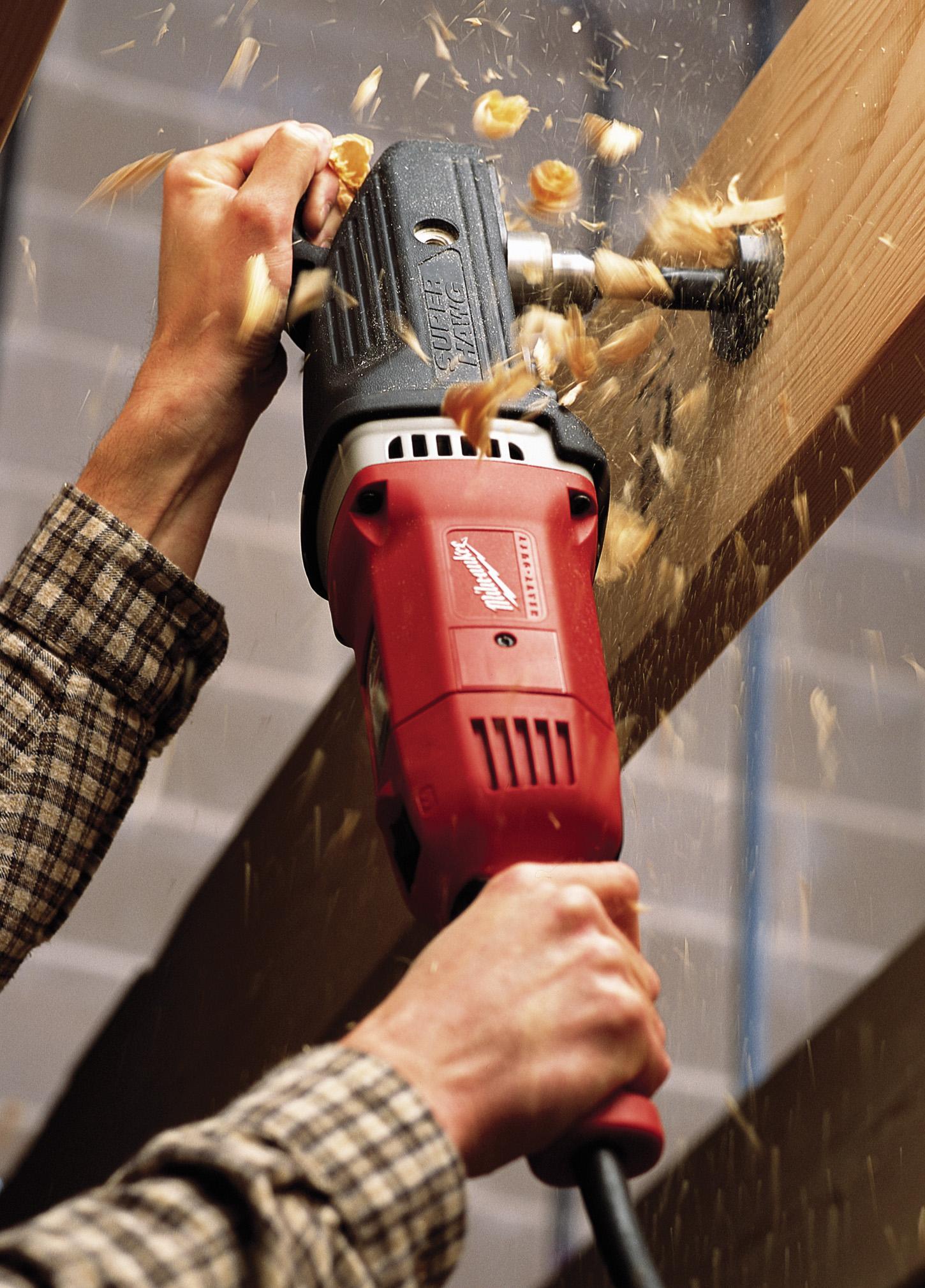

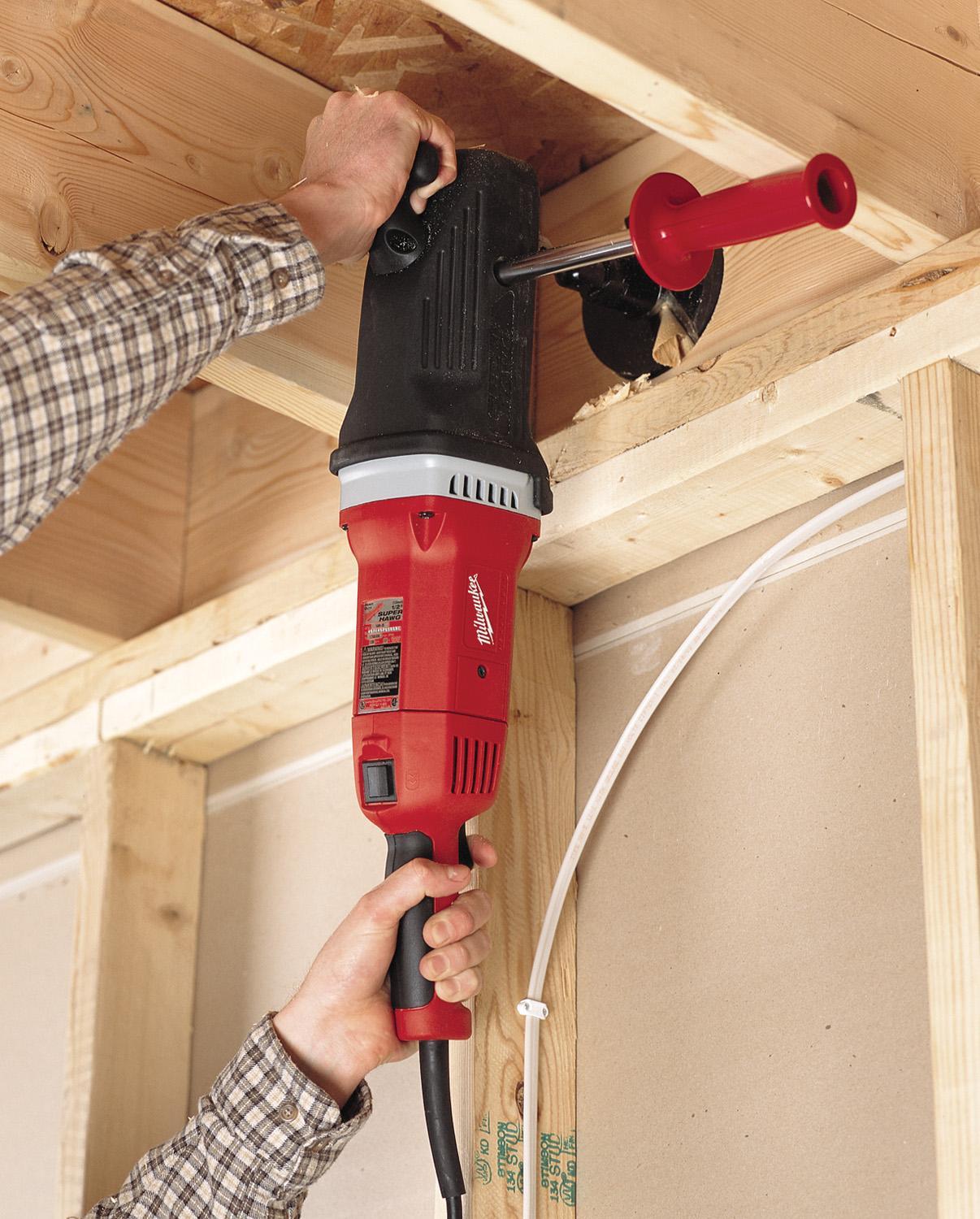

The 1/2 in. Super Hawg has power and speed for drilling holes of all sizes in wood frame construction. The 13 amp motor has two operating speeds of 1750 and 450 RPM with a clutch in the low gear range. Speed shifting is easy. The comfort grip Roto-Lok handle features 3 positions with 90 degree left-right rotation for maximum operator comfort for all applications.
-
BrandMilwaukee®
-
UPC045242001972
-
Manufacturer Part Number1680-20
-
CountryUSA|Canada
-
Tool/KitKit
-
Chuck Size1/2 in
-
Chuck TypeKeyed
-
Torque Rating643 in-lb
-
ColorBlack/Gray/Red
-
TypeGrounded
-
Handle TypeIn-Line
-
Voltage Rating120 V AC
-
Control TypeVariable Speed Trigger Switch
-
Amperage Rating13 A
-
Housing MaterialMetal
-
Speed450 to 1750 rpm
-
Overall Length22 in
- Powerful 13.0 Amotor, Delivers 450 RPM- 1,750 RPM with a clutch in low gear
- Reinforced nylon resin casing, Provides durability and less weight than metal with greater heat dissipation and resistance to chemicals
- Easy turn gear shift knob
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 3TY43 |
| Fastenal | 99453608 |
| Ferguson | M168020 |
-
Alternative Part Number8563913
-
UNSPSC27112703
-
IDEA Index ID8563913
-
Package DescriptionEACH
-
Standards/ApprovalsCSA Certified|UL Listed
-
Warranty5 years
-
Owners/User Manual
-
Full Engineering Drawing
